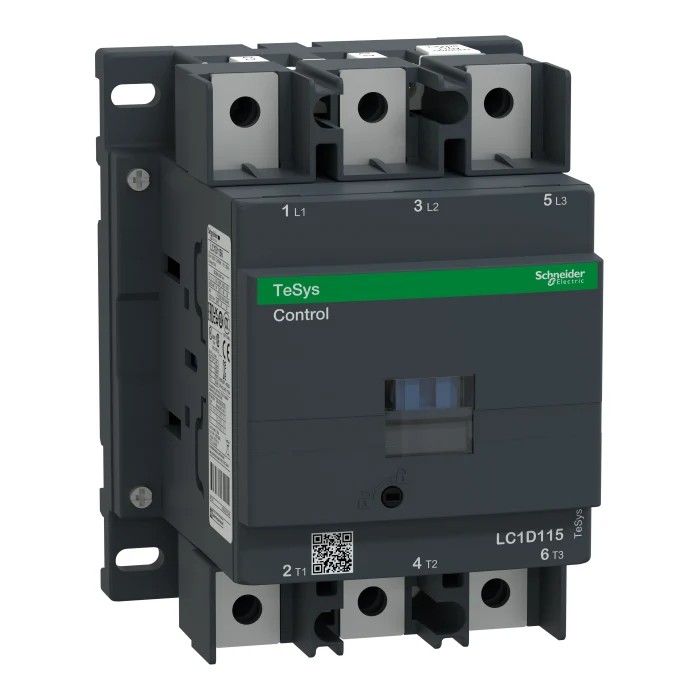

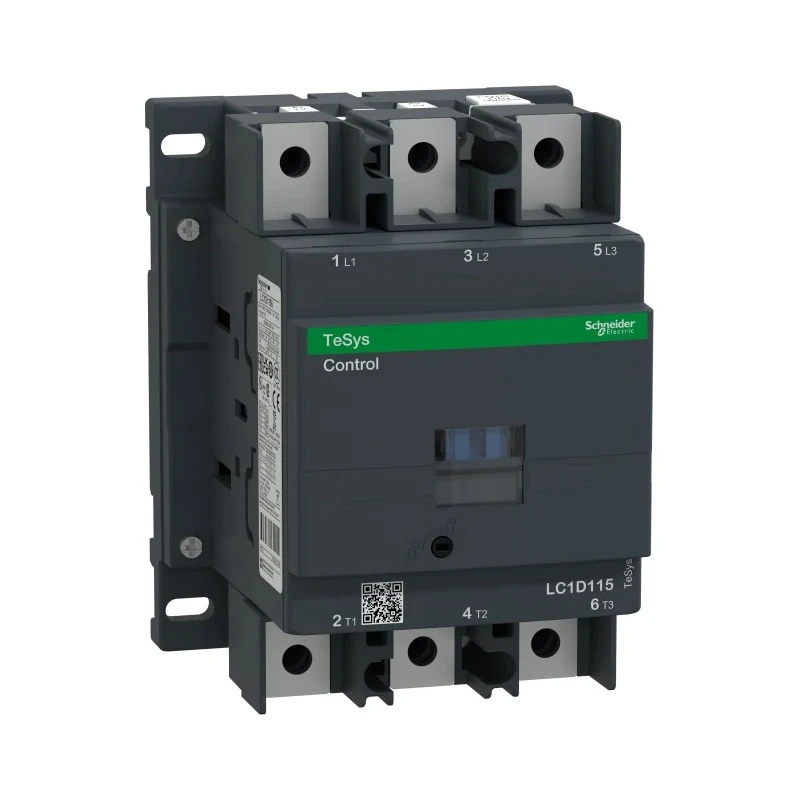

Schneider Electric TeSys D Contactor 3-Pole 115 A 30 kW 110V AC Coil LC1D1156F5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1156F5 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 poles and 3 normally open contacts for reliable circuit control.
- DIN rail mount type for easy installation in control panels.
- Includes 2 auxiliary contacts with 1 normally open and 1 normally closed configuration.
- Screw connections with IP20 finger-safe terminals and international terminal markings ensure safety and convenience.
- Supports operational temperatures from -40°C to 60°C, suitable for varied industrial environments.
- Designed according to IEC 61095 standards, ensuring quality and compliance.
- Applications include motor control and resistive loads in industrial and automation systems.
- Offers quick and simple setup with built-in auxiliary contacts and flexible control circuit options.
Product Description
Schneider Electric LC1D1156F5 TeSys D Contactor is engineered for high reliability in motor control and resistive load applications, operating at 110V AC coil voltage with a 3-pole, 115 A contact current capacity and 30 kW power rating. This contactor is designed to be DIN rail mounted, facilitating integration into control systems for industrial automation.
The device features 3 normally open contacts and 2 auxiliary contacts configured as 1 normally open and 1 normally closed, allowing expanded switching capability. Its lug ring terminal type and IP20 finger-safe screw connections with both North American and International terminal markings enhance installation safety and versatility.
Operational temperature range from -40°C to 60°C ensures suitability across diverse industrial environments. Compliance with IEC 61095 guarantees adherence to international quality standards.
TeSys D contactors utilize linear translation movement providing a double break pole type for superior performance and longevity. The coil incorporates a bidirectional peak limiting diode suppressor that protects against voltage spikes, improving coil durability and reliability over time.
This contactor series supports various applications including motor control, resistive loads, conveyor belt drives, pumps, compressors, mixers, escalators, air conditioning units, and other industrial machinery. The built-in auxiliary contacts and flexible control circuits allow easy customization and accessory installation for tailored operation.
Equipped with 3 poles and 3 normally open contacts for reliable circuit control. DIN rail mount type for easy installation in control panels. Includes 2 auxiliary contacts with 1 normally open and 1 normally closed configuration.
Screw connections with IP20 finger-safe terminals and international terminal markings ensure safety and convenience. Supports operational temperatures from -40°C to 60°C, suitable for varied industrial environments. Designed according to IEC 61095 standards, ensuring quality and compliance.
Applications include motor control and resistive loads in industrial and automation systems. Offers quick and simple setup with built-in auxiliary contacts and flexible control circuit options. Bidirectional peak limiting diode suppressor protects the coil for enhanced durability.
Explore a wide range of Contactors and control gear at EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 30 kW, making it suitable for motor control and resistive load applications.
The contactor has a contact current capacity of 115 A, allowing it to handle significant electrical loads.
It supports an operational temperature range from -40°C to 60°C, making it suitable for diverse industrial environments.
This contactor is equipped with 3 poles, providing reliable circuit control for various applications.
It is designed for DIN rail mounting, facilitating easy installation in control panels.
The coil voltage for this model is 110V AC, which is standard for many industrial applications.
It includes 2 auxiliary contacts, configured as 1 normally open and 1 normally closed, allowing for expanded switching capabilities.
This contactor is designed according to IEC 61095 standards, ensuring quality and compliance with international regulations.
It features lug ring terminals with IP20 finger-safe screw connections, enhancing installation safety and convenience.
This contactor is suitable for motor control, resistive loads, conveyor belt drives, pumps, compressors, and other industrial machinery.
The dimensions of this model are 158 mm in length, 136 mm in depth, and 120 mm in width.
It incorporates a bidirectional peak limiting diode suppressor that protects against voltage spikes, enhancing coil durability.
