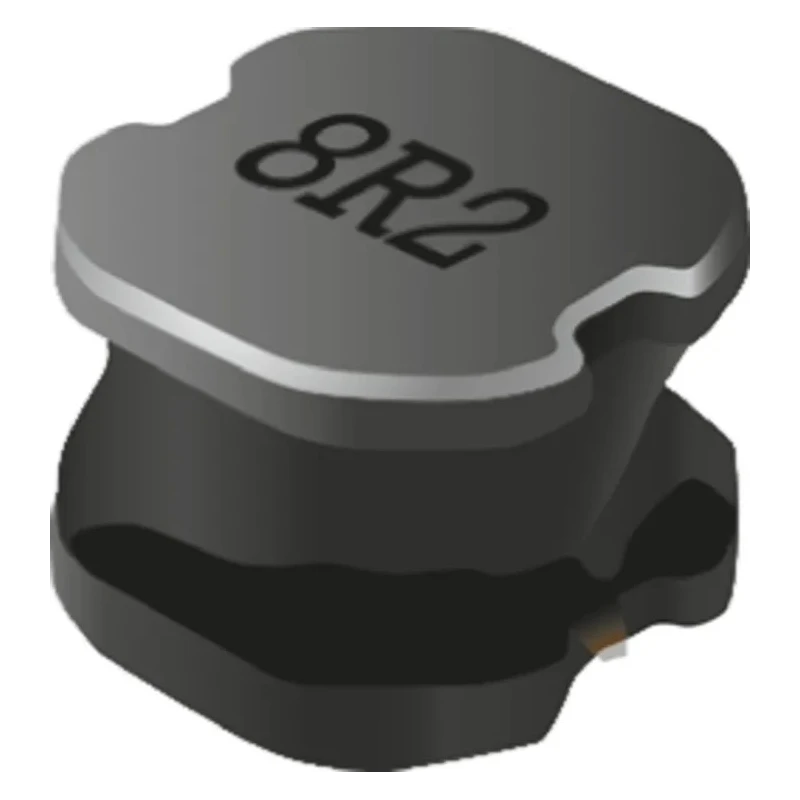

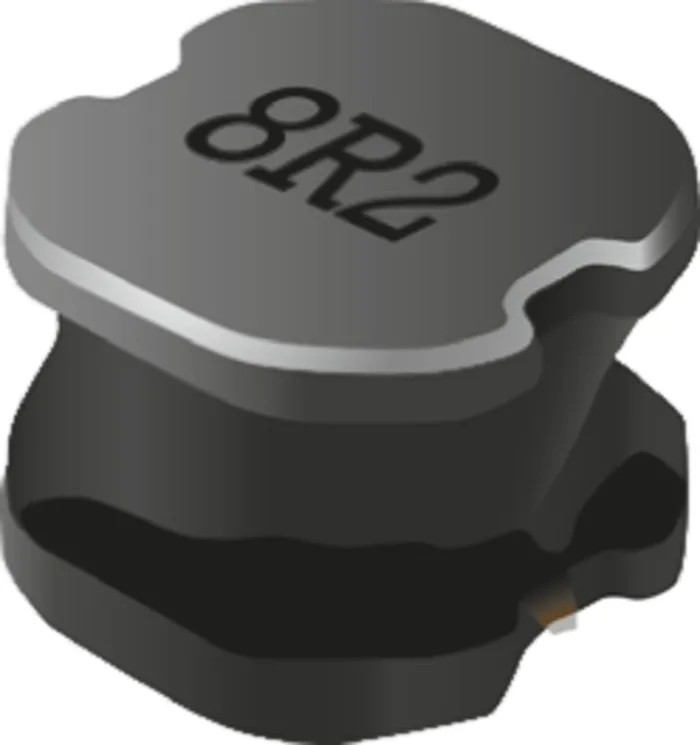

Bourns Shielded Wirewound Surface Mount Inductor 100 μH ±20% 700 mA Ferrite Core SRN6045
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 4.5mm |
| Length | 6mm |
| Model | SRN6045 |
| Depth | 6mm |
| Packaging | Reel |
| Series | SRN6045 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 6045 |
| Maximum DC Current | 700mA |
| Maximum DC Resistance | 494mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5MHz |
| Minimum Quality Factor | 22 |
| Inductor Construction | Semi Shielded |
| Automotive systems | Driver assistant, information, lighting, entertainment |
Key Features
- Semi shielded wirewound construction ensures stable performance.
- Ferrite core provides efficient inductance up to 100 μH.
- Suitable for surface mount applications using solder termination.
- Maximum operating temperature up to 125°C for reliable operation.
- Features low DC resistance of 494 mΩ to reduce power loss.
- Designed to operate between -40°C and 125°C environment temperature range.
- Capable of handling a maximum self-resonant frequency of 5 MHz.
- Packaged in 6045 case dimensions with a reel packaging for automated assembly.
Product Description
Bourns SRN6045 Shielded Wirewound Surface Mount Inductor offers a 100 μH inductance with a ±20 % tolerance rating, constructed with a ferrite core in a semi-shielded wirewound design. This component supports a maximum DC current of 700 mA and operates reliably in temperatures ranging between -40°C and 125°C, making it suitable for demanding industrial and automotive applications.
The inductor comes in a 6045 surface mount package, measuring 6 mm in length, 4.5 mm in height, and 6 mm in depth, facilitating compact PCB design. Its solder termination style enables efficient surface mounting. With a maximum DC resistance of 494 mΩ, it ensures low power loss during operation.
This inductor has a maximum self-resonant frequency of 5 MHz and a minimum quality factor of 22, enabling effective filtering and power management in electronic circuits. It is RoHS compliant and molded for durability and stability in various environments.
Typical applications include automotive systems such as driver assistance, information displays, lighting, and entertainment systems. It is also suitable for DC-DC converters, power supplies, televisions, and digital video equipment, demonstrating versatility across electronic and industrial use cases.
Semi shielded wirewound construction ensures stable performance. Ferrite core provides efficient inductance up to 100 μH. Suitable for surface mount applications using solder termination. Maximum operating temperature up to 125°C for reliable operation.
Features low DC resistance of 494 mΩ to reduce power loss. Designed to operate between -40°C and 125°C environment temperature range. Capable of handling a maximum self-resonant frequency of 5 MHz. Packaged in 6045 case dimensions with a reel packaging for automated assembly.
Complies with RoHS standards ensuring environmental safety. Explore Bourns quality inductors and other electronic components at EnvMart for your industrial and automotive electronics needs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRN6045 inductor has an inductance value of 100 μH with a tolerance of ±20%.
This model can handle a maximum DC current of 700 mA.
The inductor is packaged in a 6045 case, measuring 6 mm in length, 4.5 mm in height, and 6 mm in depth.
It operates reliably in an environment temperature range of -40°C to 125°C.
The maximum self-resonant frequency of this inductor is 5 MHz.
This model uses a solder termination style, making it suitable for surface mount applications.
The maximum DC resistance is 494 mΩ, which helps reduce power loss during operation.
The inductor is constructed with a ferrite core, which provides efficient inductance.
The minimum quality factor for the SRN6045 is 22, enabling effective filtering in electronic circuits.
Typical applications include automotive systems, DC-DC converters, power supplies, televisions, and digital video equipment.
Yes, it is RoHS compliant, ensuring environmental safety.
The inductor is packaged in a reel, which facilitates automated assembly.
