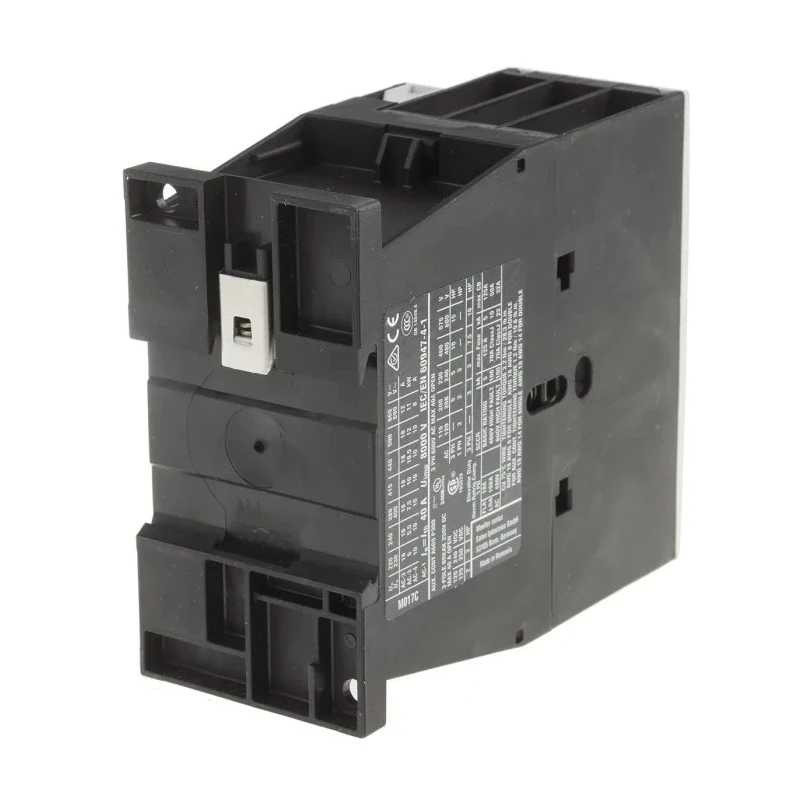

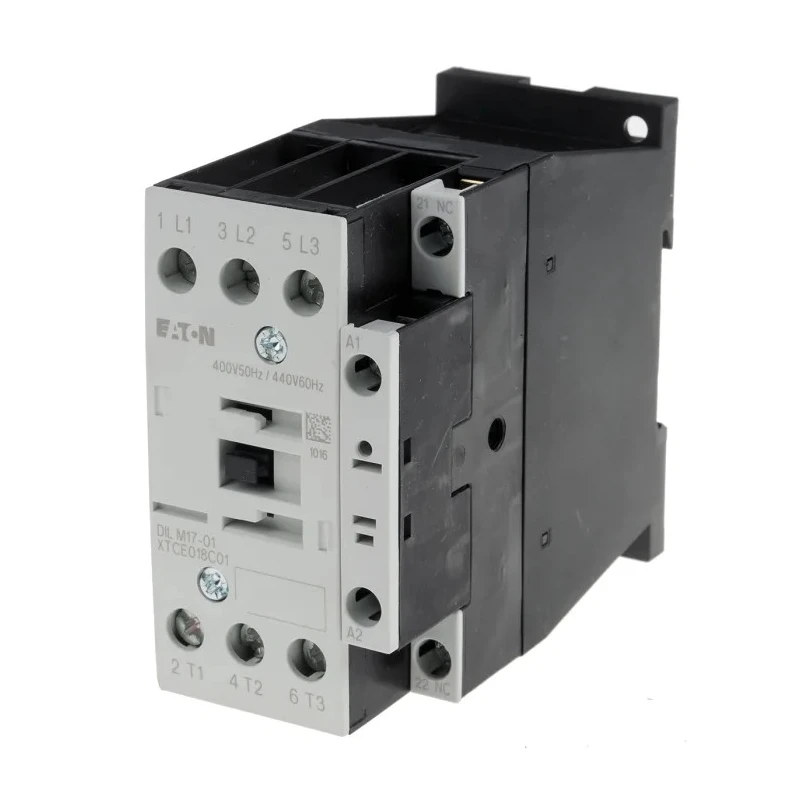

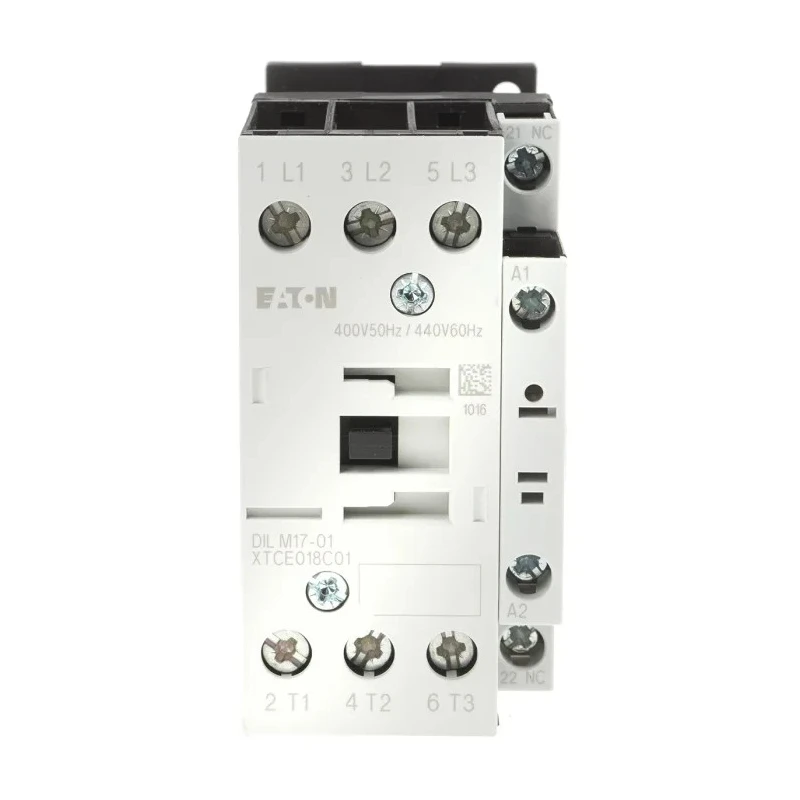

Eaton Contactor 3-Pole 17A 7.5kW 400V AC Coil DILM17-01(400V50HZ,440V60HZ) 277038 277038 DILM17-01(400V50HZ,440V60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | 277038 DILM17-01(400V50HZ,440V60HZ) |
| Depth | 138mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | DILM |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN 60947 |
| Contact Voltage | 400V ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 17A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 40A |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
| Cooper Bussmann Panel Mount Fuse ClipBrand | Cooper Bussmann |
Key Features
- This contactor features a 3-pole configuration with a 400V AC coil voltage.
- Rated for a contact current of 17 amperes and power rating of 7.5 kilowatts.
- Designed for DIN rail mounting with screw-type terminals.
- Supports motor control functions with 3 normally open contacts and 1 auxiliary normally closed contact.
- Operates effectively within a temperature range of -25°C to 40°C.
- Constructed to meet EN 60947 standards ensuring safety and quality.
- Compact dimensions allow easy integration into electrical panels.
- Compatible with advanced automation systems including SmartWire-DT®.
Product Description
Eaton 277038 DILM17-01(400V50HZ,440V60HZ) Contactor with 3 poles and a 400V AC coil voltage is an industrial-grade device engineered for motor control and resistive load applications. Its robust design supports operational currents up to 40A and a power rating of 7.5 kW, making it ideal for demanding manufacturing environments.
The contactor integrates 3 normally open (NO) main contacts and 1 normally closed (NC) auxiliary contact, enabling precise control and reliable switching. The screw terminal connections and DIN rail mount facilitate quick installation and maintenance in various switchgear setups.
Designed for optimal performance, it meets international standards EN 60947, ensuring compliance with safety and reliability requirements. The device operates within a temperature range of -25°C to 40°C, suitable for a broad range of industrial environments.
Its physical dimensions - length 85mm, width 45mm, and depth 138mm - make it compact for easy integration into electrical panels and control systems. Eaton’s DILM series is known for energy-efficient operation with minimized heat dissipation, and compatibility with the SmartWire-DT® communication system for enhanced automation.
Typical applications include factory automation, railway transportation, complex electrical systems, electric motor control, lighting, and mechanical engineering sectors. This contactor is built to last with high operational reliability and interference immunity, supporting continuous and frequent switching cycles.
This contactor features a 3-pole configuration with a 400V AC coil voltage. Rated for a contact current of 17 amperes and power rating of 7.5 kilowatts. Designed for DIN rail mounting with screw-type terminals. Supports motor control functions with 3 normally open contacts and 1 auxiliary normally closed contact.
Operates effectively within a temperature range of -25°C to 40°C. Constructed to meet EN 60947 standards ensuring safety and quality. Compact dimensions allow easy integration into electrical panels. Compatible with advanced automation systems including SmartWire-DT®.
Explore Eaton Contactors and automation solutions on EnvMart for high-quality and durable industrial components designed to meet rigorous operational demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 7.5 kilowatts.
It has a contact current rating of 17 amperes.
The coil voltage for this contactor is 400V AC.
The dimensions are 85mm in length, 45mm in width, and 138mm in depth.
It operates effectively within a temperature range of -25°C to 40°C.
This contactor features a 3-pole configuration.
It is designed for DIN rail mounting with screw-type terminals.
It includes 1 normally closed (NC) auxiliary contact.
It is constructed to meet EN 60947 standards.
It is suitable for motor control and resistive load applications.
The operational current rating is up to 40A.
Yes, it is compatible with advanced automation systems including SmartWire-DT®.
