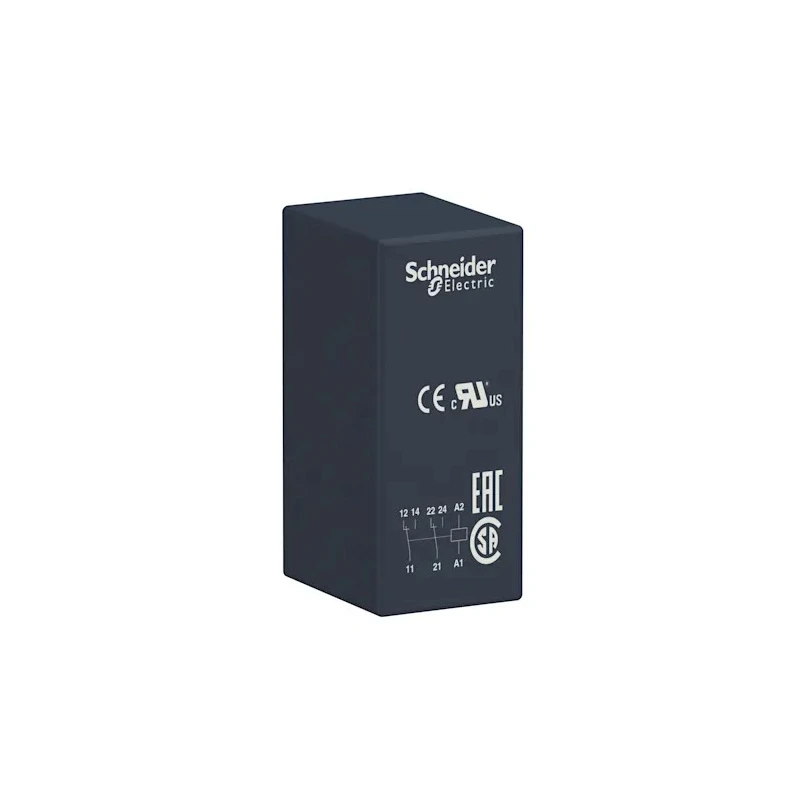

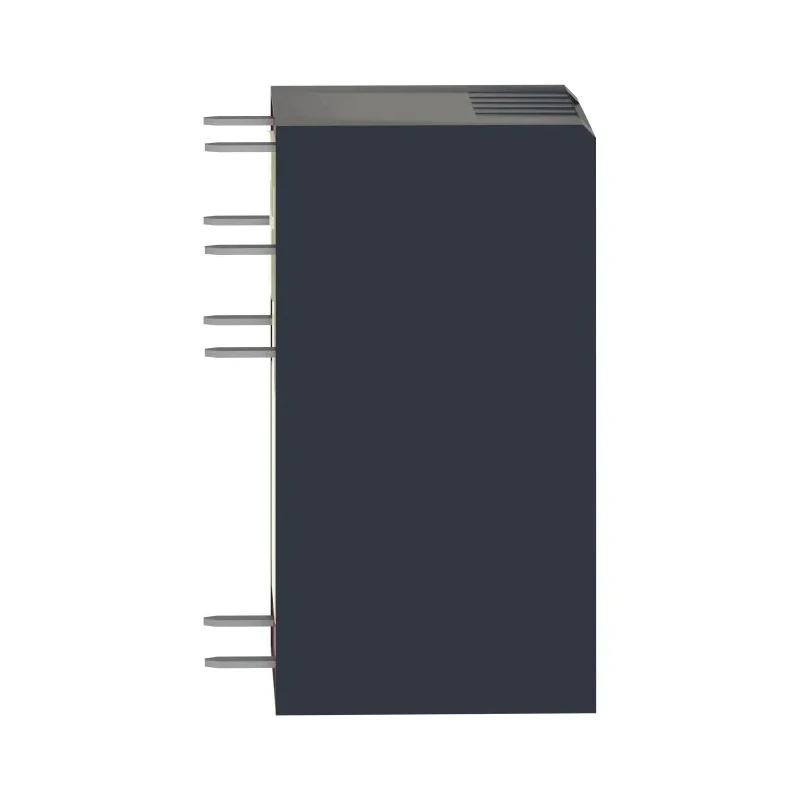

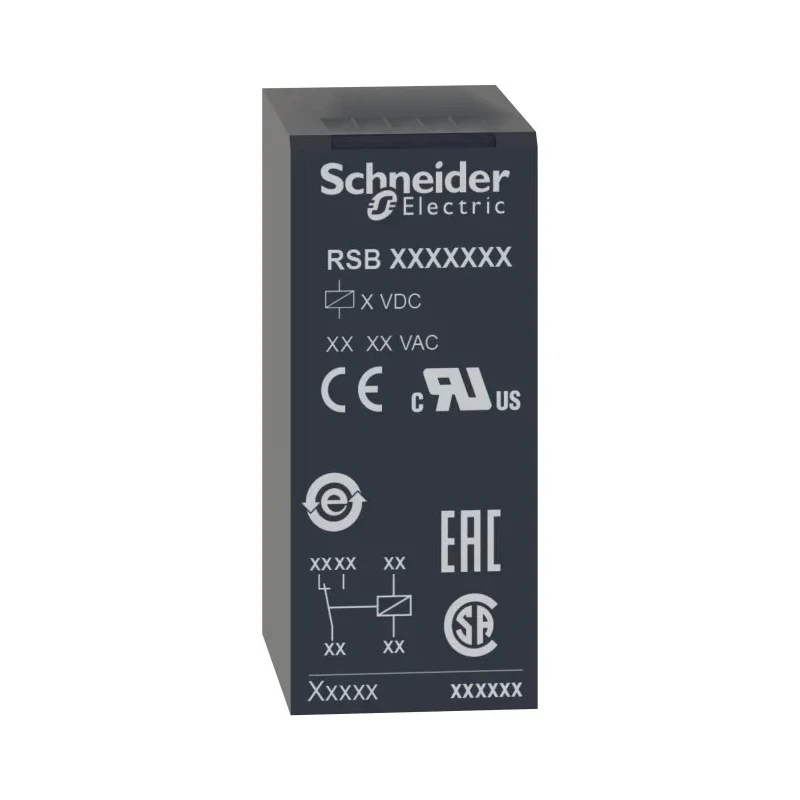

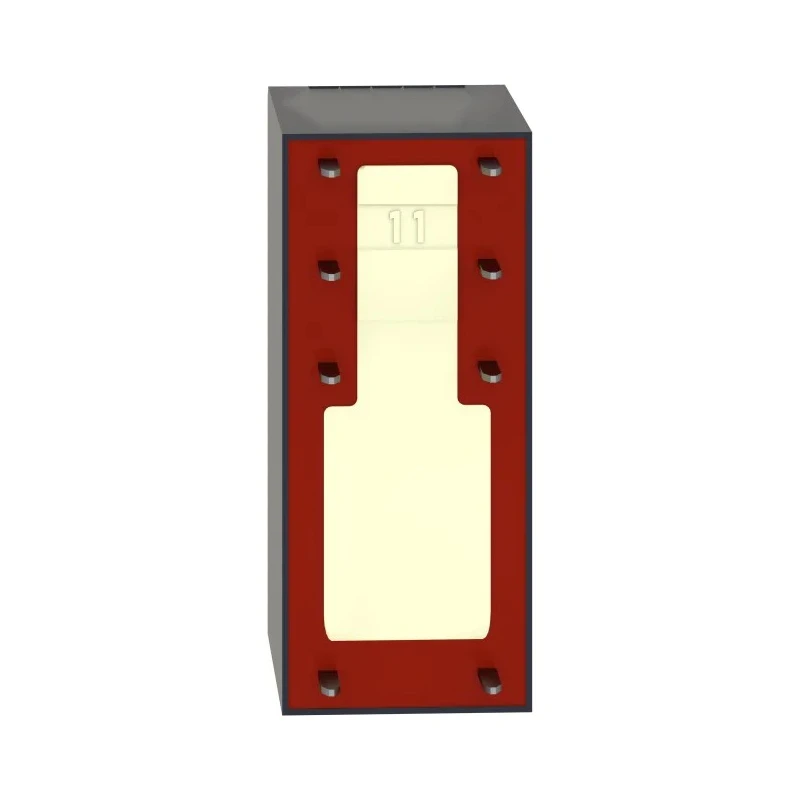

Schneider Electric PCB Power Relay 48V DC Coil 8A DPDT Harmony Relay RSB Series RSB2A080ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 15.7mm |
| Length | 29mm |
| Model | RSB2A080ED |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | Harmony Relay RSB |
| Contact Configuration | DPDT |
| Switching Current | 8A |
| Terminal type | Through Hole |
| Standards/Approvals | UL, EN, CSA |
| Coil Voltage | 48V dc |
| Better World Claim | Designed for Disassembly |
Key Features
- The relay supports a coil voltage of 48V DC for control circuits.
- Double pole double throw (DPDT) contacts provide versatile switching options.
- Switching current capability of 8A suitable for moderate power relay needs.
- Mount type is PCB with easy through-hole terminals for stable mounting.
- This relay belongs to the Harmony Relay RSB series known for quality and durability.
- Physical dimensions include length 29mm, width 12.5mm and height 15.7mm for compact PCB integration.
- The relay is IP40 rated with a transparent cover for visual inspection of contact status.
- Silver alloy contact material ensures reliable conductivity and longevity.
Product Description
Schneider Electric RSB2A080ED PCB Power Relay is a robust and compact relay designed for printed circuit boards requiring reliable switching with moderate current capacity. Featuring a 48V DC coil, this Harmony Relay RSB series product offers a double pole double throw (DPDT) contact configuration supporting an 8A switching current. The device is engineered for through-hole PCB mounting, enabling secure mechanical and electrical connections.
This relay aids in reducing enclosure size while enhancing machine reliability. Its plug-in design allows ease of installation and maintenance. The transparent protective cover rated at IP40 permits visual verification of contact condition by operators.
Constructed with silver alloy contacts, the relay ensures strong conductivity and long-term durability. Schneider Electric's rigorous compliance with international safety standards including UL, EN, and CSA supports its application in industrial automation, electrical control panels, signaling, and HVAC systems. The operating temperature range from -40 to 70 degrees Celsius allows it to function reliably in varying industrial environments.
The physical dimensions are compact with length of 29mm, width of 12.5mm, and height of 15.7mm, making it suitable for dense PCB layouts. This product aligns with Schneider Electric's Better World initiative, designed for disassembly to promote sustainability and ease of recycling.
Supports coil voltage of 48V DC providing effective control circuit operation. DPDT contact configuration enables flexible switching scenarios. Switching current rated at 8A meets typical power relay demands. Through-hole PCB mounting for secure installation.
Transparent IP40 cover for contact status inspection. Silver alloy contacts ensure dependable performance. Complies with UL, EN, CSA safety and quality standards. Wide operating temperature range from -40 to 70 °C. Compact size enhances PCB space utilization.
This Schneider Electric relay suits industrial automation, manufacturing, electrical control, and HVAC system applications requiring reliable power relay switching. Browse EnvMart's collection of Power Relays and Schneider Electric products for optimized electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 48V DC, suitable for control circuit applications.
This model has a switching current capability of 8A, making it suitable for moderate power relay needs.
It features a double pole double throw (DPDT) contact configuration, providing versatile switching options.
The relay has a length of 29mm, a width of 12.5mm, and a height of 15.7mm, making it compact for PCB integration.
The relay is designed for PCB mounting and features through-hole terminals for secure installation.
It operates reliably in a temperature range from -40 to 70 degrees Celsius, suitable for various industrial environments.
The contacts are made of silver alloy, which ensures reliable conductivity and longevity.
Yes, it complies with international safety standards including UL, EN, and CSA.
The relay is rated IP40, which allows for visual inspection of the contact status through its transparent cover.
This relay is part of the Harmony Relay RSB series, known for quality and durability in industrial applications.
It is suitable for industrial automation, electrical control panels, signaling, and HVAC systems.
The relay is designed for disassembly, promoting sustainability and ease of recycling.
