MEAN WELL IP67 5 Output Dimmable Constant Voltage/Current LED Driver 24V 320.16W 13.34A PWM Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | HLG-320H |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 320.16W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 24V |
| Power Dissipation | 320.16W |
| Standards/Approvals | CB, CE, CSA, EAC, EN, SELV, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-1915 Brand: [MEAN WELL](https://in.rsdelivers.com/brands/mean-well)Manufacturers Part No.: HLG-320H-24B Distrelec Article No.: 16901319 |
| Dimming Operation | 1 to 10 V PWM Resistance |
| Primary Type | AC-DC |
| Driver Current | 13.34A |
Key Features
- Provides stable constant voltage and current output.
- IP67 rated enclosure suitable for indoor and outdoor installation.
- Supports 3-in-1 dimming function including 1 to 10 Vdc and PWM signal.
- Built-in active PFC and universal AC input for versatile use.
- Overload and short circuit protected for reliable operation.
- Designed for LED lighting and street lighting applications.
- Complies with multiple international standards including UL, CE, and CSA.
- Equipped with screw mount type and wire terminal connections.
Product Description

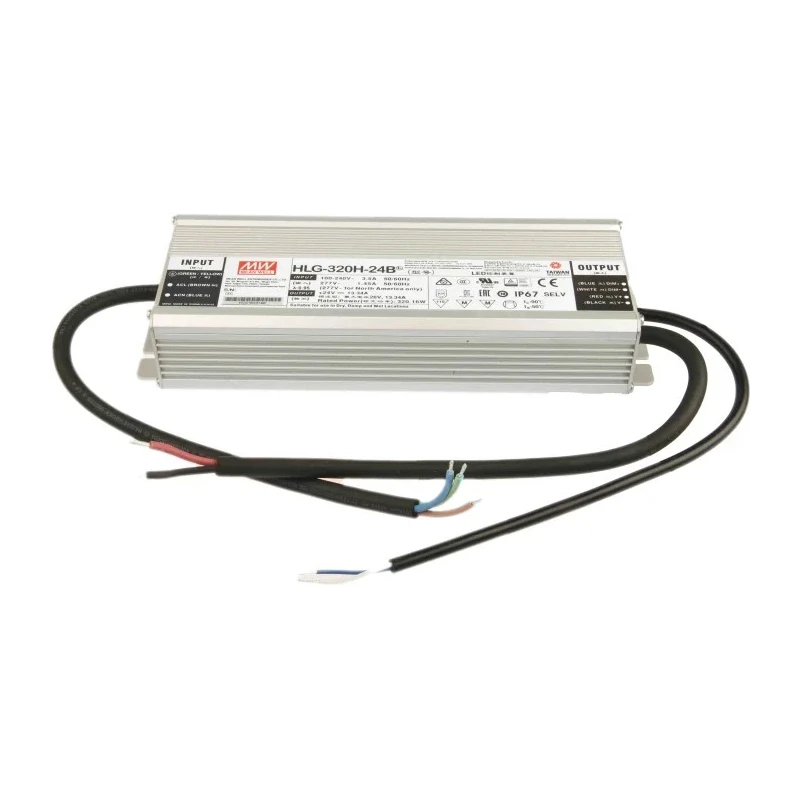

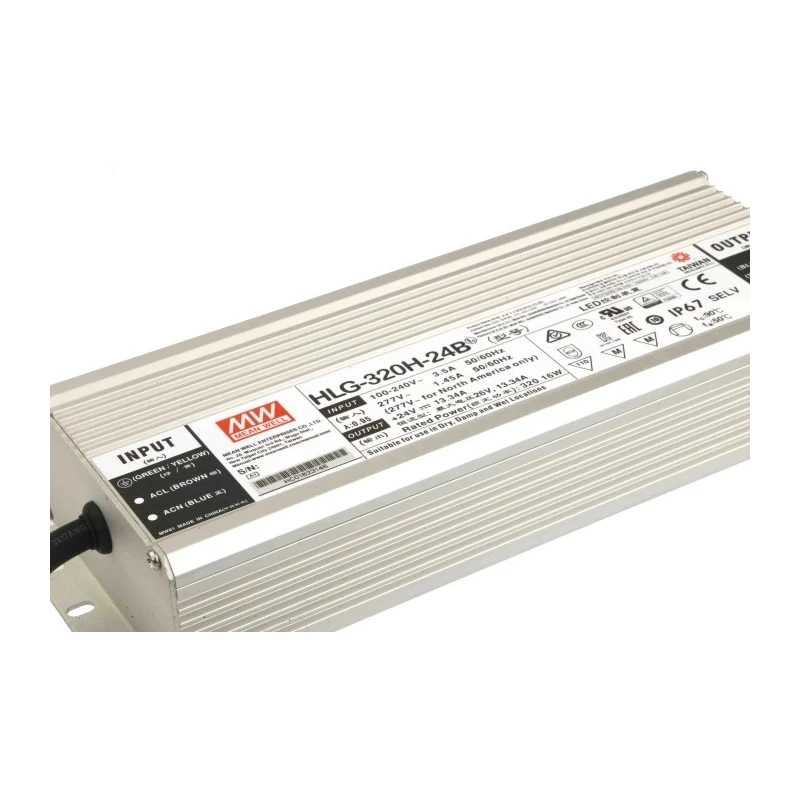

MEAN WELL HLG-320H-24B is an IP67-rated LED driver delivering 24V output voltage and maximum output power of 320.16W with a driver current of 13.34A. This dimmable constant current and constant voltage LED driver supports a 1 to 10 V PWM resistance dimming operation and is designed for robust performance in indoor and outdoor LED lighting solutions.
Equipped with a universal AC input supporting 90V to 305V and a screw mount type, it ensures easy installation. The enclosed AC-DC power supply configuration with 5 outputs allows for flexible connection options.
The driver features built-in 3-in-1 dimming functions including 1 to 10 Vdc, PWM, and resistance dimming signals, making it adaptable for various control systems. The active power factor correction (PFC) improves energy efficiency and reduces harmonic distortion.
With an IP67 protection rating, the driver is suitable for use in dry, damp, or wet environments, including street lighting and other outdoor applications. The device offers protection against short circuits, overloads, over voltage, and over temperature, ensuring safe and reliable operation.
MEAN WELL HLG-320H-24B complies with international safety regulations and standards including UL8750, EN61347-1, EN61347-2-13, CB, CE, CSA, EAC, and SELV. This driver is suitable for industrial, commercial, and infrastructure lighting projects that demand durability and high performance.
Provides stable constant voltage and current output. IP67 rated enclosure suitable for indoor and outdoor installation. Supports 3-in-1 dimming function including 1 to 10 Vdc and PWM signal. Built-in active PFC and universal AC input for versatile use.
Overload and short circuit protected for reliable operation. Designed for LED lighting and street lighting applications. Complies with multiple international standards including UL, CE, and CSA. Equipped with screw mount type and wire terminal connections.
Suitable for dry, damp, or wet locations. Enclosed AC-DC configuration with 5 outputs for various setups. Explore more LED drivers and electronic components in EnvMart for industrial and commercial lighting solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 320.16W.
It provides a constant output voltage of 24V.
This unit has 5 outputs, allowing for flexible connection options.
It supports a 3-in-1 dimming operation including 1 to 10 Vdc, PWM, and resistance dimming.
The input voltage range is from 90V to 305V AC.
This driver has an IP67 rating, making it suitable for use in dry, damp, or wet environments.
It features a screw mount type for easy installation.

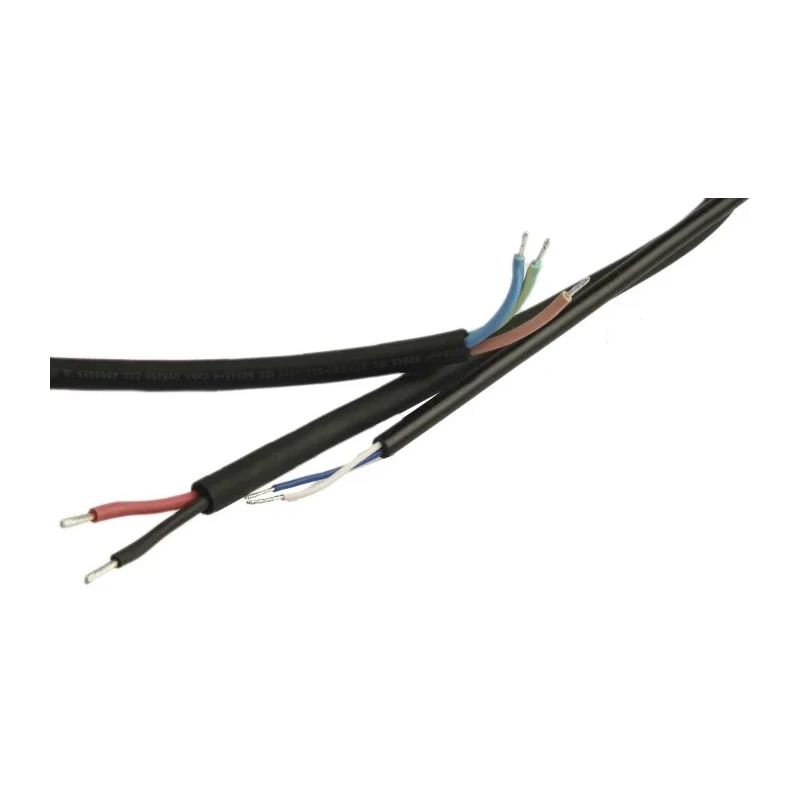

This model is equipped with wire terminal connections.
The driver current is rated at 13.34A.
Yes, it is designed for both indoor and outdoor applications, including street lighting.
