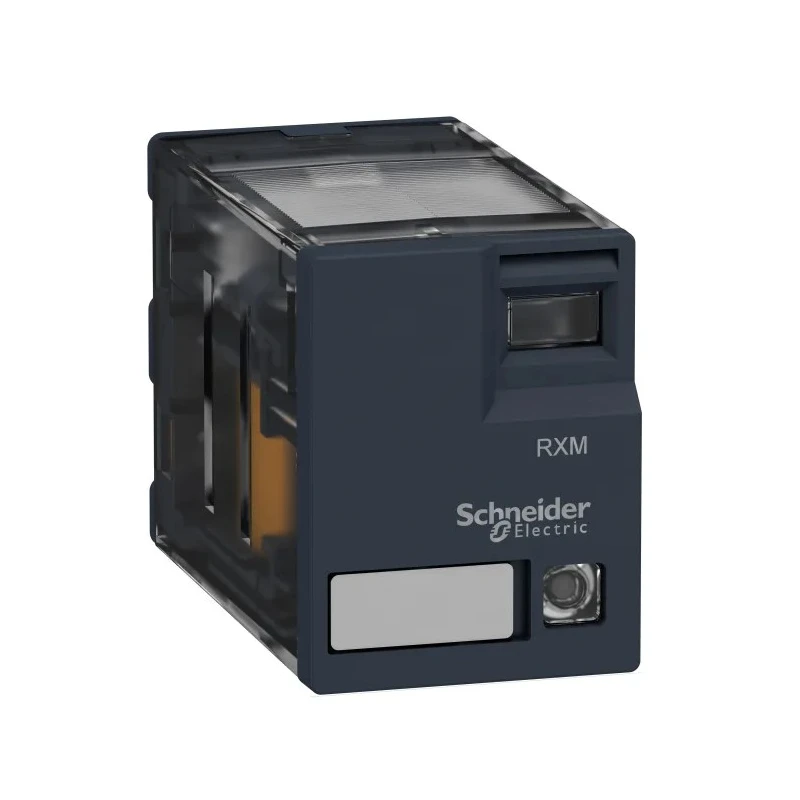

Schneider Electric Power Relay 230V AC Coil 8A Switching Current 4PDT RXM4AB3P7

Schneider Electric RXM4AB3P7 power relay is a high-quality industrial plug-in relay designed to handle control circuits with 230V AC coil voltage and an 8A switching current. This 4PDT relay features plug-in terminals for easy mounting on RXZE sockets. It incorporates a mechanical indicator and a green LED status light to provide clear feedback on relay operation.

The relay operates reliably in a broad temperature range from -40°C to 55°C, making it suitable for demanding industrial environments. Manufactured with silver alloy contacts, it ensures durable and stable switching performance. Its compact dimensions (21mm length, 40mm width, 27mm height) facilitate use in tight panel spaces.

This power relay is part of the Harmony Relay RXM series, widely used in industrial machines, packaging, textile equipment, HVAC systems, motor controls, PLC interfaces, power supplies, and building automation. It supports switching AC voltages up to 250V and DC voltages up to 28V with a switching power rating of 1.5 kVA.

The RXM4AB3P7 conforms to recognized standards such as CSA and CE, assuring quality and compliance for industrial applications. It is a green premium product engineered for robustness, reliability, and easy integration into automation control panels.

It is usually supplied in lots of 10 units, with protection modules, marking legends, and accessory clamps available separately for enhanced vibration resistance. For socket mounting, the RXZE socket series is recommended.

Features a 4PDT contact configuration for versatile switching applications. Operates efficiently within temperature range of -40°C to 55°C. Compact plug-in terminal type ensures easy installation on RXZE sockets. Equipped with coil resistance of 15kΩ and coil power consumption of 1.2W.

Constructed with durable silver alloy contact material for long service life. Dimensions are compact with length of 21mm, width 40mm, and height 27mm. Designed to switch up to 250V AC and 28V DC with switching power of 1.5 kVA.

Includes mechanical indicator and green LED to indicate relay status clearly. Ideal for use in industrial machines, HVAC systems, packaging, textile machinery, and automation control panels. Conforms to international standards including CSA and CE for safety and reliability.
