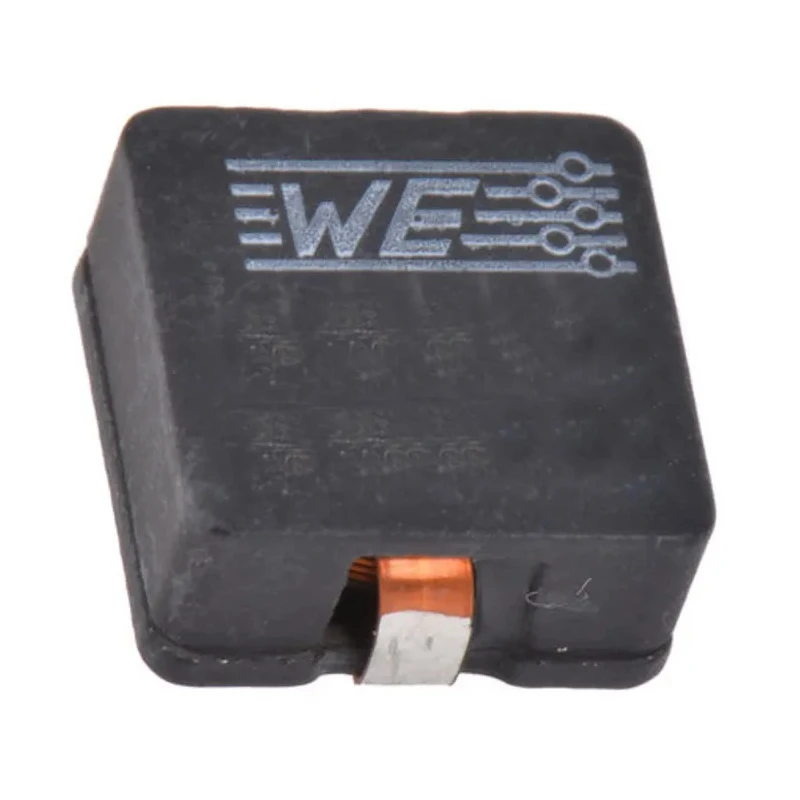

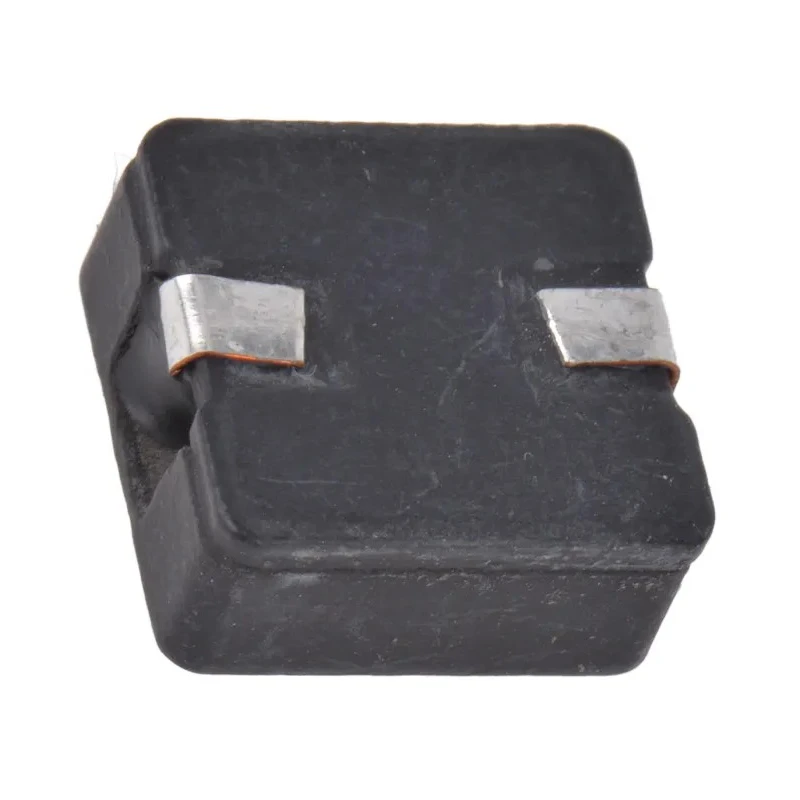

Wurth Elektronik WE-HCI 1050 Shielded Wirewound Surface Mount Inductor with WE-Superflux Core 5.5 μH 10A Tape & 744325550
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.7mm |
| Length | 10.5mm |
| Depth | 10.2mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | WE-Superflux |
| Inductance | 5.5μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 1050 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 736-1973Brand: Wurth ElektronikManufacturers Part No.: 744325550Distrelec Article No.: 30188298 |
| Maximum DC Current | 10A |
| Pin Count | 2 |
| Maximum DC Resistance | 10.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 30MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Featuring magnetically shielded flat wire winding for low stray fields and low DC resistance tolerance.
- Complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
- Automotive standard certified under AEC-Q200 ensuring high reliability.
- Designed for surface mount applications with a tape and reel package.
- Operates within a temperature range of -40°C to 150°C for industrial robustness.
- Compact dimensions of 10.5mm length, 4.7mm height, and 10.2mm depth enable versatile PCB integration.
- Maximum DC resistance is only 10.3 mΩ, supporting high efficiency in power circuits.
Product Description
Wurth Elektronik 744325550 WE-HCI 1050 Shielded Wirewound Surface Mount Inductor featuring a WE-Superflux core offers an inductance of 5.5 μH with a maximum DC current rating of 10A. This component is designed with a magnetically shielded flat wire winding that minimizes stray electromagnetic fields and enhances performance in sensitive electronic assemblies.
The inductor conforms to key industry standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21. It is also automotive qualified under AEC-Q200 standards, making it suitable for high-reliability applications in automotive electronics.
With a tape and reel packaging suitable for automated assembly lines, the inductor features surface mount termination style and compact dimensions (10.5 mm length, 4.7 mm height, and 10.2 mm depth) that allow seamless integration on high-density printed circuit boards.
Its low maximum DC resistance of 10.3 mΩ contributes to energy-efficient current flow, making it excellent for power supply circuits such as DC-DC converters, filters, high current switching regulators, and polyphase-switching regulators in industrial computers, laptops, graphic cards, and motherboards.
Magnetically shielded wirewound construction reduces electromagnetic interference. Certified to multiple international standards ensuring reliability and compliance. Suitable for industrial and automotive applications requiring robust performance.
Compact form factor for efficient PCB space utilization. Low resistance and high current capability enable efficient power handling. Tape & reel packaging facilitates automated manufacturing.
Wurth Elektronik inductors can be trusted in various industrial, computing, and consumer electronics applications. Explore our full range of Surface Mount Inductors and other electronic components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 5.5 μH.
The maximum DC current rating is 10A.
It has a length of 10.5 mm, a height of 4.7 mm, and a depth of 10.2 mm.
The maximum DC resistance is 10.3 mΩ, which supports high efficiency in power circuits.
It operates within a temperature range of -40°C to 150°C.
This inductor is packaged in tape and reel format, suitable for automated assembly.
It complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
Yes, it is automotive standard certified under AEC-Q200, ensuring high reliability.
The termination style is surface mount, which is suitable for high-density PCB applications.
The maximum self-resonant frequency is 30 MHz.
It features a WE-Superflux core, which contributes to its performance in sensitive applications.
It has a flat wire winding construction, which helps minimize stray electromagnetic fields.
