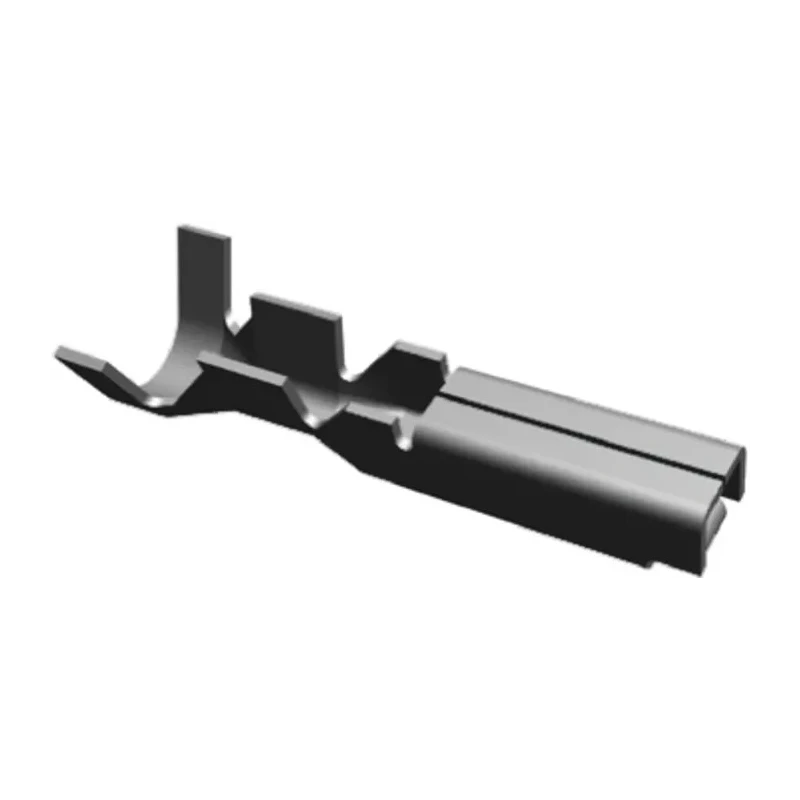

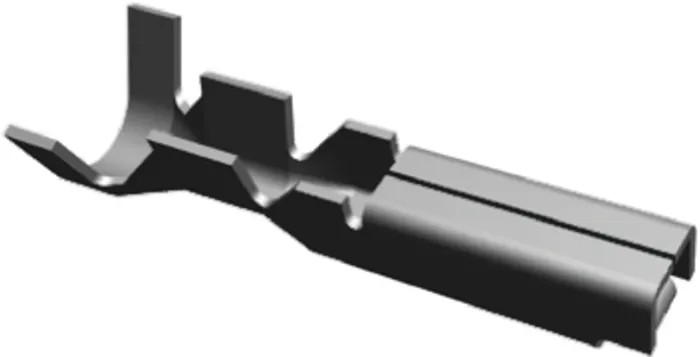

TE Connectivity MINI-MIC Series Female Crimp Terminal 13 AWG Min Crimp 15 AWG Max 282438-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Length | 17mm |
| Model | 282438-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Current Rating | 15A |
| Series | MINI-MIC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 731-3151PBrand: TE ConnectivityManufacturers Part No.: 282438-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 13AWG |
| Maximum Wire Size AWG | 15AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Compatible with AMP SUPERSEAL 1.5 Connector Housing.
- Constructed with phosphor bronze contact material for durability.
- Contact plating is tin to ensure reliable connectivity.
- Supports a current rating of 15 amps for robust performance.
- Operates in temperatures from -30°C to 105°C.
- Termination type is crimp ensuring secure wire connections.
- Compact length of 17mm fits into high-density connector systems.
- Designed for automotive and industrial signal transfer applications.
Product Description
TE Connectivity 282438-1 MINI-MIC Series Female Crimp Terminal is a high-quality crimp contact designed for use with AMP SUPERSEAL 1.5 Connector Housing. It supports wire sizes from 13 AWG (0.5mm²) to 15 AWG (1mm²) and offers durable construction with phosphor bronze contacts plated with tin to ensure long-lasting and reliable electrical connections.
This female Crimp Terminal supports a current rating of 15A and withstands operating temperatures ranging from -30°C to 105°C, making it suitable for harsh industrial, automotive, and automation environments where durable wire termination is critical.
Its compact 17mm length and snap-in fixing connector cavities allow for efficient installation in miniature high-density wiring connectors, providing a wire-to-wire and wire-to-board interconnection solution. The crimp termination type ensures a solid mechanical and electrical connection ideal for signal transfer applications commonly found in automotive and industrial controls.
The terminal's low initial contact resistance of 1 mΩ max and overall resistance of 10 mΩ max helps maintain signal integrity across connections while withstanding voltage up to 1kVac for one minute.
TE Connectivity MINI-MIC connectors and contacts are trusted for their high performance in automotive and industrial applications, delivering secure and reliable connectivity for cable connections requiring high density and robustness.
Compatible with AMP SUPERSEAL 1.5 Connector Housing for versatile connectivity. Constructed from phosphor bronze with tin plating for durability and corrosion resistance. Current rating: 15A, suitable for medium power signal connections.
Operating temperature range: -30°C to 105°C. Compact 17mm length for space-efficient wiring assemblies. Crimp termination type for strong wire retention and electrical continuity. Low contact resistance enhances signal clarity and reduces power losses.
Snap-in fixing connector cavities for ease of assembly and maintenance. Designed for automotive, industrial, automation, and manufacturing applications. Explore TE Connectivity products and ensure reliable connector solutions for your industrial and automotive electronic assemblies with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 15 amps, making it suitable for medium power signal connections.
It is compatible with wire sizes ranging from 13 AWG (0.5 mm²) to 15 AWG (1 mm²).
The operating temperature range for this terminal is from -30°C to 105°C.
This terminal is constructed with phosphor bronze for the contact material and features tin plating for enhanced durability and corrosion resistance.
The length of this crimp terminal is 17 mm, allowing for efficient installation in high-density wiring connectors.
It uses a crimp termination type, which ensures a solid mechanical and electrical connection.
Yes, it is compatible with AMP SUPERSEAL 1.5 Connector Housing.
The maximum contact resistance is specified as 20 mΩ, ensuring good electrical performance.
This terminal is designed for automotive, industrial, automation, and manufacturing applications, particularly for signal transfer.
The low-level resistance is 1 mΩ max (initial), which helps maintain signal integrity across connections.
Its compact 17 mm length and snap-in fixing connector cavities facilitate efficient installation in miniature high-density wiring connectors.
The country of origin for this crimp terminal is India.
