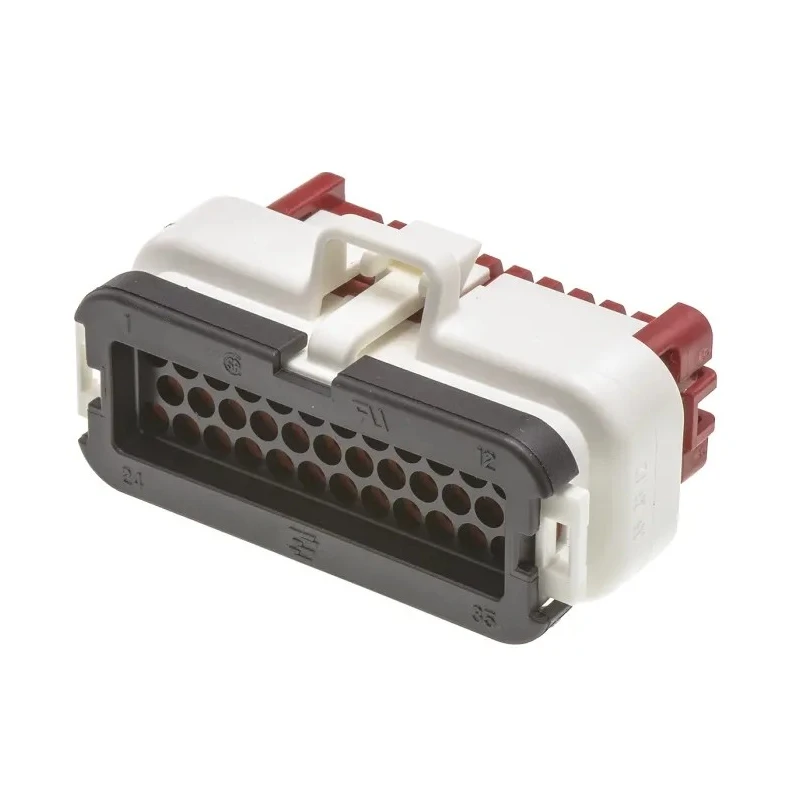

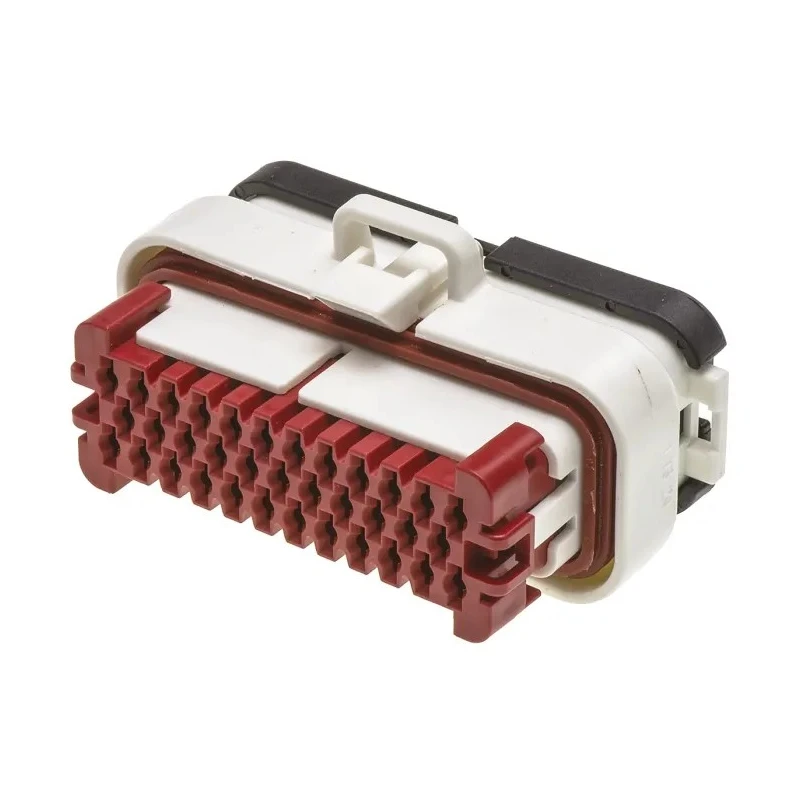

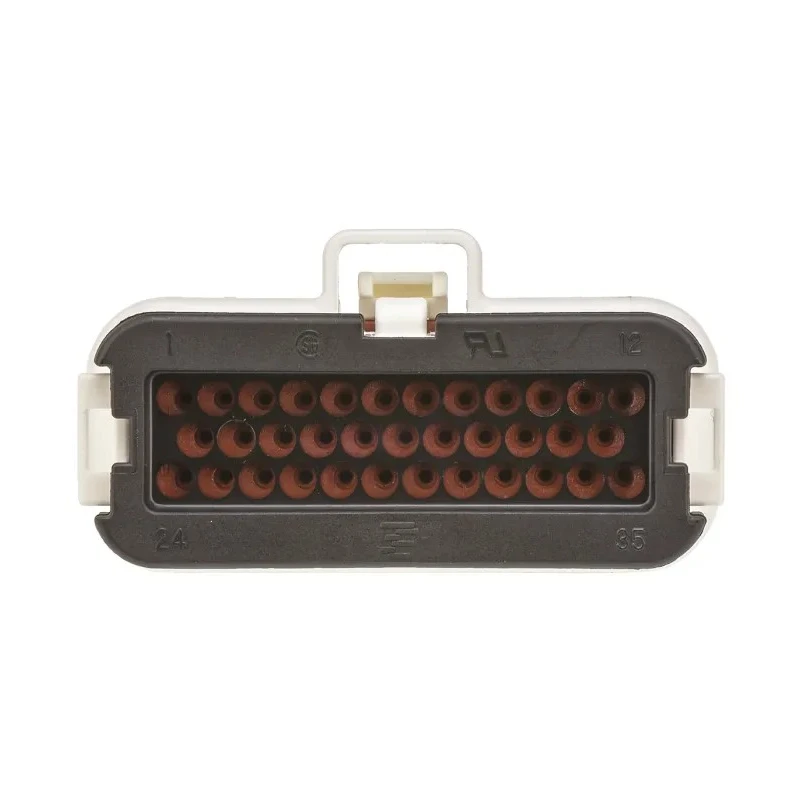

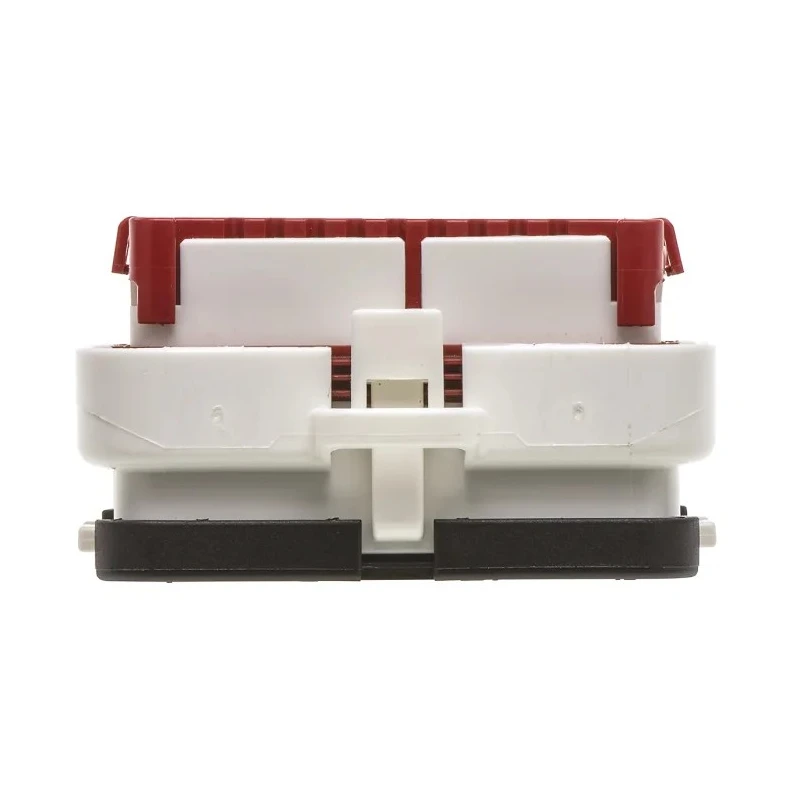

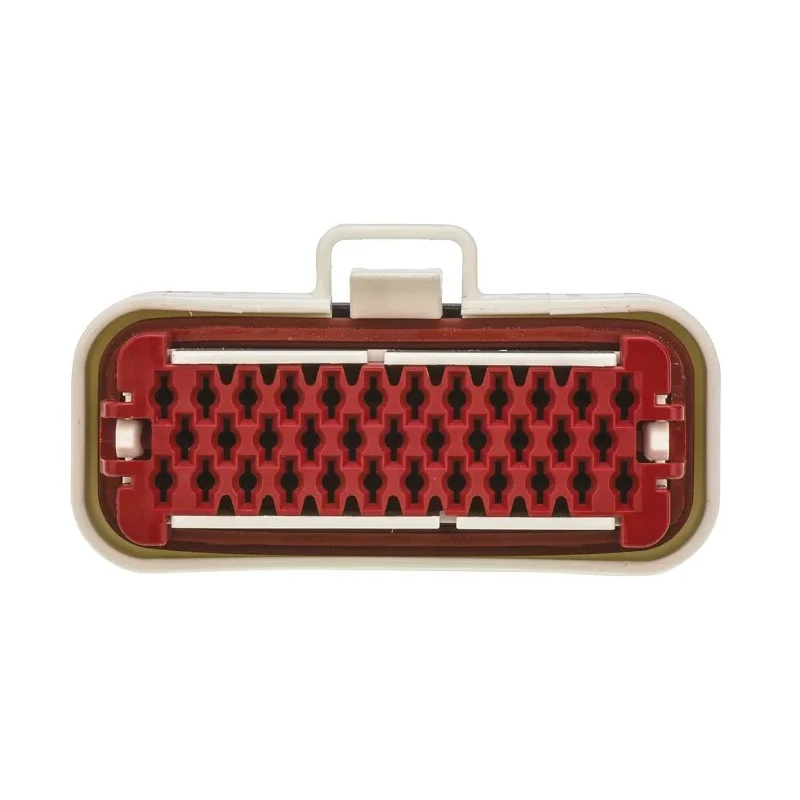

TE Connectivity Ampseal Automotive Connector Male Natural Cable 35 Way Crimp Termination 776164-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| Current | 17A |
| Height | 34.6mm |
| Model | 776164-2 |
| Depth | 33.6mm |
| IP Rating | IP67, IP69K |
| Width | 63.4mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | Ampseal |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Standards/Approvals | EU ELV, EU RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 726-6960Brand: TE ConnectivityManufacturers Part No.: 776164-2 |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- Features 35 contacts arranged in 3 rows for effective cable interfacing.
- Supports crimp termination with male gender, suitable for automotive applications.
- Rated for 17A current and operates between -40°C and 125°C.
- Constructed from fibreglass reinforced polybutylene terephthalate housing with gold-plated contacts.
- Designed with integrated latch and secondary locking to prevent contact loss in heavy-duty conditions.
- Meets EU ELV and EU RoHS standards, ensuring compliance with automotive safety and environmental regulations.
- IP67 and IP69K ratings ensure resistance against dust, water immersion, and high-pressure water jets.
- Ideal for off-road vehicles, heavy industry, agricultural machinery, and other demanding environments.
Product Description
TE Connectivity 776164-2 Ampseal Automotive Connector Male is a high-performance Automotive Connector housing designed for reliable cable connections in demanding industrial environments. Constructed with durable fibreglass reinforced polybutylene terephthalate and featuring gold-plated contacts, this connector offers exceptional resistance to mechanical and environmental stress.
With 35 contacts arranged in three rows, it supports crimp termination and a maximum current rating of 17A, suitable for many electrical wiring applications in automotive and industrial machinery. Its IP67 and IP69K ratings certify protection against dust ingress and water immersion up to 1 meter, as well as high-pressure water jets, making it ideal for use in harsh weather or dirty conditions.
The AMPSEAL series integrates a two-piece contact hold design with secondary locking mechanisms, preventing accidental contact dislodgement and ensuring connection integrity under vibration and shock. An integrated latch mechanism enhances mating security.
Operating temperature ranges from -40°C to +125°C accommodate a wide variety of operating environments. This connector also complies with EU ELV and RoHS standards, supporting environmental safety and regulatory requirements.
Applications include off-road automotive, heavy-duty industrial use, agricultural machinery wiring, and other situations requiring robust and dependable electrical connections. 35 contacts in 3 rows enable complex wiring configurations.
Durable fibreglass reinforced housing withstands extreme conditions. Crimp termination type ensures secure wire attachment. Gold-plated contacts provide excellent conductivity and corrosion resistance. IP67 and IP69K ratings guarantee ingress protection against dust and water.
Wide temperature tolerance from -40°C to 125°C for versatile deployment. Meets EU ELV and RoHS regulatory standards for environmental compliance. Secondary locking and integrated latch avert contact dislodgement. Explore the TE Connectivity range on EnvMart for high-quality automotive and industrial connectors engineered for reliability and durability in demanding use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this connector is 17A.
This model has a height of 34.6mm, a width of 63.4mm, and a depth of 33.6mm.
It operates within a temperature range of -40°C to 125°C.
The connector features 35 contacts arranged in three rows.
It is constructed from fibreglass reinforced polybutylene terephthalate and features gold-plated contacts.
This connector supports crimp termination.
It has IP67 and IP69K ratings, ensuring resistance against dust and water immersion as well as high-pressure water jets.
Yes, it complies with EU ELV and EU RoHS standards, ensuring environmental safety and regulatory compliance.
It is suitable for off-road vehicles, heavy-duty industrial use, and agricultural machinery wiring.
Yes, it features an integrated latch and secondary locking mechanisms to prevent contact loss.
The connector is manufactured in the United States.
This connector is a male type.
