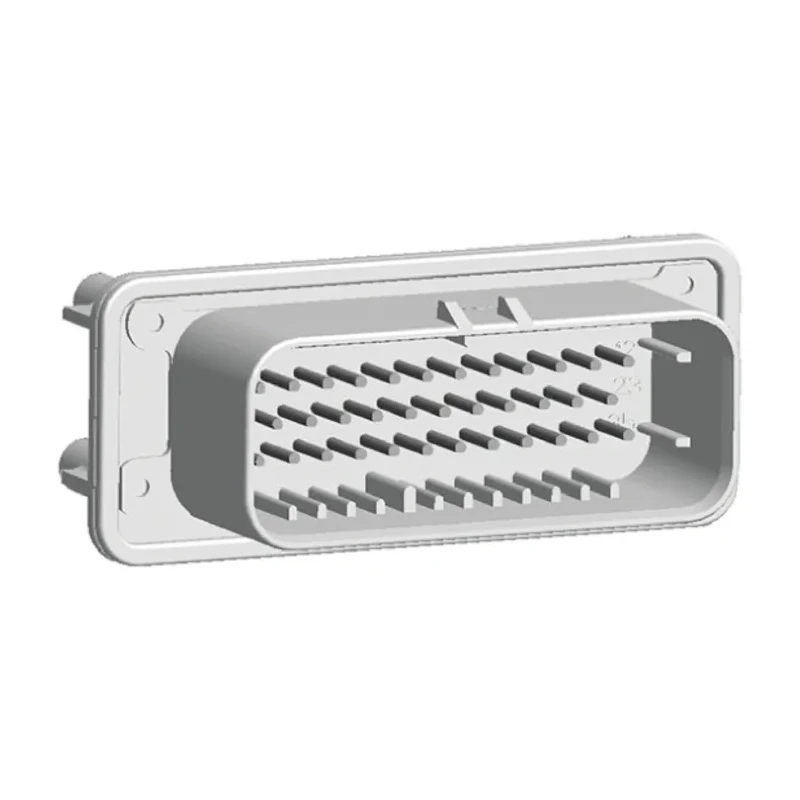

TE Connectivity Ampseal Automotive Connector Male Natural Panel Mount 35 Way Solder Termination 776231-2
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Natural |
| Current | 8A |
| Height | 32.1mm |
| Model | 776231-2 |
| Depth | 34.3mm |
| IP Rating | IP67, IP69K |
| Width | 76.9mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Tin |
| Number of Contacts | 35 |
Key Features
- The connector has 35 contacts arranged in 3 rows for efficient PCB connection.
- It supports solder termination type and is panel mount configured.
- Rated current capacity is 8 amperes suitable for automotive applications.
- The housing is made from fibreglass reinforced polybutylene terephthalate for ruggedness.
- Operating temperature ranges from -40°C to 105°C ensuring performance in extreme conditions.
- Designed with IP67 and IP69K ingress protection ratings offering full dust-tight sealing and resistance to high pressure water jets.
- The contacts are brass with tin plating for reliable electrical conductivity and corrosion resistance.
- The connector diameter of contacts is 1.3 mm and overall dimensions are 76.9 mm width, 34.3 mm depth, and 32.1 mm height.
Product Description
TE Connectivity 776231-2 Ampseal Automotive Connector is a male, panel mount connector with 35 solder termination contacts, designed for robust and reliable performance in demanding automotive and industrial applications.
Manufactured with a fibreglass reinforced polybutylene terephthalate housing, this connector withstands harsh conditions, offering IP67 and IP69K ingress protection ratings which ensure full protection against dust ingress and high-pressure, high-temperature water jets.
Rated for a maximum current of 8 amperes and operating temperature range from -40°C up to 105°C, it provides outstanding durability even in extreme environments. Its 35 brass contacts with tin plating guarantee excellent electrical conductivity and corrosion resistance. The contact diameter is 1.3 mm, and the connector's dimensions of 76.9 mm width, 34.3 mm depth, and 32.1 mm height make it suitable for compact installation spaces.
The AMPSEAL series connectors by TE Connectivity are well known for their ruggedness and their suitability in applications experiencing high vibration and shocks including off-road vehicles, trucks, buses, construction machinery, agricultural equipment, marine vessels, and emergency services.
35 contacts arranged in 3 rows for robust connections. Panel mount type with solder termination for solid PCB connectivity. Rated current of 8A for electrical reliability. IP67 and IP69K protection for dust and high-pressure water resistance.
Highly resistant housing material for rugged environmental endurance. Suitable for high vibration and shock applications. Ideal for automotive, industrial, and harsh environment uses.
This connector is engineered to meet the highest quality standards without compromise on durability or performance, making it an essential component for demanding electrical systems in automotive and industrial sectors.
Browse EnvMart's extensive range of Automotive Connectors and TE Connectivity products for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a rated current capacity of 8 amperes, making it suitable for automotive applications.
The overall dimensions of the connector are 76.9 mm in width, 34.3 mm in depth, and 32.1 mm in height.
It operates within a temperature range of -40°C to 105°C, ensuring functionality in extreme conditions.
This connector features a solder termination type, designed for solid PCB connectivity.
The connector has IP67 and IP69K ingress protection ratings, providing full dust-tight sealing and resistance to high-pressure water jets.
It has 35 contacts arranged in 3 rows for efficient PCB connection.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are brass with tin plating for electrical conductivity and corrosion resistance.
The contact diameter is 1.3 mm, which is suitable for its intended applications.
Yes, it is designed for applications experiencing high vibration and shocks, making it ideal for use in off-road vehicles, trucks, and construction machinery.
The connector is available in a natural color.
The connector is manufactured in India.
This connector is part of the Ampseal series by TE Connectivity, known for its ruggedness and reliability in demanding environments.
