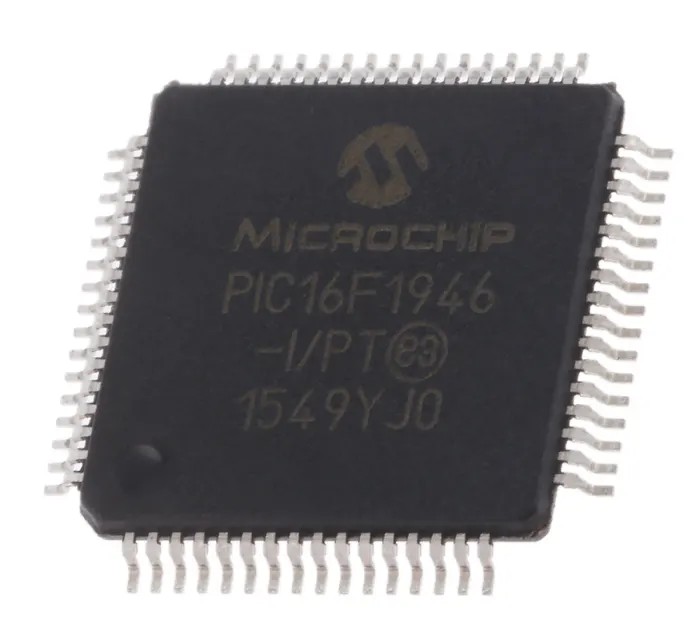

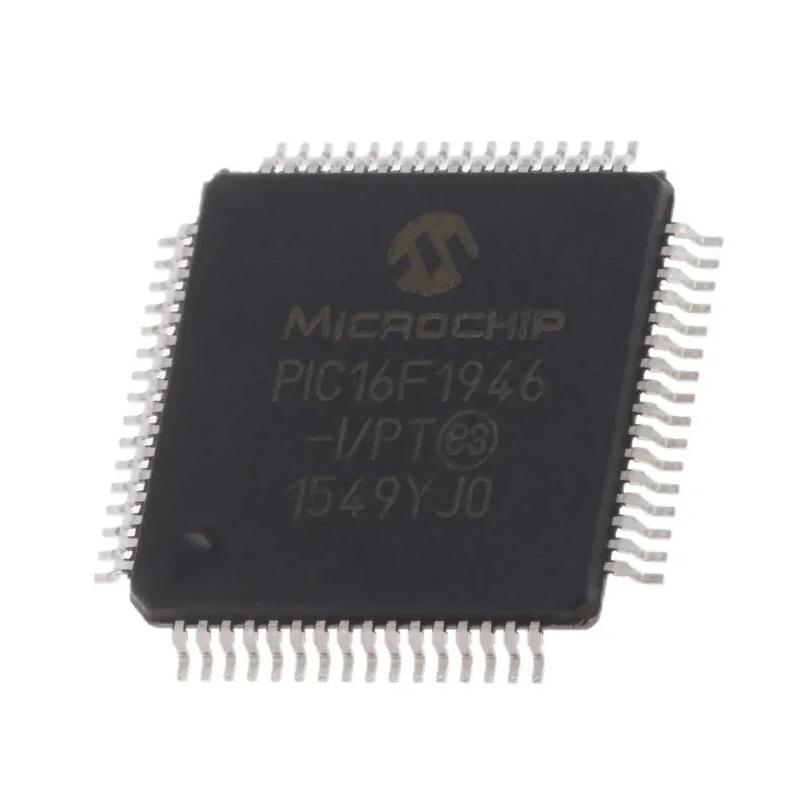

Microchip PIC16F1946-I/PT 8-Bit PIC Microcontroller 32 MHz 14kB FLASH 64-Pin TQFP

Microchip PIC16F1946-I/PT is a high-performance 8-bit PIC microcontroller designed for a wide range of embedded system applications. It features a fast 32 MHz internal oscillator and 14kB of FLASH memory, enabling complex program execution within a compact 64-pin TQFP form factor.

This microcontroller operates with a supply voltage from 2.5 V up to 5.5 V and delivers up to 8 Million Instructions Per Second (MIPS) leveraging the efficient RISC architecture. It includes 512 bits of RAM and an array of on-chip peripherals such as 17 channels of 10-bit ADCs, three analog comparators, and multiple Capture/Compare/PWM units. These features make it flexible for sensor interfacing, motor control, and industrial automation tasks.

The device supports nanoWatt XLP technology minimizing power consumption, and includes power-on reset, brown-out reset, watchdog timer, and low-voltage programming for reliable field operation and easy development. It can withstand industrial temperature ranges from -40°C to 85°C ensuring durability in harsh environments.

The PIC16F1946-I/PT is mounted on a surface-mount TQFP package measuring 10 mm by 10 mm by 1.05 mm, suitable for compact PCB designs. With a maximum power dissipation of 800 mW, it is ideal for low-power, battery-operated instrumentation and control devices.

This microcontroller is widely used across industrial, automotive, consumer electronics, and HVAC applications, providing designers with a versatile chip packed with rich features. It supports in-circuit serial programming, debugging, and has integrated LCD control for display-oriented projects.

Operates at a maximum clock frequency of 32 MHz for efficient processing. Incorporates 14kB of FLASH program memory and 512-bit RAM. Features a total of 64 pins in a TQFP surface mount package. Supports 54 programmable input/output ports for versatile interfacing.

Includes 17 channels of 10-bit analog-to-digital converters for precise sensing. Wide operating voltage range from 2.5 V up to 5.5 V. Supports various embedded peripherals including timers, comparators, and PWM modules. Operates reliably in temperatures from -40°C to 85°C.

Uses RISC instruction set architecture for fast instruction execution. Power dissipation maximum of 800 mW suitable for low-power applications. Explore more Microcontrollers and embedded processors at EnvMart for your next electronics design.
