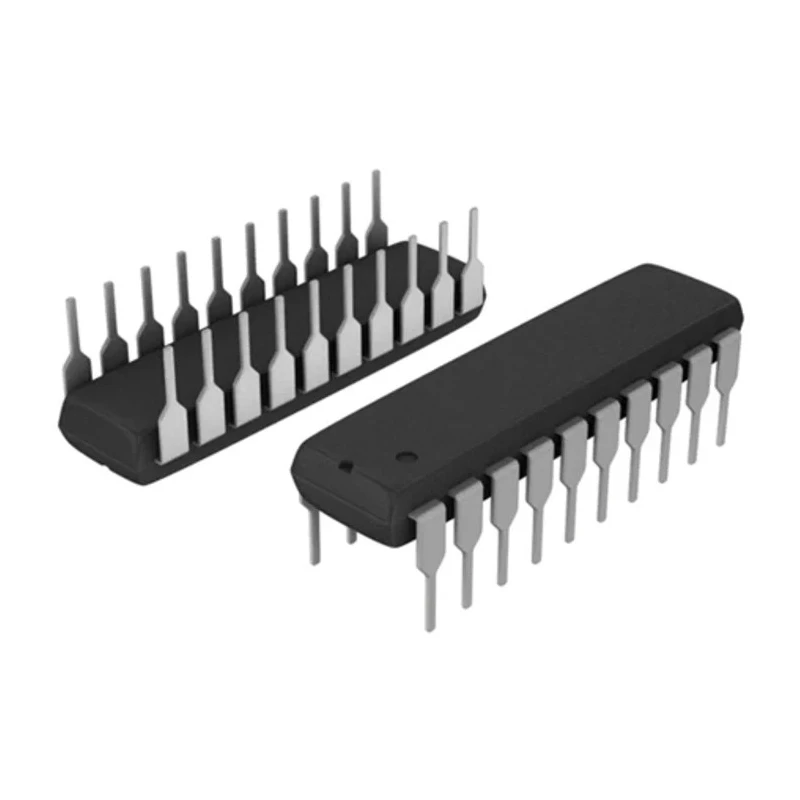

Microchip PIC16F1828-I/P 8-Bit PIC Microcontroller 32 MHz 7kB Flash 20-Pin PDIP

Microchip PIC16F1828-I/P is an 8-bit PIC microcontroller designed with an enhanced mid-range RISC architecture. It delivers up to 32 MHz maximum clock frequency and features 7kB Flash program memory for robust embedded control.

The device includes 512-bit RAM and 256-byte Data EEPROM to facilitate efficient data storage and retrieval within compact applications. It comes in a 20-pin PDIP through-hole package suitable for prototype and production environments.

This microcontroller offers 18 programmable I/O pins and multiple sophisticated peripherals like 12 channels of 10-bit Analog to Digital Converters (ADC), a 5-bit Digital to Analog Converter (DAC), two capture/compare/PWM modules, and enhanced communication interfaces, including SPI, I2C, and Enhanced UART (EUSART).

Supporting extended features such as Power-On Reset (POR), Brown-Out Reset (BOR), Watchdog Timer (WDT), and low-voltage programming, it ensures system reliability and flexibility. Its operating voltage ranges from 1.8V to 5.5V, with maximum power dissipation of 800mW, suitable for diverse electronic designs.

Designed to function between -40°C to 85°C, it is compliant with RoHS environmental standards, making it ideal for industrial, laboratory, embedded systems, consumer electronics, and other manufacturing applications requiring reliable microcontroller performance.

Features an enhanced mid-range core with 16-level stack and 49 instructions. Includes 7kB Flash memory and 512-bit RAM plus 256-byte Data EEPROM. Operates up to 32 MHz with an internal oscillator configurable between 31 kHz to 32 MHz.

Provides 18 programmable I/O pins and 12 channels of 10-bit ADCs. Communication supported through SPI, I2C, and Enhanced UART protocols. Equipped with multiple timers and digital peripherals for versatile control. Ensures system reliability through POR, BOR, and Watchdog Timer features.

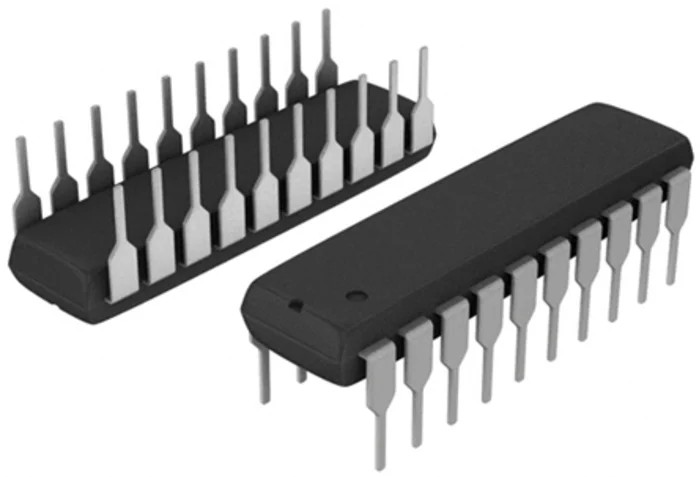

Packaged in a 20-pin PDIP form factor for through-hole mounting. Operates across a wide temperature range of -40°C to 85°C.
