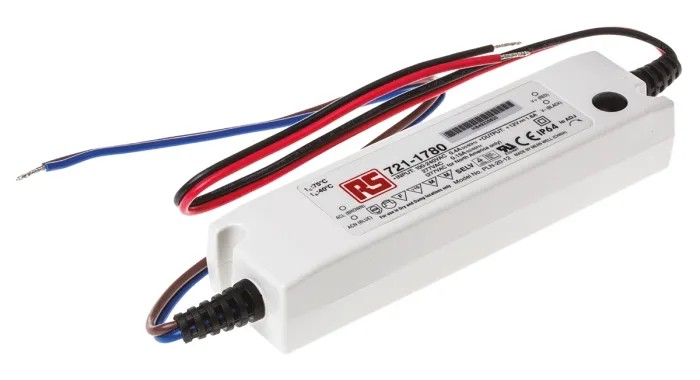

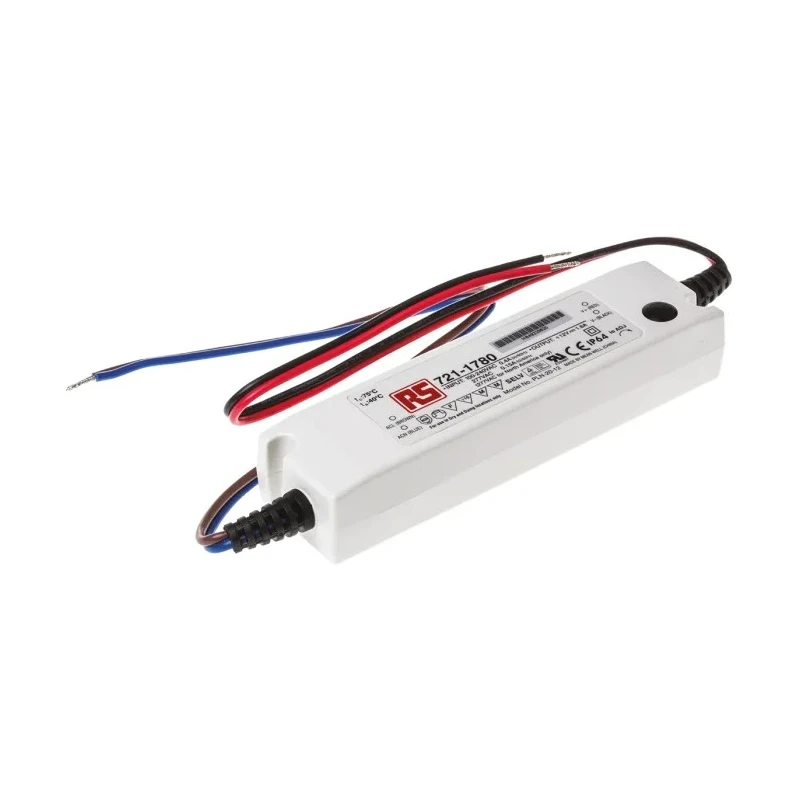

MEAN WELL IPL64 1 Output Panel Mount LED Driver 12V 19.2W 1.6A Constant Voltage IP64

MEAN WELL PLN-20-12 is a high-quality LED driver designed to deliver a constant voltage of 12V and a maximum output power of 19.2W at 1.6A driver current. This encapsulated panel mount LED driver is IP64 rated, offering effective protection against dust ingress and water splashes, making it suitable for both indoor and outdoor automotive lighting, architectural lighting, and moving sign applications.

The driver supports AC input voltages ranging from 90V to 392V, ensuring compatibility with diverse power sources. It is engineered with advanced features such as built-in overcurrent protection, short circuit protection, overload protection, over-voltage protection, and over-temperature protection to maintain safe and stable operation.

Compliant with multiple international standards such as CB, CE, EN, IEC, SELV, TUV, and UL, this driver assures quality and safety in various industrial and commercial lighting environments. Its power factor is corrected according to EN 61000-3-2, enhancing energy efficiency and reducing harmonic distortion.

The MEAN WELL PLN-20-12 comes with 320mm long un-terminated 2-core 18AWG input and output leads, providing ease of installation in panel mounting configurations. Each unit undergoes 100% full load burn-in testing to ensure high reliability and durability under continuous operation.

This product is intended for industrial use only and may experience power derating above 50°C ambient temperature. It is ideal for use in LED lighting systems requiring reliable constant voltage power supplies with robust protection features.

Designed for panel mounting with encapsulated configuration for safety. IP64 rated for dust and water resistance, suitable for indoor and outdoor environments. Supports AC input voltages of 90, 127, 277, and 392 volts. Includes built-in protections such as short circuit, overload, over-voltage, and over-temperature safeguards.

Complies with safety and EMC standards including CB, CE, EN, IEC, SELV, TUV, and UL certifications. Features power factor correction compliant with EN 61000-3-2 standard. High efficiency and long service life designed for LED lighting and moving sign applications.

Equipped with 320mm un-terminated 2-core 18AWG input and output leads for easy installation. Undergoes 100% full load burn-in testing to ensure reliability. For industrial use only; power derates above 50°C according to specifications.
