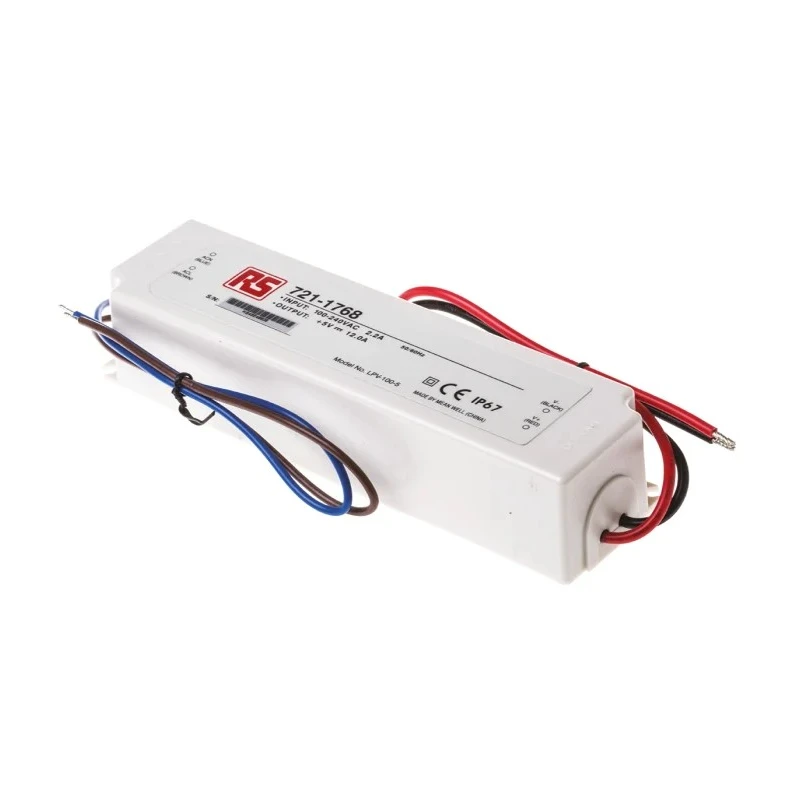

MEAN WELL IP67 Rated Single Output 5V 60W LED Driver, 12A Constant Voltage LED Driver

MEAN WELL LPV-100-5 is a high-performance IP67 rated LED driver delivering single output constant voltage at 5V with a maximum output power of 60W and 12A driver current. This encapsulated AC-DC LED driver is engineered for both indoor and outdoor use, featuring a robust waterproof enclosure compliant with IP67 protection standards.

Power input accepts a wide voltage range (90V AC up to 370V AC), making it versatile for various power environments. The device is designed with panel mount type installation, providing a practical solution for LED lighting and moving sign applications in industrial, commercial, and manufacturing environments.

With TUV, EN, and CE certifications, this LED driver achieves high efficiency and reliability. It is capable of withstanding surge inputs of 300Vac for short durations, ensuring enhanced safety and longevity. The product includes integral protective functions such as short circuit, over-current, and over-voltage protections.

Installation is facilitated by 300mm un-terminated 2-core wire leads (18AWG input, 14AWG output), allowing straightforward wiring. Although this model does not support dimming operation, its constant voltage mode maintains stable power output suitable for sensitive LED electronic components.

Designed for industrial use only, the driver undergoes a 100% full load burn-in test to guarantee consistent performance. It serves in multiple sectors including electronic manufacturing, LED lighting setups, HVAC equipment lighting, and other commercial installations demanding robust power management.

This LED driver features an IP67-rated encapsulated design for indoor and outdoor installations. Input voltage supports multiple AC voltage levels: 90, 127, 264, and 370 V AC. Equipped with built-in protection including short circuit, over-current, and over-voltage safeguards.

Compliance with TUV, EN, and CE standards ensures reliability and safety. Designed with high efficiency and long life for industrial and commercial LED lighting and moving signs. Wire termination with 300mm un-terminated, 2-core 18AWG input and 14AWG output leads facilitates easy installation.

Supports constant voltage operating mode without dimming functionality. Endures 300Vac surge input for up to 5 seconds, assuring durability.
