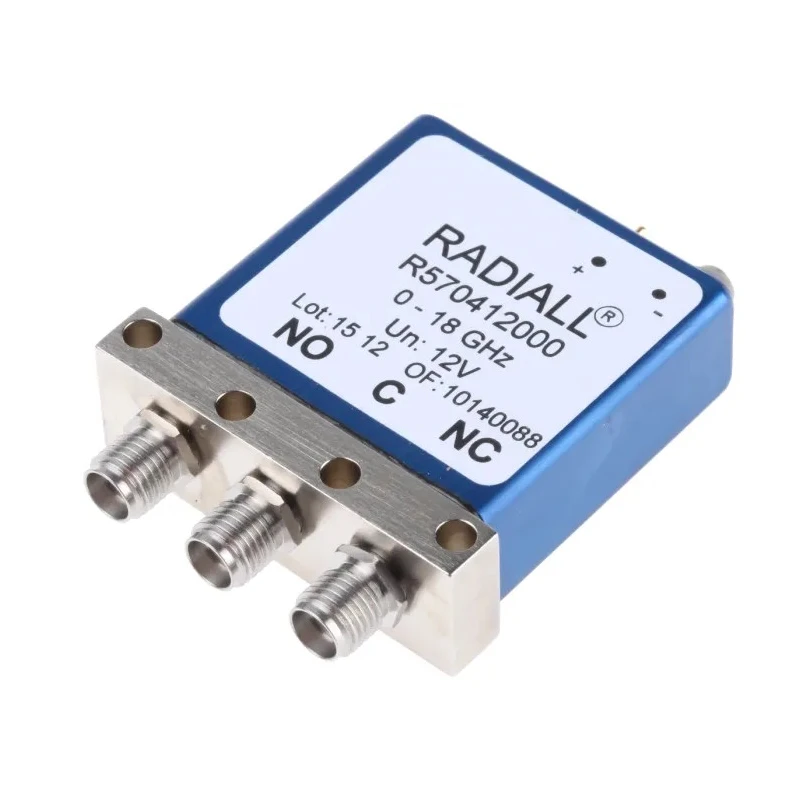

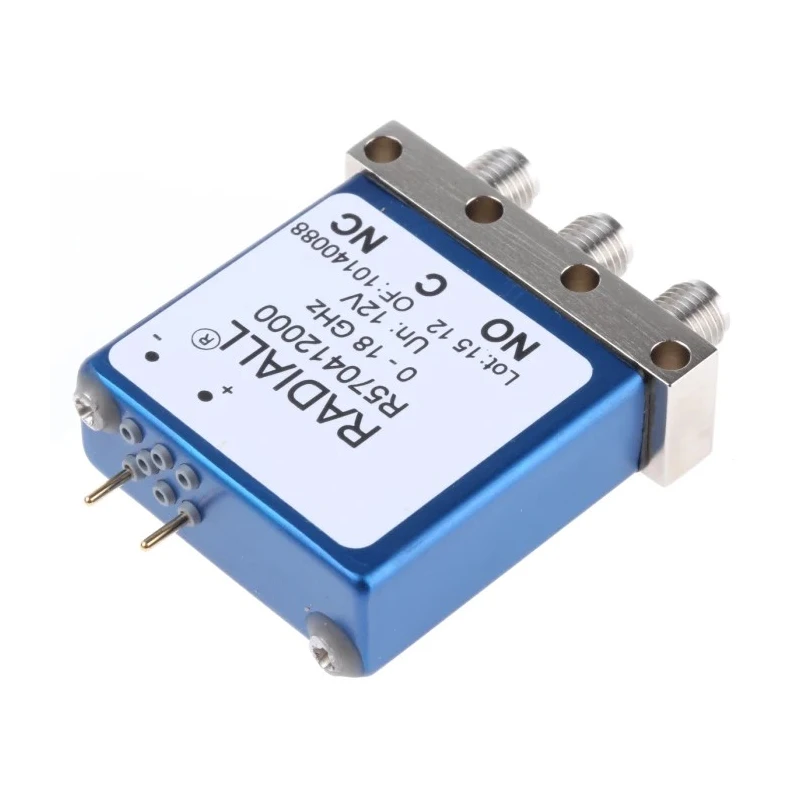

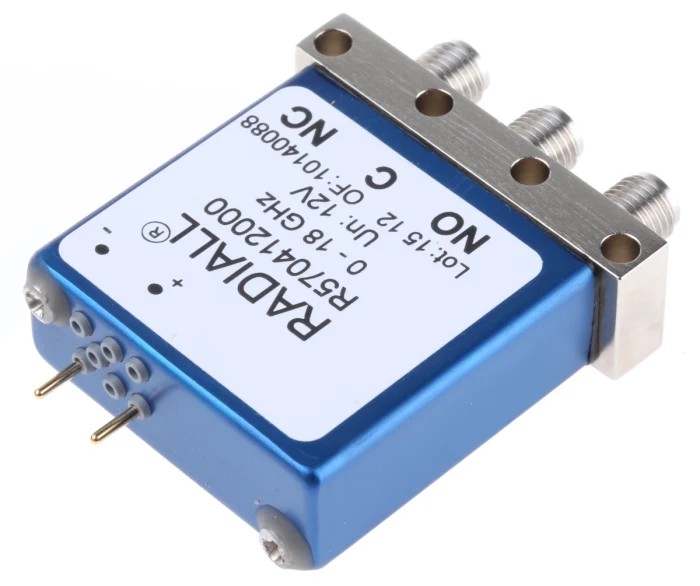

Radiall Through Hole High Frequency Relay 12V Coil 18 GHz Max Coil Frequency SPDT R570412000

Radiall R570412000 Through Hole High Frequency Relay is a precision SPDT relay designed for high-frequency applications with a maximum coil frequency of 18 GHz. It operates on a 12V coil and delivers reliable switching performance in RF and microwave circuits requiring 50 ohm impedance. Its compact dimensions (38.1mm length and 12.8mm height) and through-hole PCB terminal mount facilitate easy integration into printed circuit boards.

Constructed to withstand temperatures from -40°C to 85°C, this relay ensures dependable function in demanding industrial and telecommunications environments. With an insertion loss of only 1.10 dB at 50 GHz and an isolation rating of 50 dB at 50 GHz, it minimizes signal loss and crosstalk, supporting high signal integrity in sensitive applications.

The relay belongs to Radiall’s Failsafe series, noted for excellent reliability and performance consistency. Its coil power rating is 100 W, providing strong actuation force for switching operations. The PCB terminal type and through-hole mount enhance mechanical stability in assemblies.

This product is RoHS compliant and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, attesting to safety and environmental quality. Made in France, the relay is suitable for use in industrial automation, telecommunications, laboratory equipment, and other high frequency signal control systems requiring robust, precise switching.

Operates with 12V coil for high-frequency switching. Maximum coil frequency up to 18 GHz for RF applications. Low insertion loss of 1.10 dB at 50 GHz supports signal quality. High isolation of 50 dB at 50 GHz reduces interference.

Wide temperature range from -40°C to 85°C for durability. PCB terminal with through-hole mount for secure fitting. Coil power rating of 100 W ensures effective actuation. Complies with RoHS and key ANSI/ESD and EN standards.

Compact size with length 38.1 mm and height 12.8 mm.

This Radiall high frequency relay is optimized for electronic manufacturing, telecommunications infrastructure, signal conditioning, and laboratory instrumentation. Explore EnvMart’s extensive catalog for additional Radiall components and HF & RF Relays optimized for diverse industrial automation and electronics applications.
