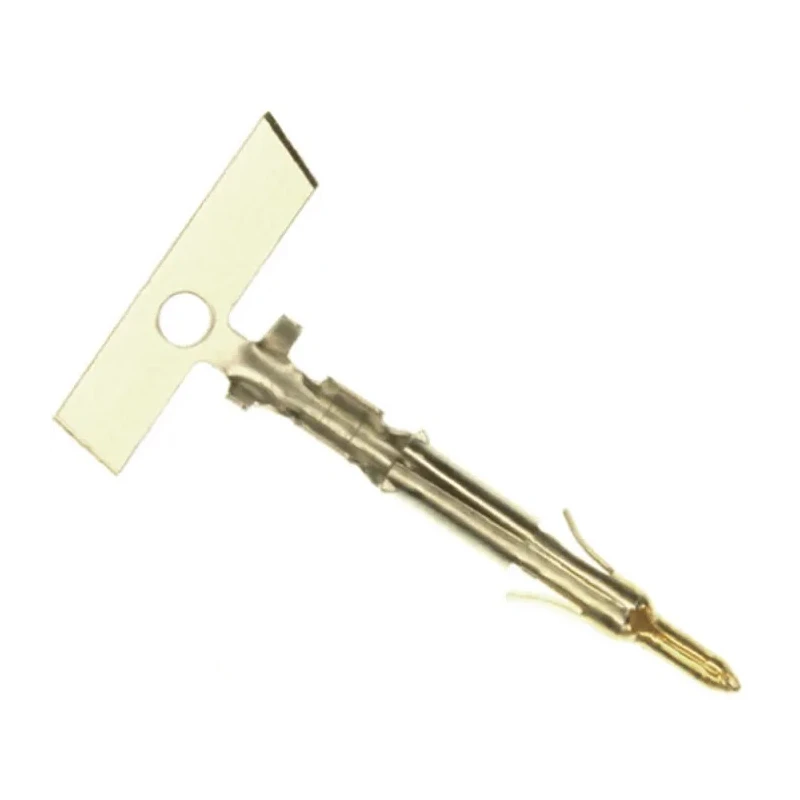

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max 170360-4

TE Connectivity 170360-4 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is a high-quality crimp contact designed specifically for use with Mini-Universal MATE-N-LOK Connector Housings. Engineered for reliable electrical connections, this male crimp terminal supports wire sizes from 22 AWG (0.3 mm²) to 18 AWG (0.8 mm²), with an electrical current rating of 7 amperes, making it suitable for various electronic and electrical applications.

The contact material is phosphor bronze, known for its excellent conductivity and mechanical strength, while the tin plating provides corrosion resistance and improved contact performance. The crimp termination type ensures a secure and permanent connection between wire and terminal, facilitating efficient assembly and maintenance.

This terminal operates within a temperature range of -20°C to 30°C, offering robust performance under varying environmental conditions. Its low maximum contact resistance of 10 mΩ contributes to effective electrical transmission with minimal losses, suitable for demanding industrial and electronic setups.

The product is ideal for use in industrial control systems, instrumentation, automotive wiring, and other electrical assemblies where Mini-Universal MATE-N-LOK connectors are used. The design provides compatibility with standard TE Connectivity connector housings, ensuring broad application and easy integration.

The crimp terminal is constructed from durable phosphor bronze. Contact surfaces are plated with tin for protection and performance. Compatible with wire sizes of 22 to 18 AWG (0.3 mm² to 0.8 mm²). Maximum current rating of 7 amperes ensures safe electrical flow.

Low contact resistance (10 mΩ) guarantees efficient connectivity. Operates effectively from -20°C to 30°C ambient temperature. Termination by crimp offers robust and reliable electrical connections. Designed as a male contact for Mini-Universal MATE-N-LOK connector housings.

This Crimp Terminal is a trusted choice for electronics manufacturing, board assembly, and wiring harness production, offering high reliability and standard compliance for enhanced performance in power and signal transmission. Its precision manufacturing by TE Connectivity ensures consistent quality and compatibility with related connector accessories.
