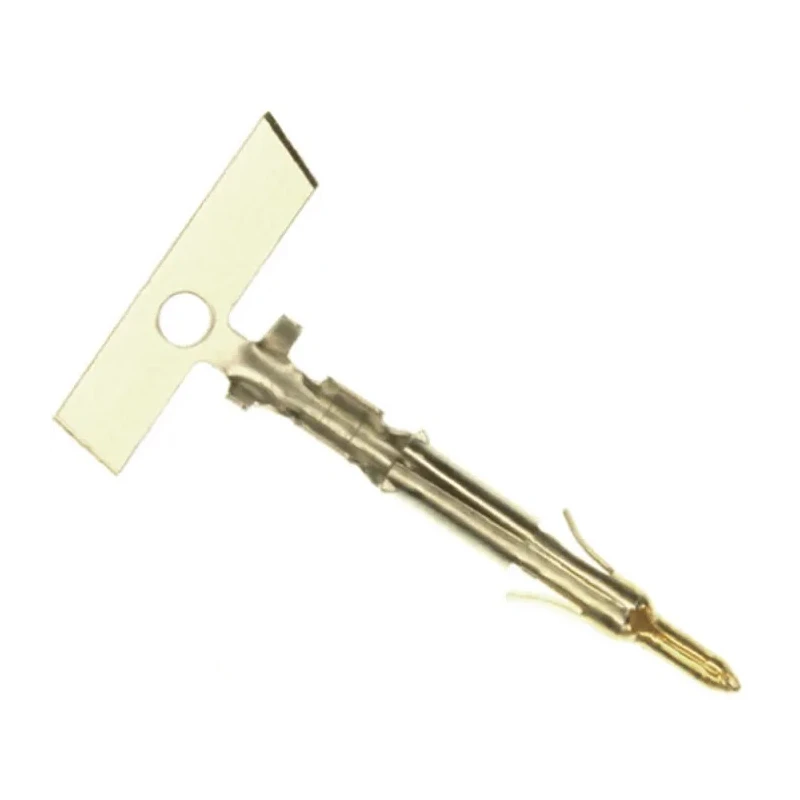

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 7A Current, 22 AWG Min, 18 AWG Max 170360-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170360-4 |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 30°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-2199Brand: TE ConnectivityManufacturers Part No.: 170360-4 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal is designed for use with Mini-Universal MATE-N-LOK connector housings.
- Contact material is phosphor bronze with tin plating for durability.
- Suitable for wire sizes from 0.3 mm² (22 AWG) minimum to 0.8 mm² (18 AWG) maximum.
- Maximum contact resistance is 10 milliohms ensuring reliable electrical connectivity.
- Operates within a temperature range of -20°C to 30°C.
- Termination type is crimp, facilitating secure wire connections.
- Designed specifically for male gender contacts in this connector family.
- No specific industry standards or approvals are indicated for this terminal.
Product Description
TE Connectivity 170360-4 Male Crimp Terminal is a precision-engineered component designed for use within the Mini-Universal MATE-N-LOK series of connectors. This Crimp Terminal is crafted to handle wire gauges between 22 AWG (0.3 mm²) minimum and 18 AWG (0.8 mm²) maximum, supporting currents up to 7 amps reliably within electronic, power distribution, and industrial applications.
Constructed with phosphor bronze contact material plated with tin, these terminals ensure durable electrical conductivity and resistance to corrosion. The termination method employed is crimping, providing a secure and stable mechanical and electrical connection for wire harnesses.
Operating temperature limits span from -20°C to 30°C, making them suitable for many standard environments encountered in electronic manufacturing and assembly processes.
This male contact is intended for insertion into Mini-Universal MATE-N-LOK connector housings, widely used in electronics and electrical power connector assemblies for reliable interconnections.
The product does not carry specific industry certifications or approvals, but meets general expectations for quality and durability in its class. The terminal facilitates wire sizes from 22 AWG to 18 AWG for flexible usage.
Phosphor bronze tin-plated contact material offers excellent conductivity. Crimp termination ensures secure mechanical and electrical connection. Rated for a maximum current of 7A, suitable for standard power applications.
Designed for industrial, electronic, and power connector applications. Operating temperature range is from -20°C to 30°C. Compatible with Mini-Universal MATE-N-LOK connector housings. Male gender contact specialized by design for mating in connector systems.
Explore the range of TE Connectivity products on EnvMart for trusted electronic components and connectors designed for industrial, manufacturing, and technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp terminal is rated for a maximum current of 7A.
It is designed to accommodate wire sizes from 22 AWG (0.3 mm²) minimum to 18 AWG (0.8 mm²) maximum.
The operating temperature range for this terminal is from -20°C to 30°C.
The contacts are made of phosphor bronze and are plated with tin for enhanced conductivity and corrosion resistance.
This model uses crimp termination, providing a secure mechanical and electrical connection.
It is specifically designed for use with Mini-Universal MATE-N-LOK connector housings.
The maximum contact resistance is 10 milliohms, ensuring reliable electrical connectivity.
The terminal is manufactured in India.
This terminal is suitable for use in electronic, power distribution, and industrial applications.
This crimp terminal is designed as a male contact.
The crimping process ensures a secure and stable mechanical and electrical connection for wire harnesses, enhancing performance.
There are no specific industry certifications or approvals indicated for this terminal, but it meets general expectations for quality in its class.
