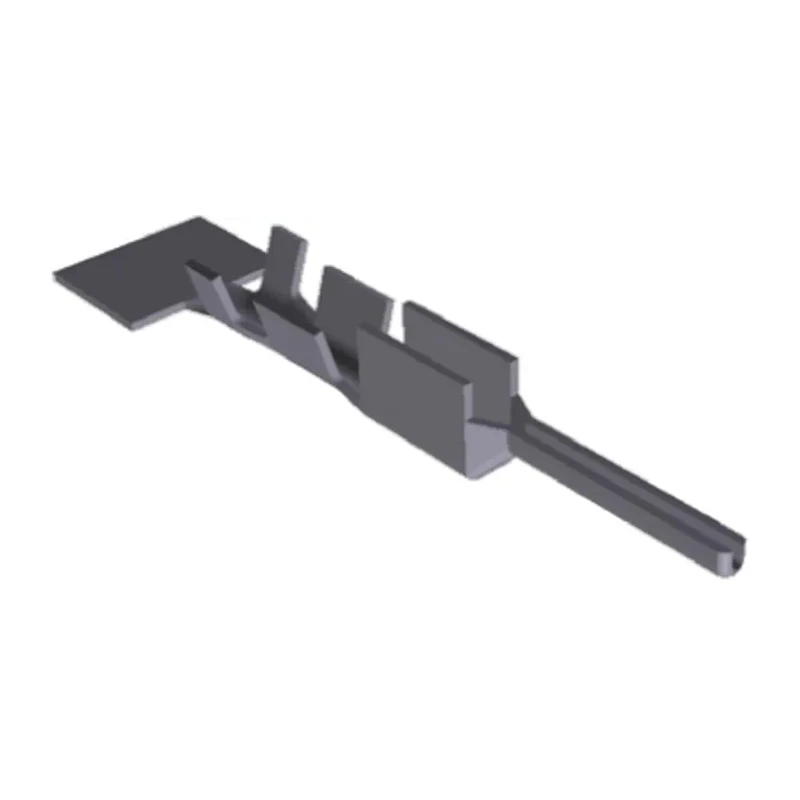

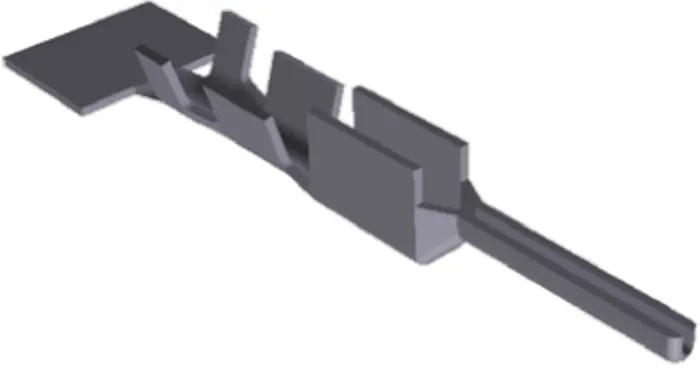

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal 5A Current Gold Plated Brass Contact 1-794608-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Male |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-2165Brand: TE ConnectivityManufacturers Part No.: 1-794608-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Supports wire sizes from 24 AWG to 20 AWG.
- Maximum current rating of 5A suitable for various electronic applications.
- Dual beam contact design ensures electrical reliability.
- Locking lance mechanism secures contacts within the connector housing.
- Operates within temperature range from -40°C to 105°C.
- Gold plating on the contact surface provides corrosion resistance.
- Crimp termination type for solid and reliable wire connections.
- Compatible with Micro MATE-N-LOK connector housings.
Product Description
TE Connectivity 1-794608-2 Micro MATE-N-LOK Series Male Crimp Terminal is engineered for secure and reliable electrical connections in industrial and consumer electronic systems. Featuring gold plated brass contacts with a dual beam contact design, it assures high conductivity and corrosion resistance.
This crimp terminal supports wire sizes ranging from 24 AWG (0.2 mm²) up to 20 AWG (0.5 mm²), making it versatile for various wiring needs. It safely carries up to 5A current and functions reliably in temperatures between -40°C and 105°C.
The locking lance mechanism firmly holds the male crimp contacts in the Micro MATE-N-LOK connector housing, preventing disconnection under vibration or mechanical stress. The crimp termination offers strong mechanical and electrical connection optimized for industrial, electronic, and telecommunications applications.
Applications of this Micro MATE-N-LOK Crimp Terminal include PCB connectors, wire-to-wire interconnections, consumer electronics, and LED lighting systems. Its compact design supports the 3 mm centreline Micro MATE-N-LOK connector system, which is widely used for space-saving wiring solutions.
Supports wire sizes from 24 AWG to 20 AWG. 5A maximum current rating. Gold plated brass contact material for durability and conductivity. Dual beam contact design for stable electrical connection. Locking lance mechanism for secure retention in housing.
Compatible with Micro MATE-N-LOK connector housings. Operates between -40°C and 105°C temperature range. Crimp termination providing reliable wire connection. It is ideal for use in electrical components, power connectors, telecommunications, semiconductor equipment, and electronic assembly industries.
Explore other products within the Crimp Contacts category on EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 5A, making it suitable for various electronic applications.
This model supports wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
It operates reliably within a temperature range of -40°C to 105°C.
The contact material is brass, which is gold plated for enhanced conductivity and corrosion resistance.
It features a locking lance mechanism that secures the contacts within the Micro MATE-N-LOK connector housing, preventing disconnection under stress.
This terminal uses a crimp termination type, providing a strong mechanical and electrical connection.
It is compatible with Micro MATE-N-LOK connector housings.
The maximum contact resistance is 20mΩ, ensuring efficient electrical conductivity.
It is suitable for applications such as PCB connectors, wire-to-wire interconnections, consumer electronics, and LED lighting systems.
The dual beam contact design enhances electrical reliability by ensuring stable connections.
The country of origin for this crimp terminal is India.
Gold plating on the contact surface provides corrosion resistance and improves conductivity, ensuring reliable connections.
