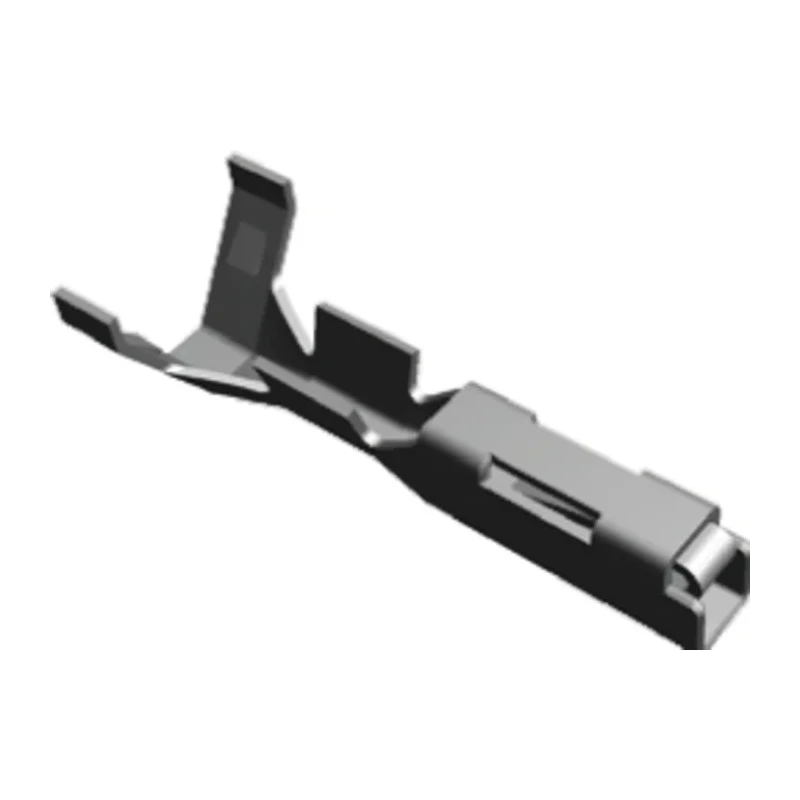

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal, 14A Current, Tin Plating, Copper Alloy, Crimp 175061-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 14A |
| Length | 16mm |
| Model | 175061-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1083PBrand: TE ConnectivityManufacturers Part No.: 175061-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Rated for 14 amperes current capacity ensuring reliable electrical conduction.
- Constructed from copper alloy with tin plated contacts for corrosion resistance.
- Crimp termination type providing a secure wire connection.
- Suitable operating temperature range from -30°C to 105°C for versatile environments.
- 16 mm in length for compact installation within connector assemblies.
- Compatible with MULTILOCK 0.04 and 0.07 series connectors used in automotive and industrial signal applications.
- Snap-in fixing connector cavities enable easy assembly and maintenance.
- Low contact resistance of 1 mΩ max initially supports minimal power loss.
Product Description
TE Connectivity 175061-1 MULTILOCK 040 Series Female Crimp Terminal is a precision-engineered crimp contact designed for reliable electrical connections in hybrid I/O connector housings. It supports wire sizes ranging from 22 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum, making it suitable for signal and power transmission applications requiring robust and low-resistance terminations.
The contact is made from copper alloy with tin plating, providing excellent conductivity and corrosion resistance over extended use in various industrial environments. With a current rating of 14 amperes and a temperature operating range from -30°C to 105°C, it is well suited for demanding automotive, automation, and electronic component interconnection applications.
Its crimp termination ensures a strong mechanical and electrical bond to the wire, while the snap-in fixing connector cavity allows fast and secure mounting within the MULTILOCK 040 connector series. The 16 mm length provides compact spacing suitable for high-density wiring systems.
These connectors are designed primarily for industrial and automotive applications where durable and precise wire-to-board or wire-to-wire connections are necessary. The terminal’s low contact resistance characteristics (1 mΩ max initial) ensure efficient current flow and minimal signal degradation.
Rated for 14A current capacity for reliable electrical performance. Made from copper alloy with tin plated contacts to prevent corrosion. Operating temperature range from -30°C to 105°C suitable for harsh environments. Crimp termination offers secure wire attachment and mechanical strength.
16 mm length compatible with MULTILOCK 040 series connector housings. Snap-in fixing connector cavities facilitate easy assembly. Low initial resistance helps reduce power loss. Ideal for automotive, automation, and electronic industrial uses.
TE Connectivity MULTILOCK connectors are widely used in industrial, automotive, electronic manufacturing, and automation industries, making them an effective choice for high-reliability connector systems. Browse more power connectors and Crimp Terminal solutions for your application on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 14 amperes, ensuring reliable electrical performance in various applications.
The operating temperature range is from -30°C to 105°C, making it suitable for a variety of environments.
It is constructed from copper alloy with tin plating, providing good conductivity and corrosion resistance.
This model supports wire sizes ranging from 22 AWG (0.3 mm²) minimum to 20 AWG (0.5 mm²) maximum.
The terminal has a length of 16 mm, which is compact for installation within connector assemblies.
It utilizes a crimp termination type, ensuring a secure mechanical and electrical connection to the wire.
It is compatible with MULTILOCK 0.04 and 0.07 series connectors, commonly used in automotive and industrial applications.
The maximum contact resistance is 1 mΩ initially, which helps minimize power loss during operation.
It is designed primarily for automotive, automation, and electronic component interconnection applications.
The snap-in fixing connector cavities facilitate easy assembly and maintenance within the connector housing.
The overall resistance is 10 mΩ max after final installation, ensuring efficient current flow.
The MULTILOCK 040 Series Female Crimp Terminal is manufactured in India.
