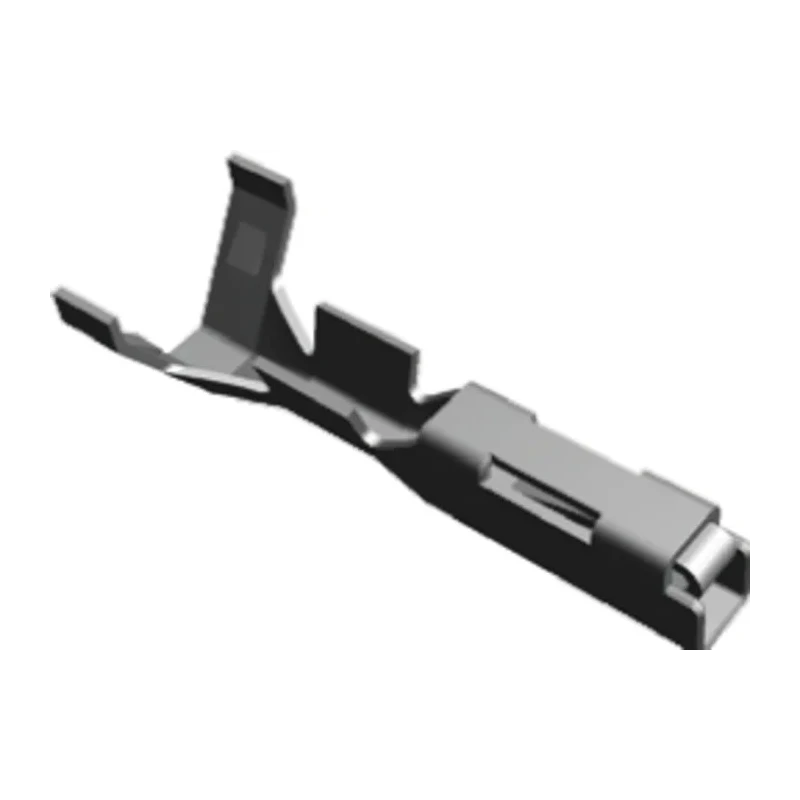

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal 22-20 AWG Copper Alloy Tin Plated 16mm 14A 105°C 175061-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 14A |
| Length | 16mm |
| Model | 175061-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.04/0.07 Hybrid I/O Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-1083Brand: TE ConnectivityManufacturers Part No.: 175061-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Rated for 14A current with a maximum operating temperature of 105°C.
- Constructed of copper alloy with tin plating for durable, corrosion-resistant contacts.
- Compatible with MULTILOCK 0.04/0.07 hybrid I/O connector housing.
- Crimp termination type ensures secure mechanical and electrical connections.
- Compact 16mm length ideal for high-density PCB and wire housing assemblies.
- Operating temperature range from -30°C to 105°C supports varied industrial environments.
- Low contact resistance minimized signal loss and improved performance.
- Snappable connector design enabling easy insertion and removal.
Product Description
TE Connectivity 175061-1 female crimp terminal is part of the MULTILOCK 040 Series, designed to provide high-density, reliable wire-to-wire and wire-to-board electrical connections. The terminal accepts wire sizes from 22 AWG minimum to 20 AWG maximum, made from copper alloy with tin plating to ensure excellent conductivity and corrosion resistance. It is compatible with MULTILOCK 0.04/0.07 hybrid I/O connector housings used extensively in automotive and industrial automation sectors.
The terminal has a rated current of 14 amperes and withstands operating temperatures from -30°C up to 105°C. Its 16mm length and crimp termination type enable secure and mechanically stable connections with low contact resistance, improving signal integrity and overall assembly reliability.
Designed for rugged industrial environments, this contact supports snap-in fixing within connector cavities, simplifying installation and maintenance. Its robust electrical properties, including low-level resistance of 1 mΩ max initially and overall resistance of 10 mΩ max after use, promote high performance in demanding applications.
Common use cases include automotive wiring harnesses, industrial automation control panels, electronic manufacturing, and PCB wiring solutions requiring compact, high-quality crimp contacts.
Rated for 14A current with maximum 105°C temperature tolerance. Copper alloy contact with tin plating for durability and conductivity. Compatible with MULTILOCK 040 & 070 Series connectors. Crimp terminations enable reliable mechanical and electrical connections.
Supports wire sizes from 22 AWG to 20 AWG. Snap-in fixing feature for easy assembly and maintenance. Low initial and overall contact resistance ensures signal quality. Wide operating temperature range suitable for harsh environments.
Widely used in automotive, automation, and electronic industries.
Explore EnvMart’s extensive catalog of power connectors and Crimp Terminals for comprehensive solutions tailored to industrial, laboratory, construction, and manufacturing applications. Discover quality, durability, and performance with TE Connectivity’s MULTILOCK Series products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal has a rated current of 14 amperes.
It operates within a temperature range of -30°C to 105°C.
It is compatible with wire sizes from 22 AWG (0.3 mm²) to 20 AWG (0.5 mm²).
The contact material is copper alloy with tin plating for corrosion resistance and conductivity.
The length of this terminal is 16 mm, making it suitable for high-density applications.
Yes, it is compatible with MULTILOCK 0.04/0.07 hybrid I/O connector housings.
It uses a crimp termination type, ensuring secure mechanical and electrical connections.
The low-level resistance is 1 mΩ max initially, promoting high performance.
The overall resistance is 10 mΩ max after use, ensuring good signal integrity.
Common applications include automotive wiring harnesses, industrial automation control panels, and PCB wiring solutions.
The country of origin for this terminal is India.
The snap-in fixing design allows for easy insertion and removal, simplifying installation and maintenance.
