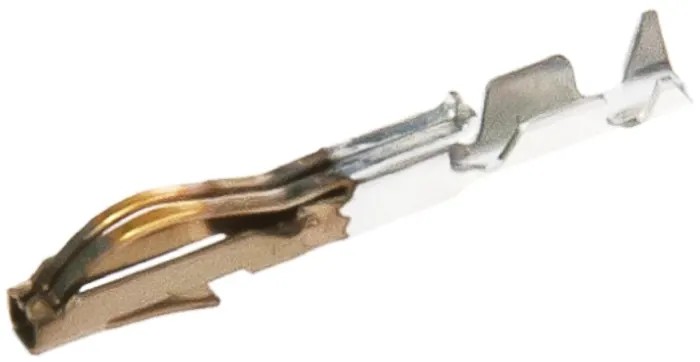

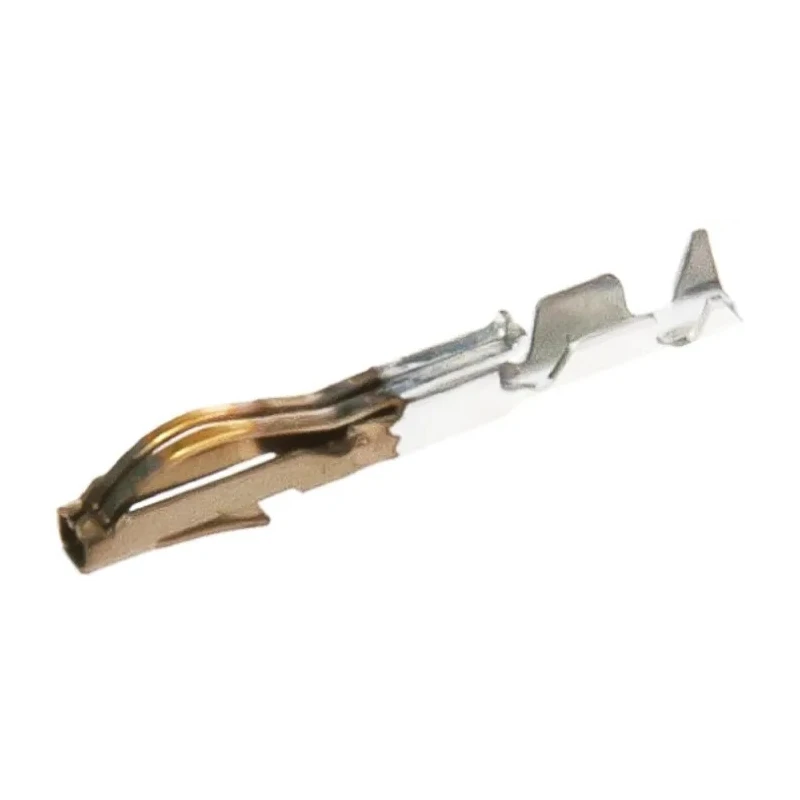

TE Connectivity Twin Leaf Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max, Gold Plated Phosphor Bronze 5-583853-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 17.27mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Twin Leaf |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | 2.54 mm Crimp Snap Twin Leaf Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 720-0692Brand: TE ConnectivityManufacturers Part No.: 5-583853-3 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Designed for use with 2.54 mm Crimp Snap Twin Leaf Connector Housing.
- Supports currents up to 5 amperes ensuring efficient electrical connectivity.
- Gold-plated contacts provide corrosion resistance and enhanced conductivity.
- Suitable for wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²).
- Phosphor bronze contact material ensures durability and mechanical strength.
- Operating temperature range from -55°C to 105°C supports diverse environmental conditions.
- Compact length of 17.27 mm fits standard connector applications.
- Termination through secure crimping offers consistent and reliable connections.
Product Description
TE Connectivity 5-583853-3 Female Crimp Terminal from the Twin Leaf Series is engineered for precise crimp terminations of 24 to 20 AWG wires. Featuring gold-plated phosphor bronze contacts, this terminal ensures superior conductivity and long-lasting corrosion resistance within electrical connectors that operate at currents up to 5A.
Its compatibility with 2.54 mm Crimp Snap Twin Leaf Connector Housings makes it an ideal component in PCB connectors and wire housing assemblies, widely used in electronics manufacturing and assembly.
The terminal sustains performance over a broad temperature range from -55°C to 105°C, suited for industrial, automation, and control applications where environmental conditions vary.
With a length of 17.27 mm, it provides a compact footprint ensuring easy integration within tight connector assemblies. The crimp termination type facilitates strong physical and electrical connections for secure use in power connectors and electronic components.
Designed for use with 2.54 mm Crimp Snap Twin Leaf Connector Housing. Supports currents up to 5 amperes ensuring efficient electrical connectivity. Gold-plated contacts provide corrosion resistance and enhanced conductivity.
Suitable for wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²). Phosphor bronze contact material ensures durability and mechanical strength. Operating temperature range from -55°C to 105°C supports diverse environmental conditions.
Compact length of 17.27 mm fits standard connector applications. Termination through secure crimping offers consistent and reliable connections.
This Crimp Terminal suits industrial electronic assembly, power distribution, data communications, and control systems requiring durable and reliable contact performance. Exploring similar TE Connectivity products on EnvMart will assist in selecting compatible components for comprehensive connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current of 5 amperes, ensuring efficient electrical connectivity.
It is suitable for wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²).
The operating temperature range for this terminal is from -55°C to 105°C, making it suitable for diverse environmental conditions.
The contacts are made of gold-plated phosphor bronze, which provides corrosion resistance and enhanced conductivity.
The length of this crimp terminal is 17.27 mm, allowing for easy integration within tight connector assemblies.
This model uses a crimp termination type, which facilitates strong physical and electrical connections.
Yes, it is designed for use with 2.54 mm Crimp Snap Twin Leaf Connector Housings.
The maximum contact resistance for this crimp terminal is 10 mΩ, ensuring reliable electrical performance.
This terminal is suitable for industrial electronic assembly, power distribution, data communications, and control systems.
This crimp terminal is female, designed for specific connector applications.
The country of origin for this crimp terminal is India.
Gold-plated contacts provide corrosion resistance and enhanced conductivity, which improves overall performance in electrical connections.
