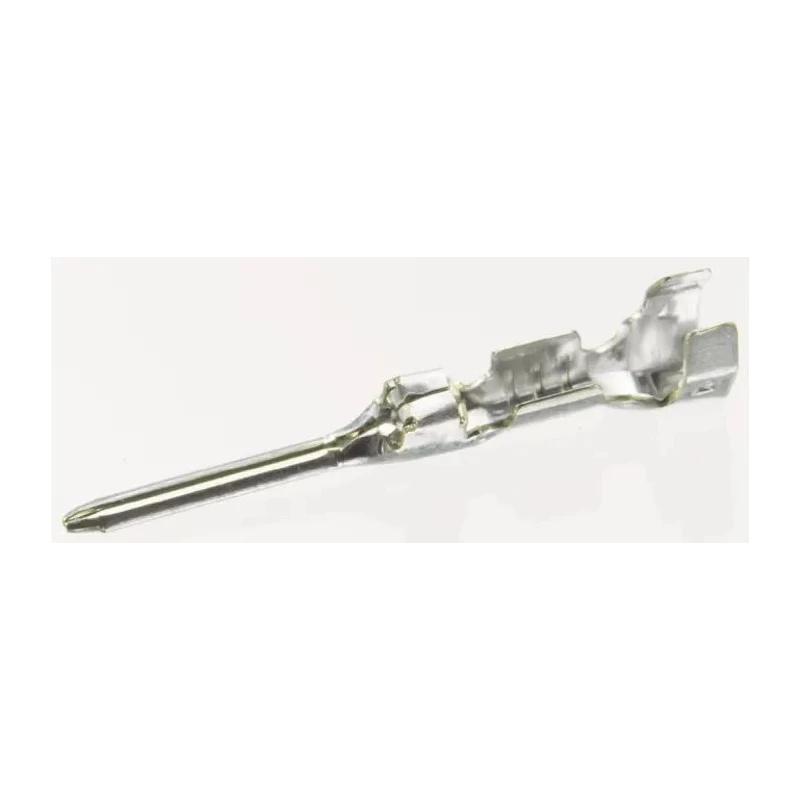

TE Connectivity MULTILOCK 025 Series Male Crimp Terminal 4A Current Tin Plated Copper Alloy 21.3mm 20 AWG to 24 AWG 1376607-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 4A |
| Length | 21.3mm |
| Gender | Male |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 025 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 025 Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-9163Brand: TE ConnectivityManufacturers Part No.: 1376607-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 24AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- This terminal is suitable for use with MULTILOCK 025 Connector Housing providing reliable mechanical connection.
- Constructed from high-quality copper alloy with tin plating for corrosion resistance.
- It operates effectively in temperatures ranging from -30°C to 105°C.
- The crimp termination type ensures secure and stable cable connections.
- Designed to meet industrial automation requirements with dependable performance.
- Low contact resistance with a maximum initial resistance of 1 mΩ and overall resistance of 10 mΩ.
Product Description
TE Connectivity 1376607-1 MULTILOCK 025 Series Male Crimp Terminal is a high-density electrical connector component designed for wire-to-wire or wire-to-board applications in industrial automation and automotive systems. It is suitable for male contact applications where a solid mechanical and electrical connection is required.
This Crimp Terminal is made from a durable copper alloy with a tin plating on the contact surface, enhancing corrosion resistance and electrical conductivity. The terminal supports wire sizes ranging from a minimum of 20 AWG (0.2mm²) to a maximum of 24 AWG (0.5mm²), making it versatile for a range of cable sizes.
Rated to carry currents up to 4 amperes, it ensures reliable signal and power transmission. The operating temperature range from -30°C to 105°C enables use in various industrial and environmental conditions. The length of the terminal is precisely 21.3 mm, suitable for compact connector housings.
The MULTILOCK 025 series is known for its snap-in crimp contacts designed to fit into MULTILOCK 025 connector housings, offering quick and secure assembly with minimal tool requirements. This assembly supports low-level resistance with a maximum of 1 mΩ initially and an overall resistance of 10 mΩ, ensuring minimal signal loss and optimum performance.
Common applications include automation industry, automotive wiring harnesses, and other electronic components requiring reliable, compact, and efficient connection solutions. Installation efficiency is enhanced by crimp termination technology, providing robust contact fixing and electrical continuity.
Supports cable connections with MULTILOCK 025 connector housing. Current rating up to 4A for moderate power or signal transmission. Copper alloy construction with tin plating for durability and conductivity. Wide operating temperature range from -30°C to 105°C.
Snap-in crimp contact design for easy installation. Connector length 21.3 mm for compact assemblies. Low contact resistance features for reliable electrical performance. Explore more TE Connectivity components for advanced industrial, automotive, and electronics manufacturing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is rated to carry currents up to 4 amperes, ensuring reliable signal and power transmission.
It operates effectively in temperatures ranging from -30°C to 105°C, making it suitable for various industrial and environmental conditions.
This model supports wire sizes ranging from 20 AWG (0.2mm²) to 24 AWG (0.5mm²), providing versatility for different cable sizes.
It features a crimp termination type, which ensures secure and stable cable connections for reliable performance.
The terminal has a precise length of 21.3 mm, suitable for compact connector housings.
The terminal is constructed from a copper alloy with tin plating on the contact surface, enhancing corrosion resistance and electrical conductivity.
The maximum initial contact resistance is 1 mΩ, ensuring minimal signal loss and optimum performance.
It is designed for use with MULTILOCK 025 connector housing, providing a reliable mechanical connection.
Common applications include the automation industry, automotive wiring harnesses, and other electronic components requiring reliable connections.
The overall resistance is a maximum of 10 mΩ, ensuring dependable electrical performance.
This terminal is a male type, designed for male contact applications in various electrical connections.
The country of origin for this terminal is India.
