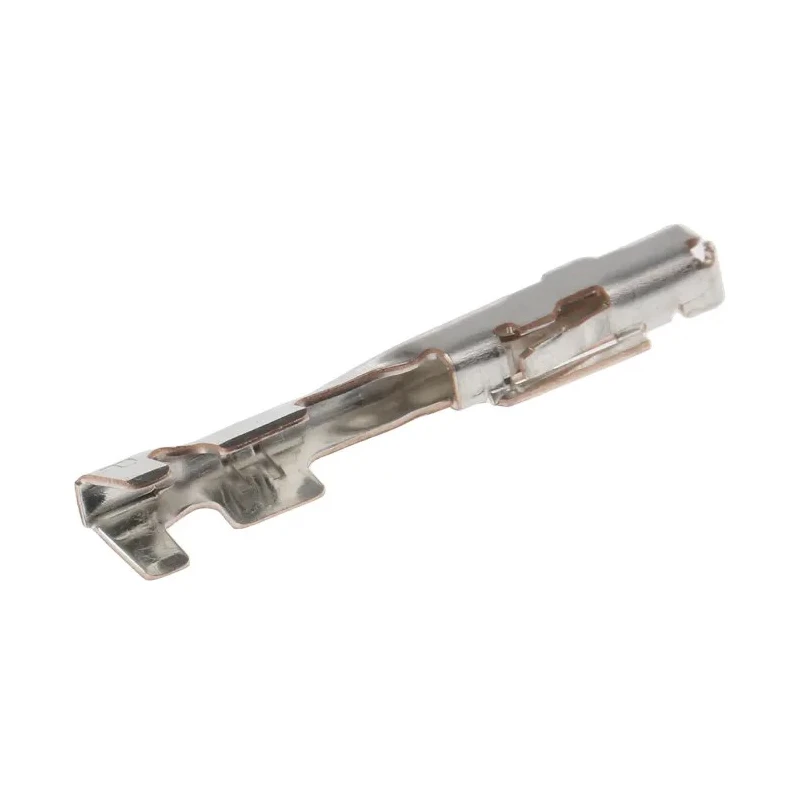

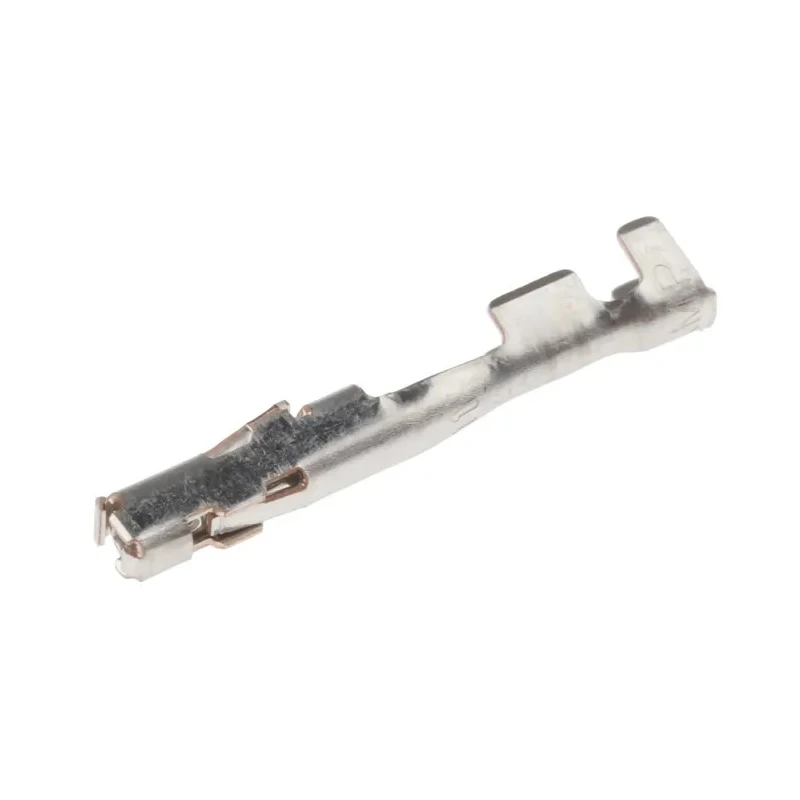

TE Connectivity MULTILOCK 025 Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max, Tin Plated Copper Alloy 1318143-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 15A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | MULTILOCK 025 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 025 Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-9150PBrand: TE ConnectivityManufacturers Part No.: 1318143-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Designed for use with MULTILOCK 025 Connector Housing.
- Suitable for 24 AWG minimum to 20 AWG maximum wire size.
- Constructed with copper alloy contacts plated with tin for excellent conductivity and corrosion resistance.
- Terminated via crimp for secure and durable connections.
- Rated for a current capacity of 15 amps with operating temperatures from -30°C to 105°C.
- Features snap-in fixing for reliable mechanical connection.
- Ideal for automotive and automation industry applications requiring miniaturized high density connectors.
- Provides low contact resistance ensuring signal integrity.
Product Description
TE Connectivity 1318143-1 MULTILOCK 025 Series Female Crimp Terminal is engineered for precision and reliability in wire-to-wire and wire-to-board I/O connections within automotive, industrial automation, and electronics manufacturing sectors. The female crimp terminal is tailored to fit the MULTILOCK 025 Connector Housing, supporting wire gauges from 24 AWG up to 20 AWG, providing flexibility to suit various cable applications.
Constructed from copper alloy with tin plating, this terminal offers enhanced conductivity and corrosion resistance, ideal for demanding electrical environments. The crimp termination assures a robust mechanical and electrical connection, complemented by snap-in fixing for easy assembly and secure retention within connector cavities.
The terminal supports a continuous current rating of 15A and operates reliably across a temperature range of -30°C to 105°C. Its design ensures low contact resistance, with an initial maximum of 1 milliohm and overall resistance not exceeding 10 milliohms, ensuring minimal signal loss and efficient power transmission.
Highly suitable for automotive industry applications, these connectors enable high density cabling solutions with 2.5mm contact centers, facilitating compact, efficient wiring harnesses. The MULTILOCK 025 series typically supports wire-to-wire and wire-to-board connectivity, making it versatile across various electrical systems.
Designed for MULTILOCK 025 Connector Housing compatibility. Female crimp contact made from copper alloy with tin plating for durability. Supports 24 AWG to 20 AWG wire sizes with crimp termination. Rated current capacity of 15 amperes and operating temperatures between -30°C and 105°C.
Snap-in fixing design allows secure connector assembly. Low contact resistance ensures reliable signal and power transmission. Compact form factor with 2.5mm contact centers for high density wiring. Ideal for automotive, industrial automation, and electronics manufacturing applications requiring miniature high-density connectors.
This product is classified under Power Connectors and Crimp Terminal categories. For professionals seeking reliable, high-quality connectors for electronic assembly tasks, TE Connectivity MULTILOCK 025 Series Female Crimp Terminal offers an optimal solution.
Explore more power connectors and Crimp Terminals on EnvMart for advanced industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current capacity of 15A.
It supports wire sizes from 24 AWG minimum to 20 AWG maximum.
The operating temperature range is from -30°C to 105°C.
The terminal is constructed from copper alloy and features tin plating for enhanced conductivity and corrosion resistance.
Connection is made via crimp termination, ensuring a secure and durable connection.
This terminal is designed for use with MULTILOCK 025 Connector Housing.
The initial maximum contact resistance is 1 milliohm, with overall resistance not exceeding 10 milliohms.
It is ideal for applications in the automotive, industrial automation, and electronics manufacturing sectors.
It features a snap-in fixing design for secure connector assembly.
The 2.5mm contact centers facilitate compact, high-density wiring solutions.
The country of origin for this terminal is India.
The maximum operating temperature is 105°C.
