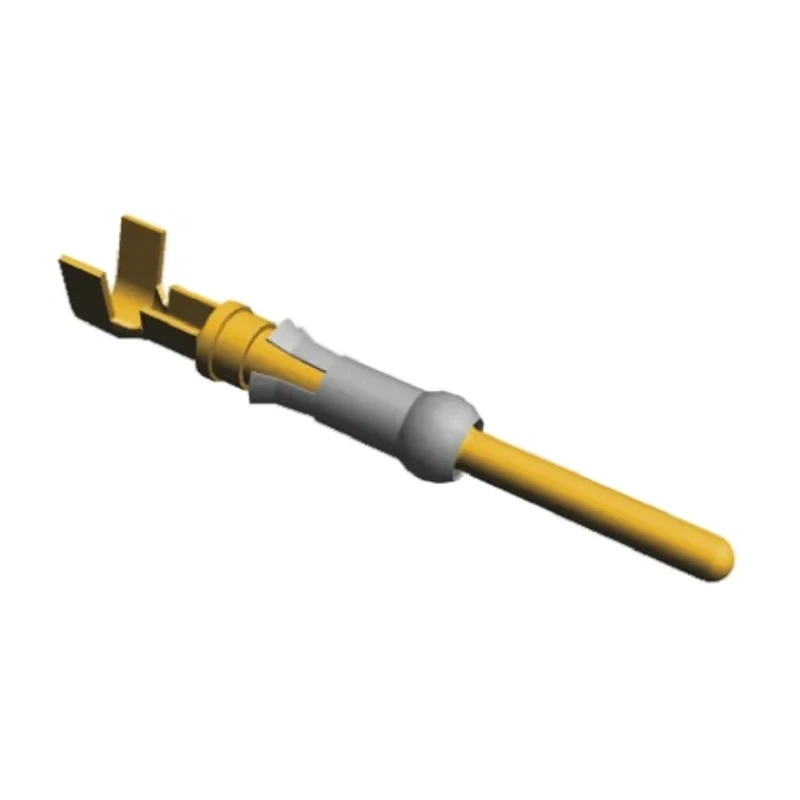

TE Connectivity Type III Series Male Crimp Terminal 24 AWG Min Crimp, 20 AWG Max, Gold Plated Brass Contact 66566-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 125A |
| Length | 26.42mm |
| Model | 66566-4 |
| Gender | Male |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | CPC and M Series Connector Housings |
| Standards/Approvals | EU RoHS 2011/65/EU, EU ELV 2000/53/EC |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-6574PBrand: TE ConnectivityManufacturers Part No.: 66566-4 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Compatible with CPC and M Series Connector Housings providing reliable connectivity.
- Rated for a current of 125A ensuring high power applications.
- Gold plated contact ensures low resistance and enhanced corrosion resistance.
- Features a crimp termination type designed for secure wire retention.
- Operates over a temperature range of -40°C to 105°C for reliable performance in harsh environments.
- Durable brass contact material offers mechanical strength and electrical conductivity.
- Compact length of 26.42mm facilitating easy installation in confined spaces.
- Compliant with EU RoHS 2011/65/EU and EU ELV 2000/53/EC environmental standards.
Product Description
TE Connectivity 66566-4 Type III Series Male Crimp Terminal is a high-performance connector designed for wire sizes ranging from 24 AWG minimum to 20 AWG maximum. It features a gold plated brass contact material ensuring excellent conductivity and corrosion resistance, critical for high-reliability industrial and electronic applications.
This male crimp terminal is intended for use with CPC and M Series Connector Housings, commonly deployed in power connector assemblies requiring secure and consistent electrical connections. Rated for a continuous current of 125A, it supports demanding power transmission needs in industrial, manufacturing, and HVAC environments.
The terminal supports a wide operating temperature range from -40°C to 105°C, making it suitable for applications exposed to temperature extremes. Its 26.42mm length allows integration into compact assemblies. The crimp termination type ensures strong mechanical and electrical connection to the wire, safeguarding against vibration and mechanical stress.
TE Connectivity Multimate Series II and III uninsulated signal contacts, including this terminal, offer a high normal force contact design providing low resistance in critical dry circuit signal and power applications. The mating entry is closed-ended to prevent damage from misalignment, and the stainless steel spring offers superior retention in connector housings.
Compatible with CPC and M Series Connector Housings. Rated current of 125A ensures suitability for power applications. Gold plating enhances corrosion resistance and electrical conductivity. Crimp termination offers robust mechanical and electrical connection.
Brass contact material provides durability and strength. Wide temperature range supports varied industrial environments. Compact 26.42mm length for space-constrained applications. Compliance with EU RoHS and ELV directives ensures environmental safety.
This Crimp Terminal is optimized for use in electronic components, power and connectors sectors across diverse industrial, laboratory, manufacturing, and HVAC applications. It is designed to improve production efficiency when integrated into machinery or electronic assemblies.
Discover a wide range of quality crimp contacts and connectors on EnvMart for industrial and electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This male crimp terminal is rated for a continuous current of 125A, making it suitable for high power applications.
It accommodates wire sizes ranging from 24 AWG minimum to 20 AWG maximum, allowing for versatile usage in various applications.
The terminal has a compact length of 26.42mm, facilitating easy installation in confined spaces.
The contact material is brass, which provides mechanical strength and electrical conductivity, while the contact is gold plated for enhanced corrosion resistance.
It operates effectively over a temperature range of -40°C to 105°C, making it suitable for harsh environments.
Yes, it complies with EU RoHS 2011/65/EU and EU ELV 2000/53/EC environmental standards, ensuring safety and environmental responsibility.
It features a crimp termination type designed for secure wire retention, ensuring a strong mechanical and electrical connection.
This model is compatible with CPC and M Series Connector Housings, commonly used in power connector assemblies.
The gold plating enhances electrical conductivity and provides corrosion resistance, which is critical for reliable performance in industrial applications.
It is optimized for use in electronic components, power connectors, and various industrial, laboratory, manufacturing, and HVAC applications.
The crimp terminal is manufactured in India, ensuring compliance with specific regional manufacturing standards.
The model number for this terminal is 66566-4, which can be referenced for ordering and compatibility checks.
