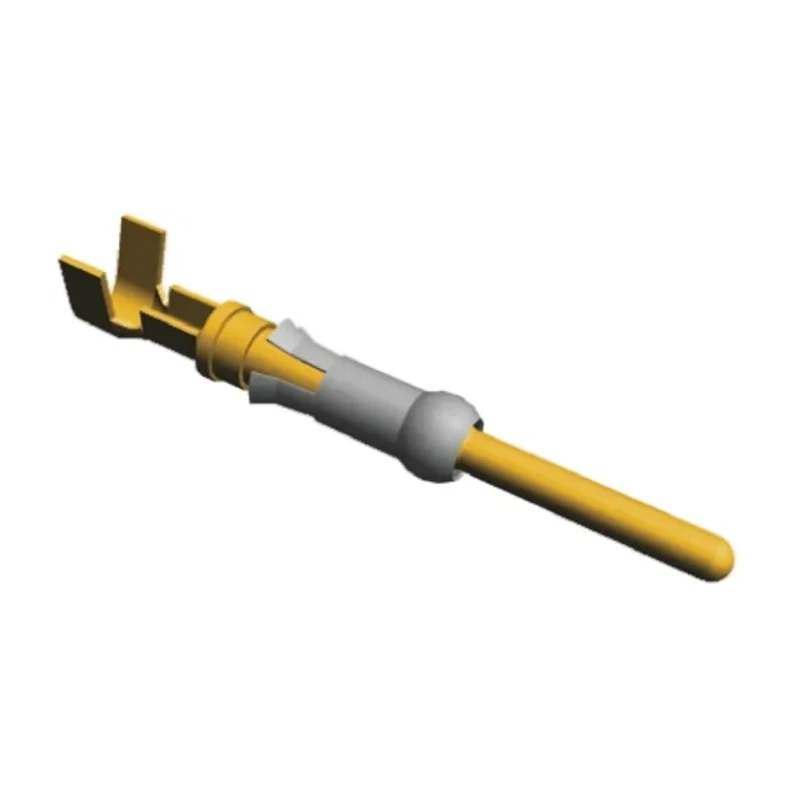

TE Connectivity Type III Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max, Brass Contact with Gold Plating 66566-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 125A |
| Length | 26.42mm |
| Model | 66566-4 |
| Gender | Male |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | CPC and M Series Connector Housings |
| Standards/Approvals | EU RoHS 2011/65/EU, EU ELV 2000/53/EC |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- The contact is made from durable brass material ensuring reliability.
- Gold plating provides excellent corrosion resistance and electrical conductivity.
- Designed for use with CPC and M Series connector housings.
- Rated for current carrying capacity of 125 amperes.
- Terminated using crimp technique for secure connection.
- Operating temperature range is from -40°C to 105°C allowing use in varied environments.
- Overall terminal length is 26.42 millimeters for compact installation.
- Complies with EU RoHS 2011/65/EU and EU ELV 2000/53/EC environmental standards.
Product Description
TE Connectivity 66566-4 Type III Series Male Crimp Terminal is a high-quality connector component designed for reliable electrical connections in industrial and electronic applications. Featuring a robust brass contact material with gold plating, this terminal offers superior conductivity and corrosion resistance essential for high-performance assemblies.
This terminal is specifically engineered for compatibility with CPC and M Series connector housings, making it adaptable for a variety of electronic systems. With a current rating of 125 amperes, it ensures efficient power transfer in demanding situations.
The terminal accommodates wire sizes ranging from 24 AWG (0.2 mm²) minimum up to 20 AWG (0.6 mm²) maximum, enabling versatile usage across differing cable gauges. Termination is performed via crimping, providing a secure and stable mechanical and electrical connection.
Temperature tolerance ranges from -40°C to 105°C, ensuring dependable operation in harsh and fluctuating thermal environments common in industrial, automotive, and aerospace sectors. The compact length of 26.42 mm supports tight assembly constraints without compromising performance.
The contact is made from durable brass, ensuring long-term mechanical and electrical reliability. Gold plating enhances corrosion resistance and lowers contact resistance. Designed for use with CPC and M Series connector housings for easy integration.
Supports crimp termination for secure and dependable connections. Operates reliably within a broad temperature range of -40°C to 105°C. Current rating of 125A suits medium to high power electronic systems. Meets EU RoHS and ELV environmental compliance standards.
This product serves vital roles in electronics manufacturing, industrial machinery assembly, automation systems, and PCB wiring harnesses. It is ideal for sectors requiring consistent, quality power connections with minimal maintenance.
Discover more quality connectors and components in the Electronics & Electricals section at EnvMart for your varied industrial and lab applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal has a current carrying capacity of 125 amperes, making it suitable for medium to high power electronic systems.
It operates reliably within a temperature range of -40°C to 105°C, allowing for use in various environmental conditions.
This terminal accommodates wire sizes ranging from 24 AWG (0.2 mm²) minimum up to 20 AWG (0.6 mm²) maximum.
The contact is made from brass, and it features gold plating for enhanced corrosion resistance and electrical conductivity.
It is specifically designed for use with CPC and M Series connector housings, ensuring compatibility with various electronic systems.
The overall length of this terminal is 26.42 millimeters, supporting compact installations.
Termination is performed using a crimp technique, providing a secure and stable mechanical and electrical connection.
It complies with EU RoHS 2011/65/EU and EU ELV 2000/53/EC environmental standards.
This terminal is a male crimp terminal, designed for specific mating with compatible connectors.
This terminal serves vital roles in electronics manufacturing, industrial machinery assembly, automation systems, and PCB wiring harnesses.
The country of origin for this terminal is India.
The contact plating is gold, which enhances corrosion resistance and decreases contact resistance for improved performance.
