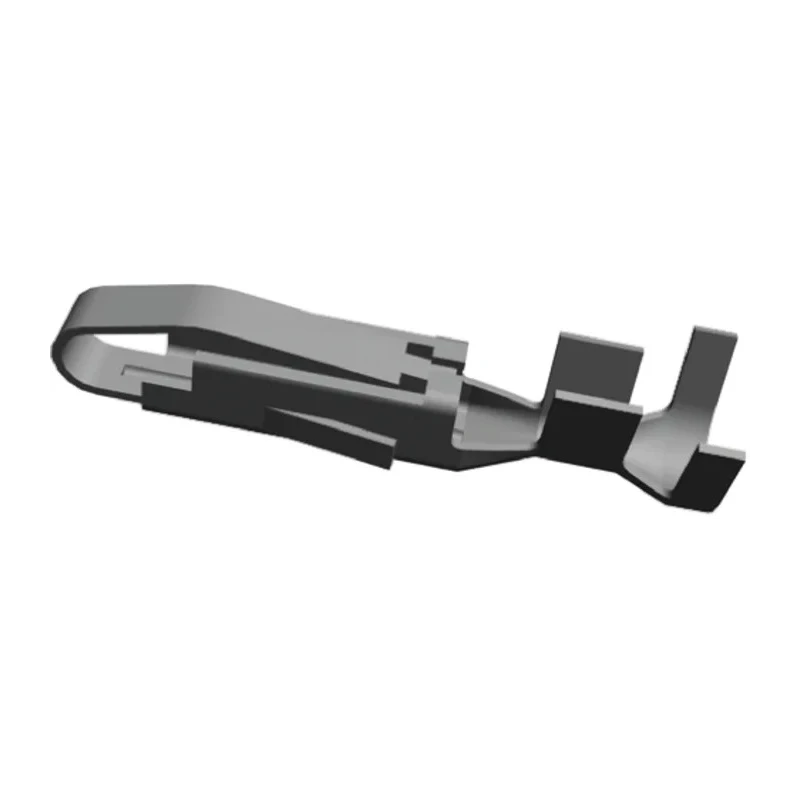

TE Connectivity Low Power Drawer Series Female Crimp Terminal, 7A Current, 18 AWG Min, 14 AWG Max, Gold Plated 170314-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Length | 21mm |
| Model | 170314-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Low Power Drawer |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Standard Blind-Mate Drawer Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-4837Brand: TE ConnectivityManufacturers Part No.: 170314-1 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.9mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 14AWG |
Key Features
- Designed for use with standard blind-mate drawer connector housing.
- Current rating of 7 amps suitable for low power applications.
- Contacts feature gold plating for enhanced conductivity and corrosion resistance.
- Constructed from phosphor bronze material for durability and electrical performance.
- Termination type is crimp snap-in contact, ensuring secure and easy installation.
- Operational temperature range from -30°C to 105°C allows use in varied environments.
- Compact length of 21 mm facilitates integration in space-constrained assemblies.
- No specific industry standards or approvals are listed for this part.
Product Description
TE Connectivity 170314-1 is a female crimp terminal designed for the Low Power Drawer series of PCB connectors, providing a secure and reliable electrical connection for wire sizes 18 AWG to 14 AWG and supporting a current of 7A. The contact is gold plated and made from phosphor bronze, ensuring excellent conductivity and corrosion resistance.
This crimp terminal is intended for standard blind-mate drawer connector housings, making it suitable for quick and robust connection and disconnection processes in electronics assembly. The termination type is crimp, providing a firm mechanical and electrical connection.
Operating temperature ranges from -30°C to 105°C, allowing this terminal to function effectively in a broad array of industrial, commercial, and telecommunications environments. Its compact 21 mm length facilitates use in assemblies where space is limited.
The product does not have specific industry certifications but is designed to meet typical performance and durability expectations for power connector contacts. Designed for standard blind-mate drawer connector housing interface.
Supports wire sizes from 18 AWG (0.9 mm²) up to 14 AWG (2 mm²). Gold plating enhances corrosion resistance and electrical performance. Phosphor bronze contact material provides mechanical durability. Crimp snap-in termination allows for secure, fast installation.
Operates reliably between -30°C and 105°C. Compact 21 mm length suitable for integration in constrained spaces. Rated for 7A current in low power electronic applications.
This Crimp Terminal is widely used in electronics manufacturing, telecommunications equipment, and industrial control systems. It delivers reliable connections to improve signal integrity and operational stability. Suitable for both prototype and mass-production uses.
Explore a wide range of power connectors and accessories in the Electronics & Electricals category at EnvMart for comprehensive connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 7A, making it suitable for low power applications.
It can accommodate wire sizes from 18 AWG (0.9 mm²) to 14 AWG (2 mm²).
The terminal has a compact length of 21 mm, facilitating integration in space-constrained assemblies.
The contact material is phosphor bronze, and it features gold plating for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -30°C to 105°C.
It uses a crimp snap-in termination type, ensuring a secure and easy installation.
Yes, it is designed for use with standard blind-mate drawer connector housings.
No specific industry standards or approvals are listed for this part.
It is widely used in electronics manufacturing, telecommunications equipment, and industrial control systems.
This terminal is a female crimp terminal.
The gold plating enhances corrosion resistance and improves electrical performance.
The country of origin for this crimp terminal is India.
