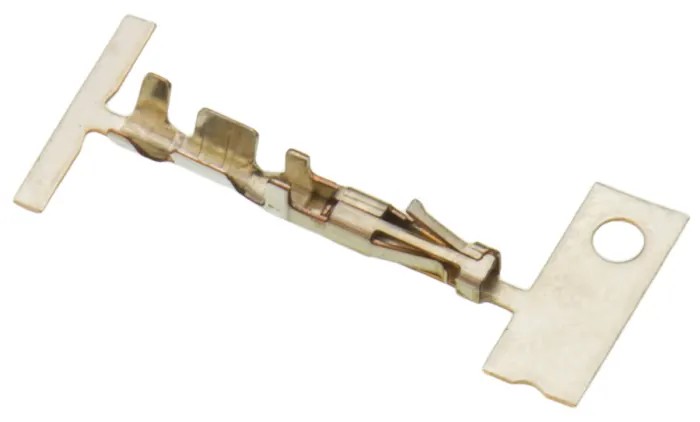

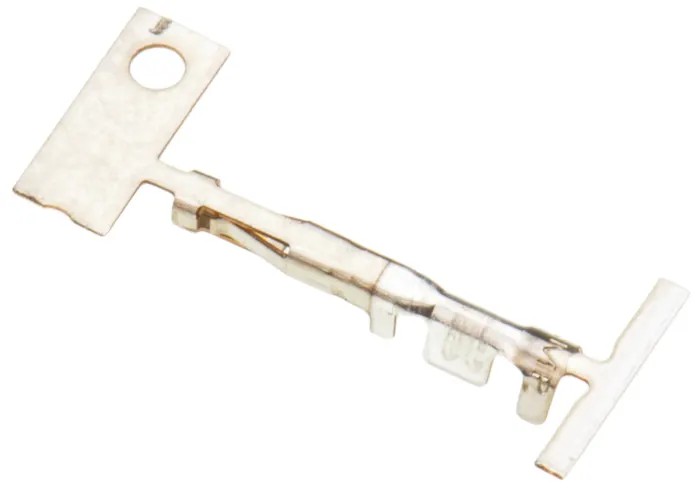

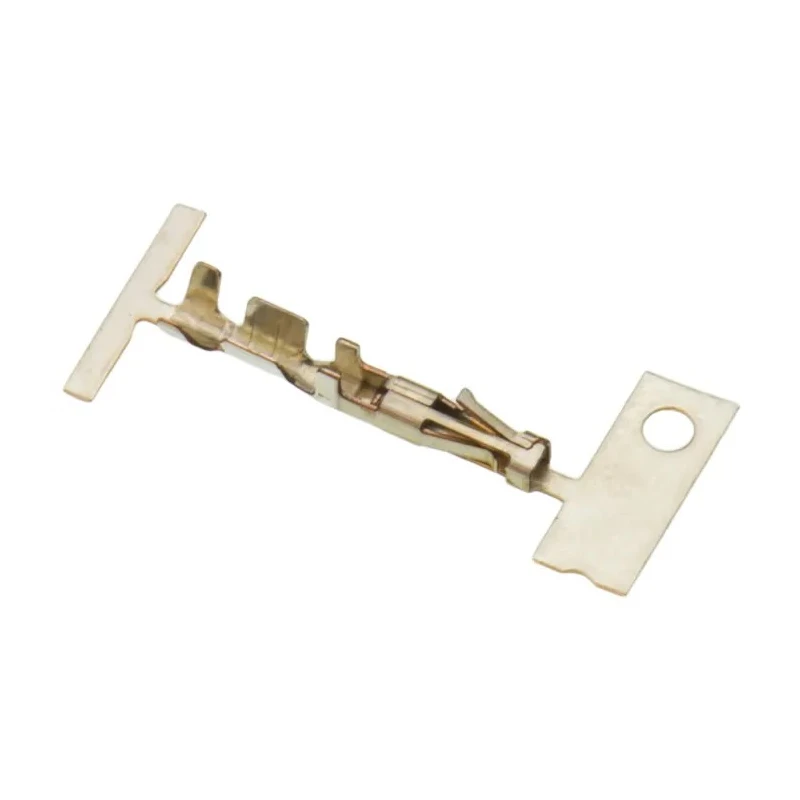

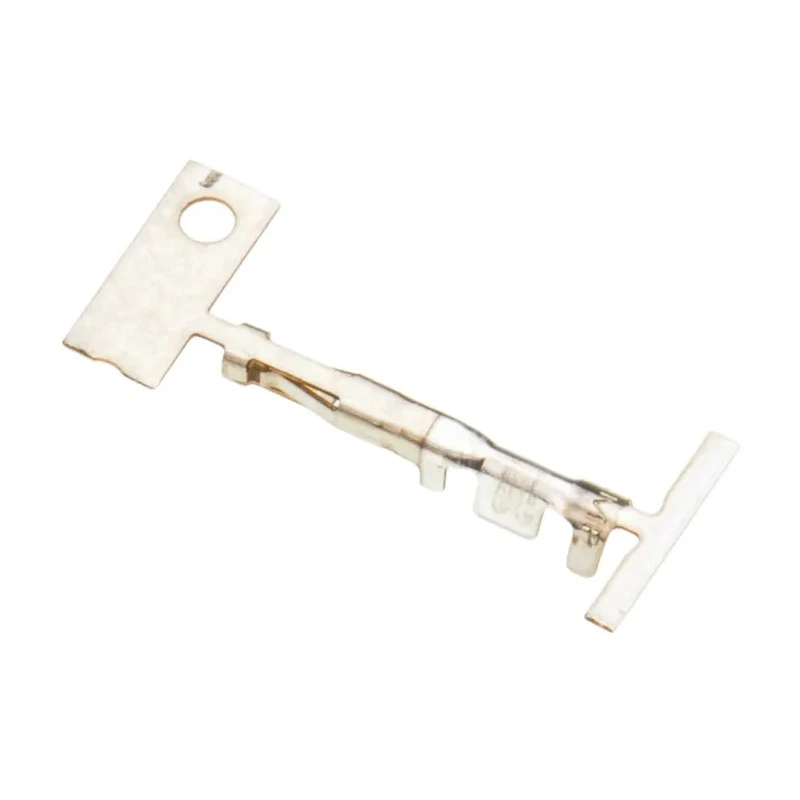

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min Crimp 20 AWG Max Current 5A 1-794606-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-0510PBrand: TE ConnectivityManufacturers Part No.: 1-794606-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Compatible with Micro MATE-N-LOK connector housings for secure connections.
- Features dual beam contact design ensuring electrical reliability.
- Locking lance mechanism provides secure retention within connector housings.
- Constructed from phosphor bronze with gold plating for durability and conductivity.
- Rated for operating temperatures from -40°C to 105°C.
- Crimp termination type suitable for precise wire termination.
- Maximum contact resistance of 20 milliohms for efficient electrical performance.
- Ideal for industrial and electronic applications requiring wire-to-wire and wire-to-board connections.
Product Description
TE Connectivity 1-794606-2 Micro MATE-N-LOK Series Female Crimp Terminal is a precision-engineered crimp contact designed to fit Micro MATE-N-LOK connector housings. It supports wire sizes ranging from 24 AWG to 20 AWG and can handle a maximum current of 5 amps, making it suitable for various industrial and electronic applications.
These Crimp Terminals feature a dual beam contact design that ensures reliable electrical connectivity and a locking lance mechanism that securely holds the terminal in the housing, preventing accidental disconnection. The contact material is phosphor bronze, plated with gold to enhance conductivity and corrosion resistance, which extends the product's operational life.
The terminals support crimp termination methods for secure wire connections and exhibit low contact resistance, not exceeding 20 milliohms, which contributes to overall system efficiency. The operating temperature range from -40°C to 105°C allows use in a wide range of environmental conditions.
The Micro MATE-N-LOK 3mm connector system, of which this terminal is a component, is widely used in wire-to-wire and wire-to-board applications across industrial, consumer electronics, and LED lighting sectors. Its compact 3mm centerline pitch and low-profile design facilitate usage in space-constrained projects.
Compatible with Micro MATE-N-LOK connector housing. Dual beam contact design enhances electrical reliability. Locking lance mechanism secures the terminal within the housing. Phosphor bronze contact material with gold plating.
Crimp termination for effective wire connection. Operating temperature range from -40°C to 105°C. Maximum contact resistance of 20 milliohms. Supports wire sizes from 24 AWG to 20 AWG.
This product is ideal for use in industrial manufacturing, electronics assembly, telecommunications, automotive circuits, and lighting applications that require dependable low-current connections. For a comprehensive range of high-quality electronic components, including connectors and terminals, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 5 amps.
This terminal is compatible with wire sizes ranging from 24 AWG to 20 AWG.
The operating temperature range for this model is from -40°C to 105°C.
The terminal is constructed from phosphor bronze and features gold plating for enhanced conductivity and corrosion resistance.
It features a locking lance mechanism that securely retains the terminal within the connector housing, preventing accidental disconnection.
The maximum contact resistance for this crimp terminal is 20 milliohms.
This terminal uses a crimp termination type suitable for precise wire connections.
This terminal is compatible with Micro MATE-N-LOK connector housings.
It is suitable for various industrial and electronic applications, including wire-to-wire and wire-to-board connections.
The terminal features a dual beam contact design that ensures reliable electrical connectivity.
The country of origin for this product is India.
The gold plating enhances conductivity and provides corrosion resistance, contributing to the terminal's operational life.
