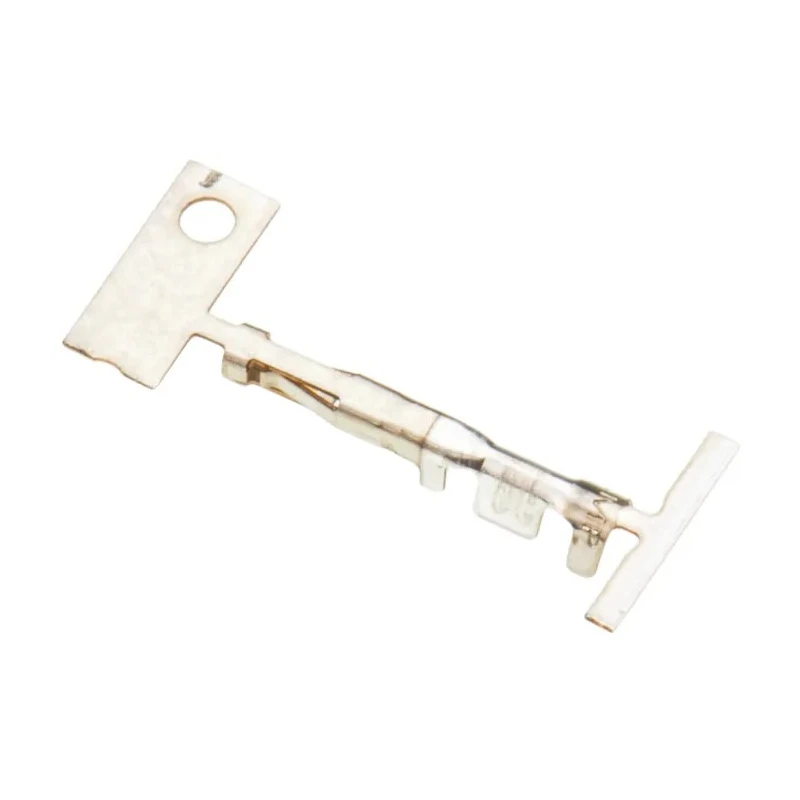

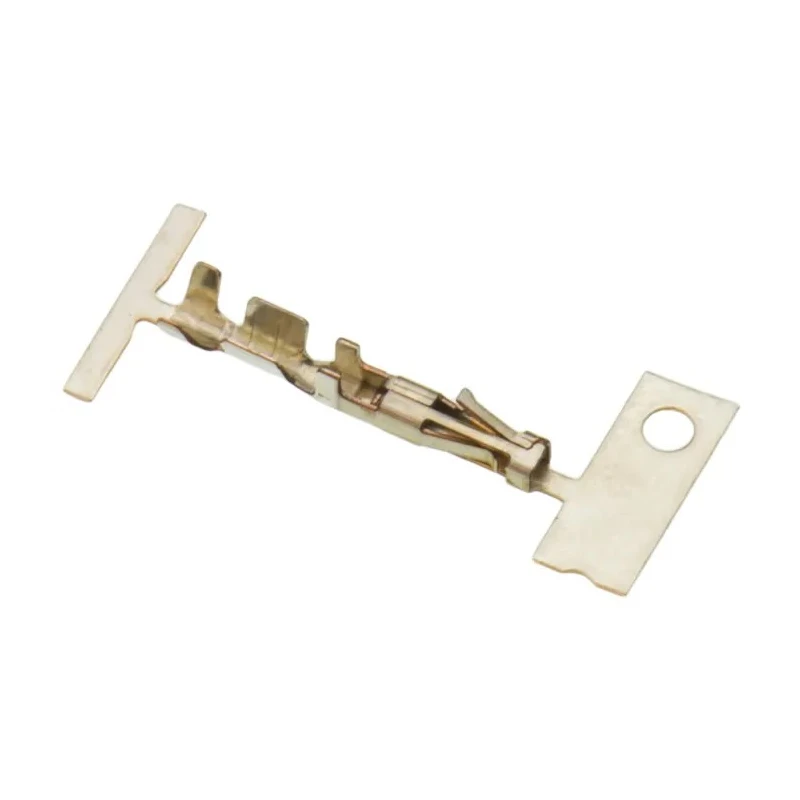

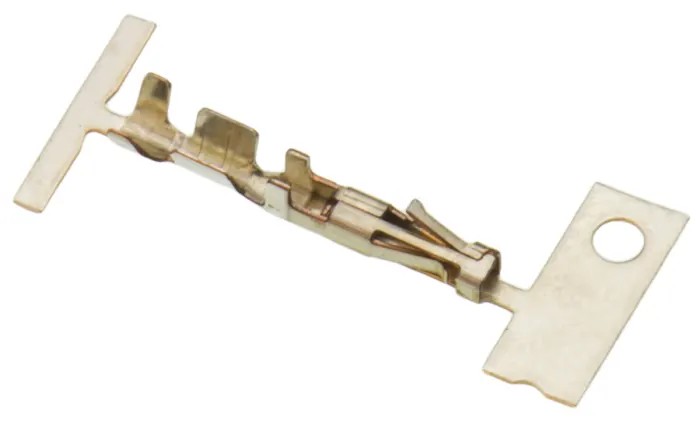

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal Gold Plated Phosphor Bronze 5A 24-20 AWG 1-794606-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-0510Brand: TE ConnectivityManufacturers Part No.: 1-794606-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Dual beam contact design ensures excellent electrical reliability.
- Locking lance mechanism secures the contact firmly within the connector housing.
- Gold plating on phosphor bronze material offers enhanced corrosion resistance.
- Compatible with Micro MATE-N-LOK connector housings.
- Supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum.
- Rated for a maximum current of 5 amperes.
- Termination type is crimp for secure wire attachment.
- Operates safely between -40°C and 105°C.
Product Description
TE Connectivity 1-794606-2 Micro MATE-N-LOK Series Female Crimp Terminal is engineered to provide stable and secure electrical connections in industrial and electronic applications. This crimp contact features a dual beam contact design that enhances electrical reliability and minimizes resistance during operation.
The contact is fashioned from phosphor bronze and plated with gold, ensuring excellent conductivity and resistance to corrosion under adverse environmental conditions. The locking lance mechanism maintains secure retention within the Micro MATE-N-LOK connector housing, preventing accidental disconnections in wire-to-wire or wire-to-board assemblies.
Designed for use with Micro MATE-N-LOK connectors, this terminal supports wire sizes from 24 AWG (0.2 mm²) minimum up to 20 AWG (0.5 mm²) maximum, making it highly versatile for various wiring requirements. It carries a current rating of 5 amperes and operates within a temperature range of -40°C to 105°C, suitable for demanding industrial, manufacturing, and electronic equipment installations.
Dual beam contact design ensures excellent electrical reliability. Locking lance mechanism secures the contact firmly within the connector housing. Gold plating on phosphor bronze material offers enhanced corrosion resistance.
Compatible with Micro MATE-N-LOK connector housings supporting a wide wire size range. Rated for 5A current to meet electrical load requirements. Crimp termination provides robust wire connection. Operating temperature range from -40°C up to 105°C supports varied environmental conditions.
This Micro MATE-N-LOK 3mm connector system is ideal for wire-to-wire and wire-to-board applications in sectors such as electronics manufacturing, industrial controls, consumer electronics, and lighting systems. Its low profile contributes to space-saving designs, and the reliable locking mechanism enhances overall system durability.
Explore EnvMart's diverse range of TE Connectivity connectors and Crimp Terminals to find complementary products for your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 5 amperes.
It supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum.
The operating temperature range is from -40°C to 105°C, making it suitable for various environmental conditions.
The contact is made from phosphor bronze and is gold plated to enhance corrosion resistance.
It features a locking lance mechanism that secures the contact firmly within the Micro MATE-N-LOK connector housing, preventing accidental disconnections.
This terminal is specifically designed for use with Micro MATE-N-LOK connector housings.
The termination type is crimp, which provides a secure attachment for the wire.
The maximum contact resistance is 20 mΩ, ensuring efficient electrical connectivity.
It is suitable for wire-to-wire and wire-to-board applications in sectors such as electronics manufacturing, industrial controls, and consumer electronics.
The dual beam contact design enhances electrical reliability and minimizes resistance during operation.
The country of origin for this crimp terminal is India.
The specific dimensions and weight are not provided in the available data.
