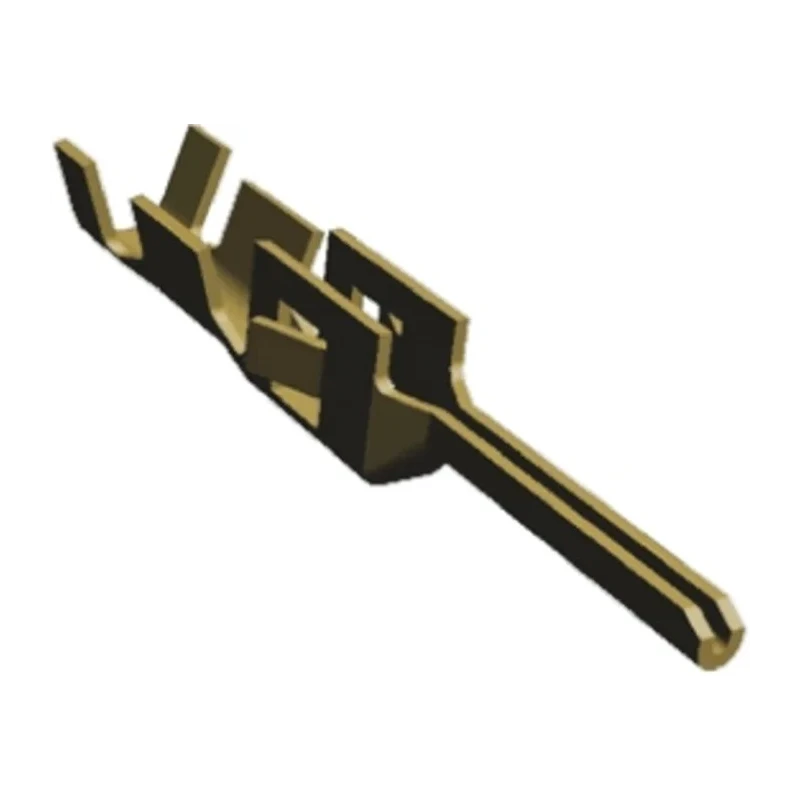

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal 5A Current 24-20 AWG 1-794612-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-0504PBrand: TE ConnectivityManufacturers Part No.: 1-794612-2 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Dual beam contact design ensures electrical reliability and durability.
- Locking lance mechanism provides secure retention in connector housing.
- Gold-plated phosphor bronze contact material for superior conductivity and corrosion resistance.
- Supports a wide wire size range from 24 AWG (0.2mm²) to 20 AWG (0.5mm²).
- Crimp termination type suitable for Micro MATE-N-LOK connector housings.
- Operates safely between -40°C and 105°C for various industrial environments.
- Ideal for industrial, consumer electronics, and LED lighting applications.
Product Description
TE Connectivity 1-794612-2 Micro MATE-N-LOK Series Male Crimp Terminal is a high-quality crimp contact designed for reliable electrical connections in Micro MATE-N-LOK connector housings. This male crimp terminal features a dual beam contact design, offering excellent electrical performance and contact reliability.
The locking lance mechanism ensures the crimp terminal is securely held within the connector housing, preventing accidental disconnection. The contact is made from phosphor bronze and is gold plated to enhance conductivity and provide corrosion resistance.
This Crimp Terminal accommodates wire sizes from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum, suitable for applications requiring a 5A current rating. Its crimp termination provides a secure mechanical and electrical connection, making it ideal for use in electronics manufacturing and assembly.
It withstands operating temperatures ranging from -40°C to 105°C, making it suitable for a range of industrial, commercial, and consumer electronics applications, including LED lighting systems.
TE Connectivity’s Micro MATE-N-LOK 3mm connector system offers compact wire-to-wire and wire-to-board connections with a 3 mm centerline pitch, supporting various industrial and consumer product needs.
Dual beam contact design for electrical reliability. Locking lance mechanism for secure retention. Gold-plated phosphor bronze material. Suitable for 24 to 20 AWG wire sizes. Crimp termination type compatible with Micro MATE-N-LOK housings.
Operating temperature from -40°C to 105°C. 5A current rating for varied electronic applications. Explore more products in the Crimp Contacts category for reliable and industry-standard connectors suitable for power and signal applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 5A.
It supports a wire size range from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
This terminal operates safely between -40°C and 105°C.
The contact material is phosphor bronze, which is gold plated for enhanced conductivity and corrosion resistance.
It features a locking lance mechanism that ensures secure retention within the connector housing, preventing accidental disconnection.
This model uses a crimp termination type, suitable for Micro MATE-N-LOK connector housings.
It is suitable for various applications, including industrial, consumer electronics, and LED lighting systems.
The maximum contact resistance is 20mΩ.
The country of origin for this crimp terminal is India.
This crimp terminal is male gendered.
It belongs to the Micro MATE-N-LOK series.
The dual beam contact design ensures electrical reliability and performance in connections.
