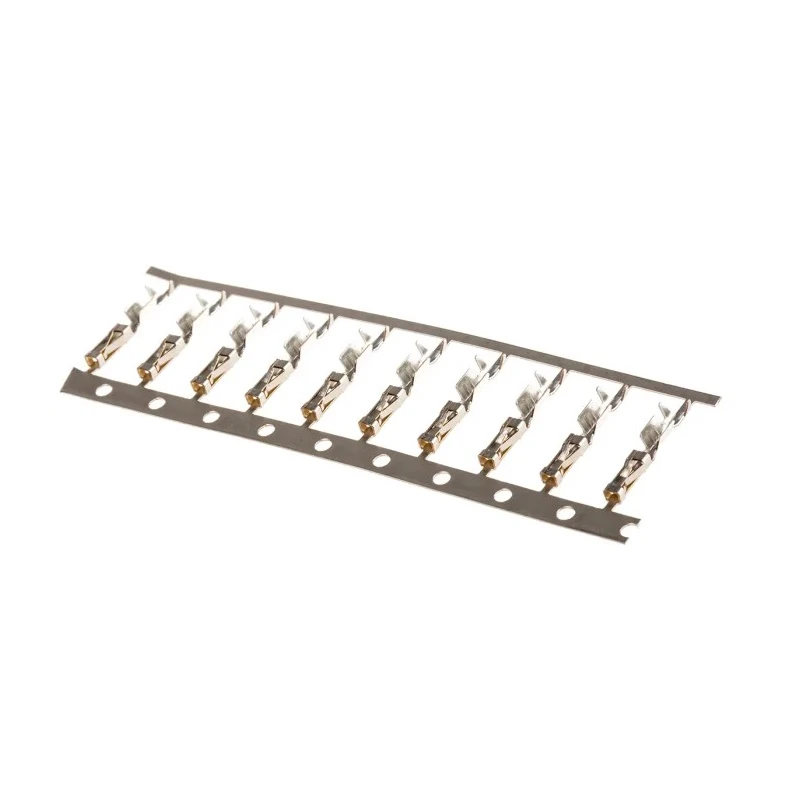

TE Connectivity AMPMODU Short Point Series Female Crimp Terminal, Gold Plated Copper Alloy, 24 AWG Min Crimp, 20 104479-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 14.73mm |
| Model | 104479-9 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPMODU Short Point |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU Short Point and AMPMODU MTE Connector Housings |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-0236Brand: TE ConnectivityManufacturers Part No.: 104479-9 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Constructed from copper alloy with durable gold plating for reliable electrical contact.
- Compatible with AMPMODU Short Point and AMPMODU MTE connector housings.
- Rated for continuous current of 5 amperes to ensure stable performance.
- Features a locking lance design for secure snap-in installation in connector housings.
- Supports wire insulation diameters up to 1.52 mm for versatile cable applications.
- Crimp termination type provides strong and efficient electrical connections.
- Operates reliably within the temperature range of -65°C to 105°C.
- Compact length of 14.73 mm ensures suitability for tight PCB connector assemblies.
Product Description
TE Connectivity 104479-9 AMPMODU Short Point Series Female Crimp Terminal is a specialized connector contact engineered from copper alloy with gold plating. It is intended for use with AMPMODU Short Point and AMPMODU MTE connector housings, providing a robust and reliable female crimp contact solution.
Suitable for wire sizes from 24 AWG (0.2 mm²) up to 20 AWG (0.6 mm²), this Crimp Terminal supports a maximum current rating of 5A and features a locking lance for secure snap-in mating. The contact is designed to mate with 0.64 mm square or round posts ranging from 4.29 to 6.58 mm in length.
The termination type is crimp, allowing for strong mechanical and electrical connections. The gold plating enhances corrosion resistance and conductivity, while the copper alloy body provides excellent durability.
Operating temperature ranges from -65°C to 105°C, suitable for diverse industrial, electronics manufacturing, and telecommunications applications. This compact 14.73 mm length terminal is ideal for PCB integration where space is limited.
Constructed from gold-plated copper alloy ensuring excellent electrical performance. Snap-in design with locking lance for secure installation in AMPMODU housings. Compatible with 24 AWG to 20 AWG wire sizes for versatile use cases.
Rated current of 5A supports moderate power applications. Resistant to temperature extremes from -65°C to 105°C. Provisioned for termination via crimping for reliable contacts. Supports wire insulation diameters up to 1.52 mm for various cable thicknesses.
This product fits applications in electronic component assembly, power connectors for PCB, telecommunications manufacturing, industrial electrical connections, and other high-reliability environments.
Available with comprehensive technical documentation and compliance certificates for quality assurance. Explore the Electronics & Electricals category for similar power connectors and PCB terminal solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum continuous current of 5 amperes.
It is compatible with wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²).
The terminal operates reliably within a temperature range of -65°C to 105°C.
It is constructed from copper alloy with durable gold plating for enhanced conductivity and corrosion resistance.
The length of this crimp terminal is 14.73 mm, making it suitable for tight PCB connector assemblies.
This model uses a crimp termination type, which provides strong and efficient electrical connections.
It features a locking lance design that ensures secure snap-in installation in compatible connector housings.
It is designed for use with AMPMODU Short Point and AMPMODU MTE connector housings.
The maximum contact resistance is 12 mΩ, ensuring efficient electrical performance.
It supports wire insulation diameters up to 1.52 mm, accommodating various cable thicknesses.
The country of origin for this crimp terminal is India.
This terminal is suitable for applications in electronic component assembly, power connectors for PCBs, and telecommunications manufacturing.
