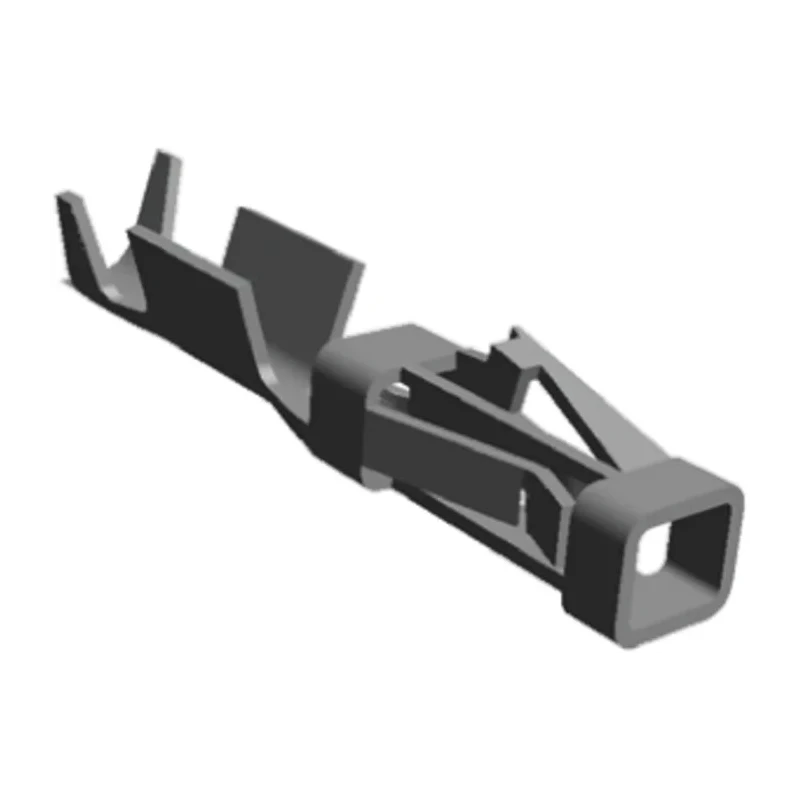

TE Connectivity AMPMODU Short Point Series Female Crimp Terminal 3A Current 26-22 AWG Tin Plating 11.94mm Length 1-104480-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 11.94mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPMODU Short Point |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU Short Point and AMPMODU MTE Connector Housings |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- The crimp terminal features a tin-plated copper alloy construction ensuring reliable conductivity and corrosion resistance.
- Designed to mate with 0.64mm square or round posts between 4.29mm to 6.58mm in length.
- Includes a locking lance feature for secure snap-in installation into connector housings.
- The terminal supports wire insulation diameters up to 1.52mm with crimp termination.
- Operates reliably within a temperature range of -65°C to 105°C.
- The compact terminal length measures 11.94mm, optimized for PCB connectors and wire housing applications.
- Suitable for industrial and electronic use including power and signal connector systems.
Product Description
TE Connectivity model 1-104480-4 is an AMPMODU Short Point Series female crimp terminal engineered for reliable electrical connections within sophisticated connector assemblies. It accommodates wire sizes ranging from 26 AWG (0.1mm²) to 22 AWG (0.4mm²) and supports a maximum contact current of 3 amperes. The terminal is constructed from copper alloy with a tin plating that provides excellent conductivity and durability against corrosion and wear in demanding industrial environments.
This crimp terminal mates precisely with 0.64mm square or round posts measuring 4.29mm to 6.58mm, featuring a locking lance design that ensures firm snap-in engagement within AMPMODU MTE connector housings. Its 11.94mm length makes it suitable for tight PCB connector assemblies where space is at a premium.
Operable temperature range from -65°C to 105°C makes it suitable for a wide array of electronic, industrial, and power distribution applications, including laboratory equipment, telecommunications, manufacturing machinery, and HVAC control panels. The crimp termination type allows for efficient and secure wire connections to the terminal.
The design supports wire insulation diameters up to 1.52mm, ensuring compatibility with standard wiring in power connectors and PCB connector systems. It provides a low maximum contact resistance of 12 milliohms, contributing to stable and efficient electrical performance.
This product is ideal for engineering professionals engaged with connector component sourcing for industrial electro-mechanical assemblies, PCB wiring harnesses, and high-density electrical connector blocks.
The Crimp Terminal features tin-plated copper alloy contacts for durability and conductivity. Multiple wire size compatibility enhances versatility in electronic assembly. Snap-in locking lance provides secure and reliable engagement.
Compact 11.94mm length suitable for tight PCB applications. Broad operating temperature range supports extended industrial use. Low contact resistance ensures efficient electrical connections. Designed for AMPMODU Short Point and MTE connector housings.
Browse the Electronics & Electricals Power Connectors category for additional connectivity components suited for industrial and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 3 amperes.
This terminal accommodates wire sizes ranging from 26 AWG (0.1mm²) to 22 AWG (0.4mm²).
The length of this crimp terminal is 11.94mm, making it suitable for tight PCB applications.
It operates reliably within a temperature range of -65°C to 105°C.
This terminal uses a crimp termination type for efficient and secure wire connections.
It is designed to mate with AMPMODU Short Point and AMPMODU MTE connector housings.
The crimp terminal is constructed from a tin-plated copper alloy, ensuring reliable conductivity and corrosion resistance.
The maximum contact resistance is 12 milliohms, contributing to stable electrical performance.
It supports wire insulation diameters up to 1.52mm.
This crimp terminal is female.
The crimp terminal is manufactured in India.
It is suitable for industrial and electronic use, including power and signal connector systems.
