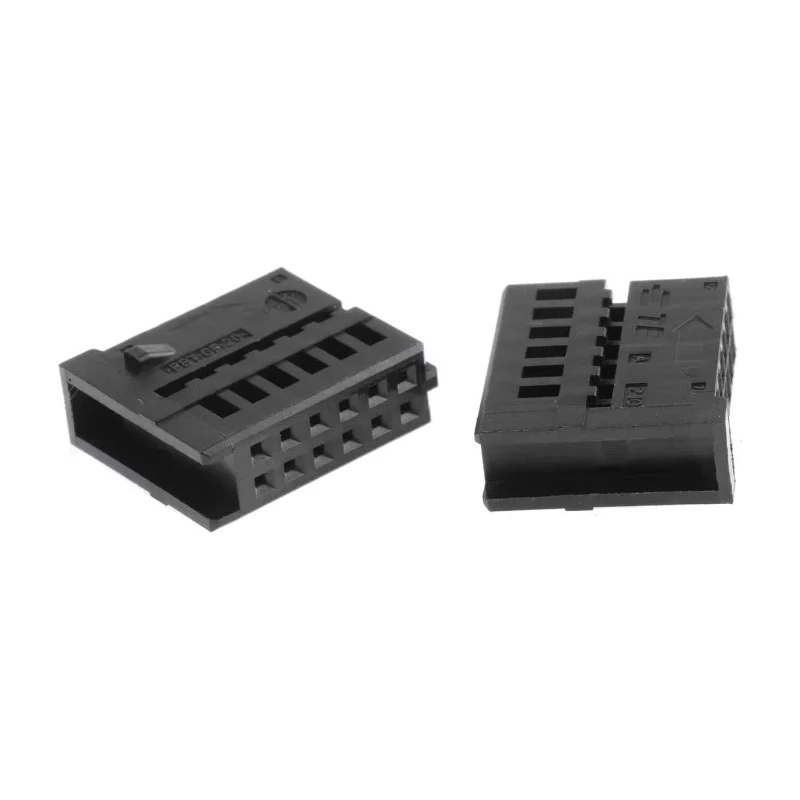

TE Connectivity Micro Quadlok System Automotive Connector Female Black Cable 12 Way Crimp Termination 1379219-1

TE Connectivity 1379219-1 Micro Quadlok System Automotive Connector is a high density, compact female cable connector with 12 crimp termination contacts designed for demanding automotive electrical applications. The connector housing is constructed from robust polybutylene terephthalate and finished in black, ensuring durability and long-term performance under harsh environments.

This MQS series connector features a 2.54 mm pitch spacing, providing a reliable and space-saving interconnection system specifically engineered for automotive powertrain, safety, convenience, and chassis systems. The stainless steel locking lances integrated into the contacts provide a strong primary terminal locking force securing contacts firmly within the housing.

Polarization and keying options prevent mismating during installation, enhancing system reliability. Versions with waterproof sealing are available to protect against ingress, and additional wire seals can be purchased separately to customize sealing solutions.

The connector is designed to operate effectively within a wide temperature range of -40°C to 100°C, suitable for both under-hood and in-cabin applications. It mounts directly to cables without an included cord, making it highly adaptable for custom wiring harnesses.

Typical applications include automotive powertrain systems, safety/security modules, convenience electronics, driver information, and body and chassis electrical networks. Accessories such as covers, levers, and retainer housings are available to complement this connector series for various assembly and environmental requirements.

The connector features 12 female crimp termination contacts for secure electrical connections. Housing material is polybutylene terephthalate, providing strength and chemical resistance. Compact dimensions: width 20.4 mm, height 16.8 mm, depth 7.1 mm enable space optimization.

Operates reliably over a broad temperature range from -40°C to 100°C. Integral stainless steel locking lances provide strong terminal locking force. Polarization and keying prevent incorrect mating of connectors. Sealed versions provide waterproofing for harsh environmental conditions.

Designed for cable mount applications with no cord included. Supports automotive powertrain, safety, convenience, and body systems. Compatible with additional accessories such as covers and retainers for customization. Explore more in the automotive connector category to find compatible MQS series parts and accessories.
