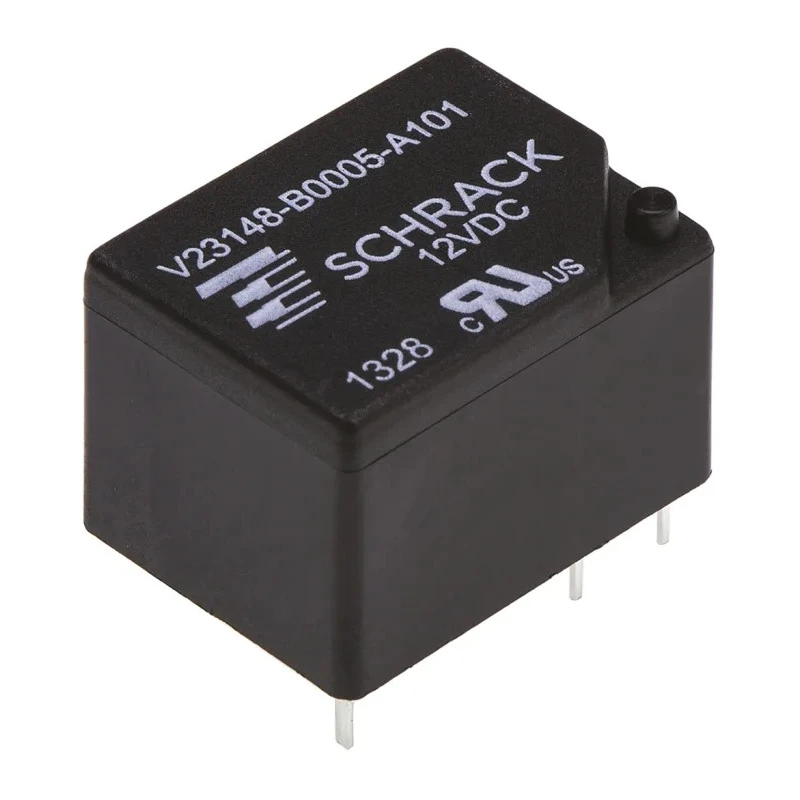

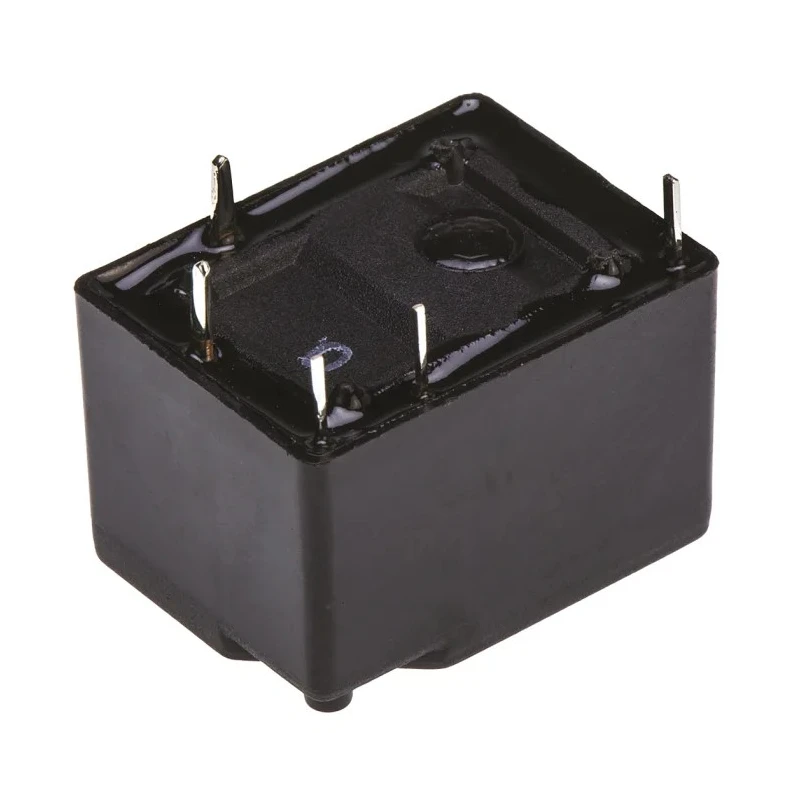

TE Connectivity PCB Power Relay 12V dc Coil 7A Switching Current SPDT SCHRACK Series 1393204-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 14.9mm |
| Length | 21.1mm |
| Width | 16.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 7A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1878Brand: TE ConnectivityManufacturers Part No.: 1393204-7Distrelec Article No.: 30167757 |
| Coil Resistance | 119Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 450mW |
| Isolation Coil To Contact | 4000Vac |
Key Features
- The relay features a coil resistance of 119 Ohms and coil power of 450mW.
- It supports switching AC voltage up to 400V and switching power of 1.75kVA.
- Designed to operate over a temperature range of -25°C to 70°C.
- Constructed with silver alloy contacts for durability and enhanced conductivity.
- Mount type is through-hole suitable for PCB installations.
- Fully sealed design ensures protection and long service life.
- Isolation between coil and contact rated at 4000Vac provides excellent insulation.
- RoHS compliant ensuring environmental safety standards.
Product Description
TE Connectivity 1393204-7 PCB Power Relay is a monostable single pole double throw (SPDT) relay from the SCHRACK series designed for printed circuit board applications. It operates with a 12V dc coil and delivers a switching current rating of 7A, making it suitable for a broad range of industrial, electrical, and automation system applications.
This relay exhibits a coil resistance of 119 Ohms and coil power consumption of 450mW, providing efficient energy use during operation. It supports a maximum switching AC voltage of 400V and switching power capability of 1.75kVA, enabling it to handle moderate load switching tasks with reliability.
Featuring silver alloy contacts, the relay offers enhanced durability and conductivity for improved signal integrity and longevity. Its through-hole PCB mount ensures secure and easy integration into electronic circuits. The compact physical dimensions measure 21.1mm in length, 16.2mm in width, and 14.9mm in height, enabling installation even in constrained spaces.
Its fully sealed design and an operating temperature range from -25°C to 70°C provide exceptional protection against environmental factors, making it suitable for use in harsh conditions encountered in industrial, HVAC, manufacturing, and automation scenarios. Isolation between coil and contact is rated at 4000Vac, ensuring safe operation and preventing interference.
The relay is RoHS compliant, confirming adherence to environmental safety standards. Applications include electrical control systems, power equipment control, automation, and signal conditioning. Its high switching voltage and current ratings make it ideal for medium power switching tasks in laboratory and industrial environments.
This product is a trusted solution for reliable and efficient PCB power relay requirements. Explore more products in Power Relays category on EnvMart for your industrial and automation needs.
