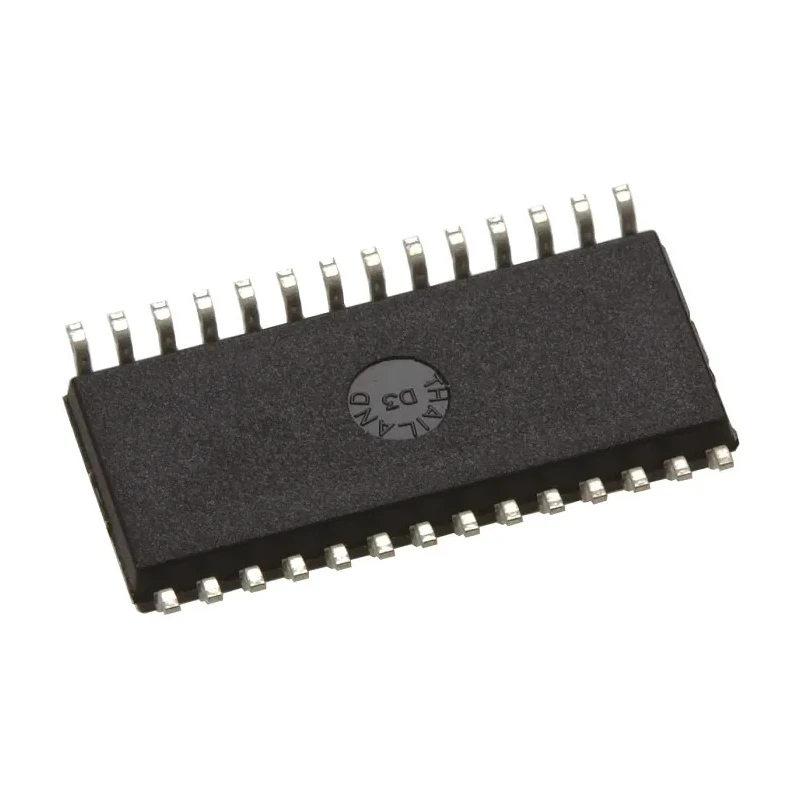

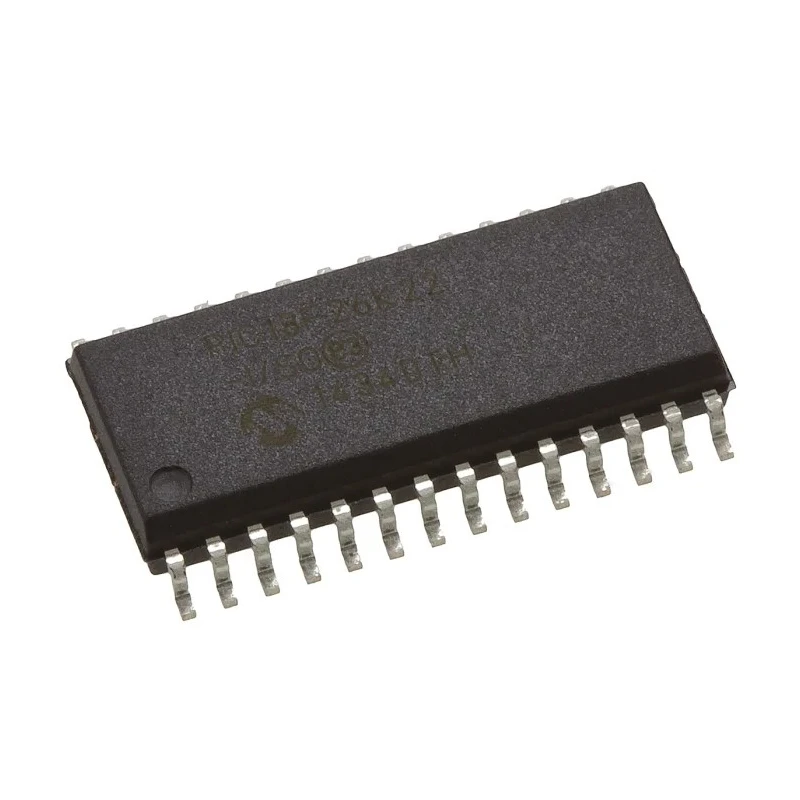

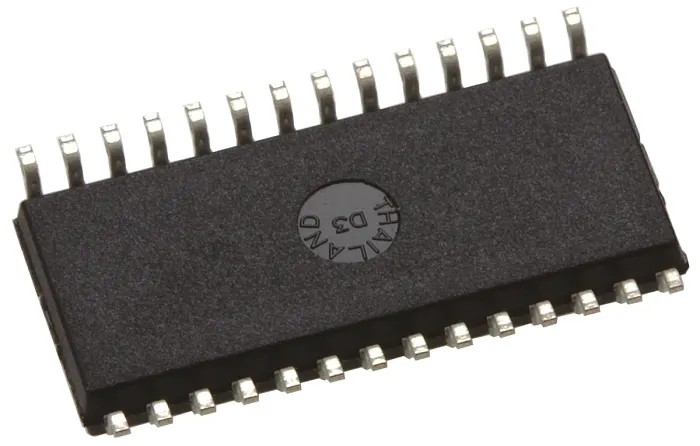

Microchip PIC18F26K22-I/SO, 8 bit PIC18F Microcontroller, 64 MHz, 64kB FLASH, 28-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.05mm |
| Length | 17.9mm |
| Model | PIC18F26K22-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-4454Brand: MicrochipManufacturers Part No.: PIC18F26K22-I/SO |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 7 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- This microcontroller features a 28-pin SOIC package suitable for surface mounting.
- It operates with a maximum supply voltage of 5.5V and a minimum of 2.3V.
- Equipped with 1kB RAM and 64kB program memory using FLASH technology.
- Supports 25 programmable I/Os, 7 timers, and 17 analog-to-digital converters of 10-bit resolution.
- Provides 5-bit DACs and 2 analog comparators for signal processing applications.
- Designed with RISC instruction set architecture optimized for efficient execution.
- Operating temperature ranges from -40°C to 85°C ensuring wide industrial application usability.
- Maximum power dissipation is 1 W, suited for low-power embedded systems.
Product Description
Microchip PIC18F26K22-I/SO is a high-performance 8 bit PIC18F microcontroller featuring a maximum clock frequency of 64 MHz and 64kB of FLASH program memory. It comes in a compact 28-pin SOIC surface mount package, ideal for industrial, commercial, and embedded applications requiring efficient processing and flexible peripheral support.
This microcontroller supports 25 programmable input/output pins and 7 timers, with integrated analog features including 17 ADCs (10-bit), 5-bit DACs, and 2 analog comparators, enabling precise signal acquisition and generation. The device uses RISC instruction set architecture providing high instruction throughput and reduced power consumption.
Operating voltage spans from 2.3V minimum to 5.5V maximum, with maximum power dissipation rated at 1 watt, making it suitable for low-power designs. The temperature operating range of -40°C to 85°C allows usage in harsh industrial environments.
The microcontroller measures 17.9mm in length, 7.5mm in width, and 2.05mm in height, making it suitable for compact PCB layouts. It complies with RoHS directives ensuring environmental compliance.
This microcontroller features a 28-pin SOIC package suitable for surface mounting. It operates with a maximum supply voltage of 5.5V and a minimum of 2.3V. Equipped with 1kB RAM and 64kB program memory using FLASH technology.
Supports 25 programmable I/Os, 7 timers, and 17 ADC channels (10-bit resolution). Provides 5-bit DACs and 2 analog comparators for signal processing applications. Designed with RISC instruction set for efficient embedded applications.
Suitable for industrial, commercial, and embedded system use cases. Compact dimensions for space-constrained designs. RoHS compliant, ensuring environmental safety standards.
This product is ideal for designers and engineers working on embedded control, automation, instrumentation, and communication devices. Explore more Microchip Microcontrollers and electronics components at EnvMart for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC18F26K22-I/SO microcontroller is 64 MHz.
It features a program memory size of 64kB using FLASH technology.
This microcontroller measures 17.9mm in length, 7.5mm in width, and 2.05mm in height.
The operating voltage ranges from a minimum of 2.3V to a maximum of 5.5V.
It supports 25 programmable input/output pins.
The maximum power dissipation is rated at 1 watt.
The operating temperature range is from -40°C to 85°C.
This model includes 17 analog-to-digital converters with 10-bit resolution.
It comes in a 28-pin SOIC package suitable for surface mounting.
It is designed with a RISC instruction set architecture optimized for efficient execution.
There are 7 timers available in this model.
It complies with RoHS directives, ensuring environmental compliance.
