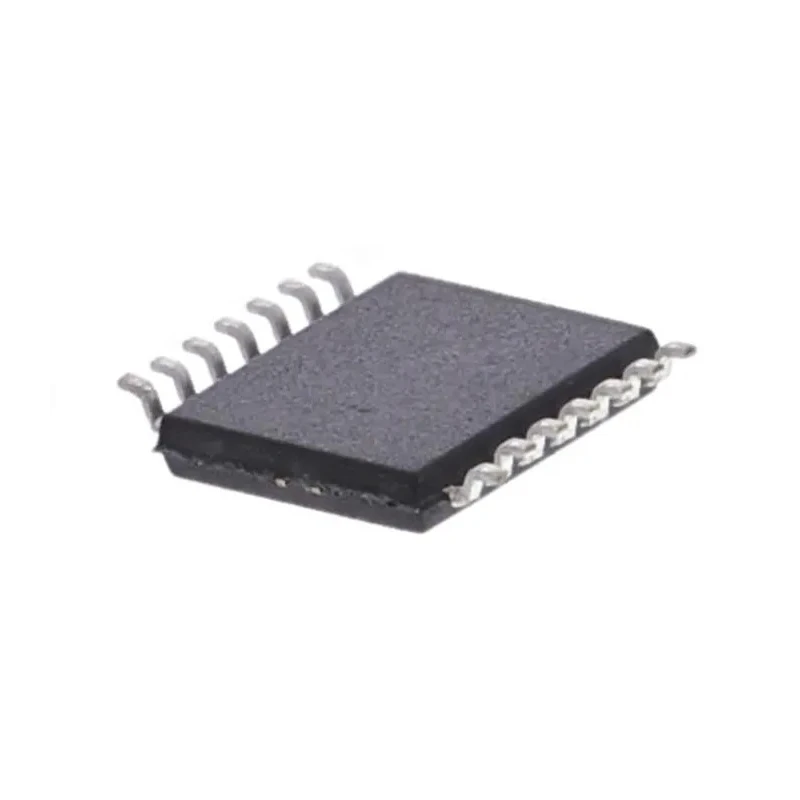

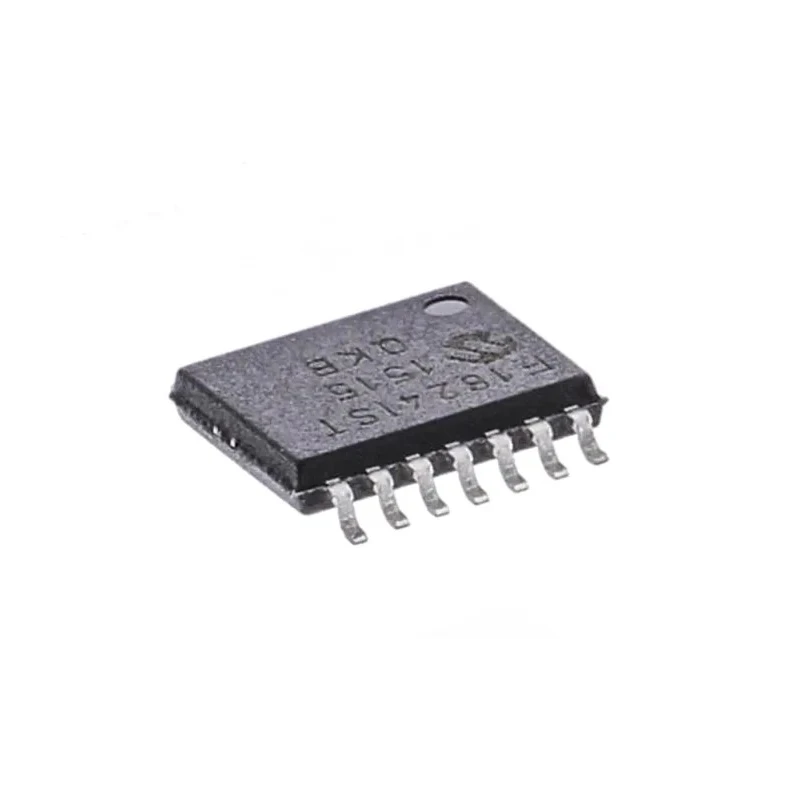

Microchip 8-bit PIC Microcontroller PIC16F1824-I/ST 32 MHz 4kB FLASH 14-Pin TSSOP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 5mm |
| Model | PIC16F1824-I/ST |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512kB |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-4321Brand: MicrochipManufacturers Part No.: PIC16F1824-I/ST |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 4kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Utilizes enhanced mid-range core with 16 level hardware stack and 49 instructions.
- Operates at maximum clock frequency of 32 MHz with selectable oscillator frequency range.
- Includes 512 bytes RAM and up to 8-bit expanded memory size for versatile applications.
- Features 12 programmable I/O pins and 8-channel 10-bit ADC for analog signal processing.
- Operating temperature range from -40°C to 85°C supports industrial environments.
- Includes five 8-bit timers and one 16-bit timer for precise timing applications.
- Supports peripherals including CCP, ECCP modules, capacitive sensing, MSSP, and enhanced USART.
- Surface mount 14-pin TSSOP package measuring 5 mm x 4.4 mm x 1 mm.
Product Description
Microchip PIC16F1824-I/ST is an 8-bit PIC microcontroller from the PIC16F series, designed for flexible embedded systems requiring moderate processing power and integrated peripherals. It supports a maximum clock frequency of 32 MHz and incorporates 4kB of FLASH program memory along with 512 bytes of RAM, making it suitable for various industrial, commercial, and consumer electronics applications.
The microcontroller features a 14-pin TSSOP surface mount package with a compact footprint (length 5 mm, width 4.4 mm, height 1 mm), enabling space-efficient PCB designs. Its device core employs RISC architecture with 49 instructions and a 16-level hardware stack.
Key operational ranges include a supply voltage window from 1.8V to 5.5V and operating temperature from -40°C to 85°C, ensuring reliable performance in harsh environmental conditions often encountered in industrial and automotive applications.
This MCU includes multiple integrated peripherals such as two 10-bit ADC converters with 8 analog channels, two analogue comparators, two capture/compare/PWM modules, two enhanced CCP modules, and a capacitive touch sensing module. Communication interfaces include a master synchronous serial port (MSSP) supporting SPI and I2C protocols and an enhanced USART for asynchronous communications.
Additional features like Power-On Reset, Power-Up Timer, Oscillator Start-Up Timer, Brown-Out Reset, Extended Watchdog Timer, Low-Voltage Programming, In-Circuit Serial Programming, and Debug capabilities make this microcontroller highly reliable for embedded system development.
Utilizes enhanced mid-range core with 49 instruction set and 16 level hardware stack. Supports up to 32 MHz internal oscillator frequency with ±1% accuracy. Includes 4kB FLASH program memory and 512 bytes RAM. Equipped with 12 programmable GPIO pins and multiple timers for embedded control.
Features built-in ADC with 8 channels, analogue comparators, and capacitive sensor module. Offers communication interfaces including MSSP (SPI, I2C) and enhanced USART. Operates over wide supply voltage (1.8V to 5.5V) and temperature (-40°C to +85°C) ranges.
Package: 14-Pin TSSOP, surface mount technology with compact dimensions.
This microcontroller suits a broad range of applications including industrial automation, consumer devices, and low-power embedded control systems. It is compliant with required design standards but does not include specific certifications.
Discover more MCU options and industrial electronics components through EnvMart's extensive catalog to meet your design needs.
Explore more products in our Microcontrollers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
This microcontroller includes 4kB of FLASH program memory.
The package dimensions are 5 mm in length, 4.4 mm in width, and 1 mm in height.
It features 12 programmable I/O pins for various applications.
This model supports a master synchronous serial port (MSSP) for SPI and I2C protocols, as well as an enhanced USART for asynchronous communications.
It has 512 bytes of RAM.
It includes two 10-bit ADC converters with 8 analog channels for analog signal processing.
The PIC16F1824-I/ST includes five 8-bit timers and one 16-bit timer.
The supply voltage can range from 1.8V to 5.5V.
It employs a RISC architecture with a 49 instruction set.
It includes features such as Power-On Reset, Brown-Out Reset, and Extended Watchdog Timer, which enhance its reliability for embedded system development.
