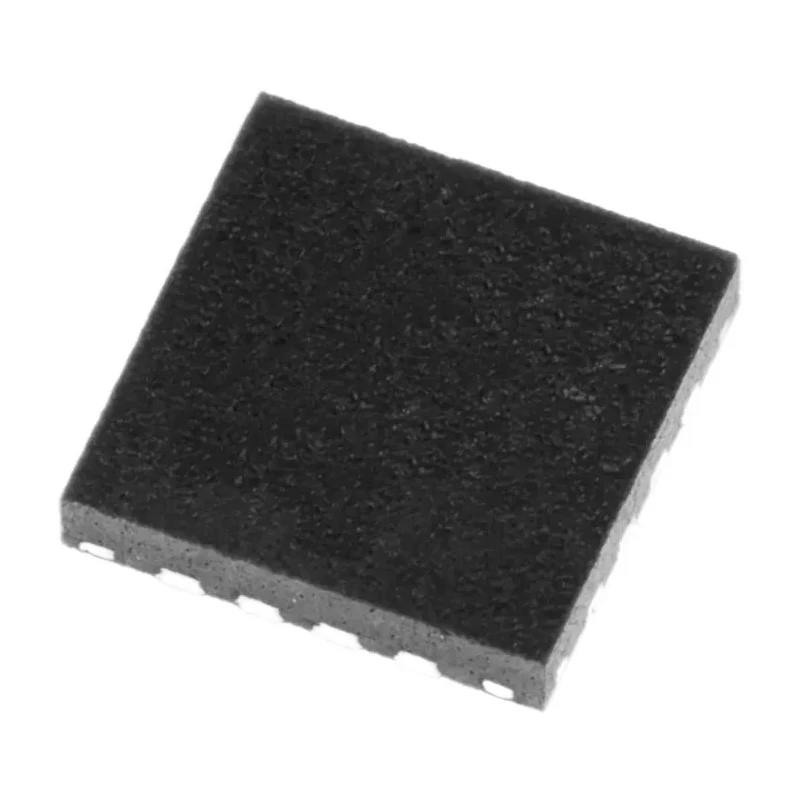

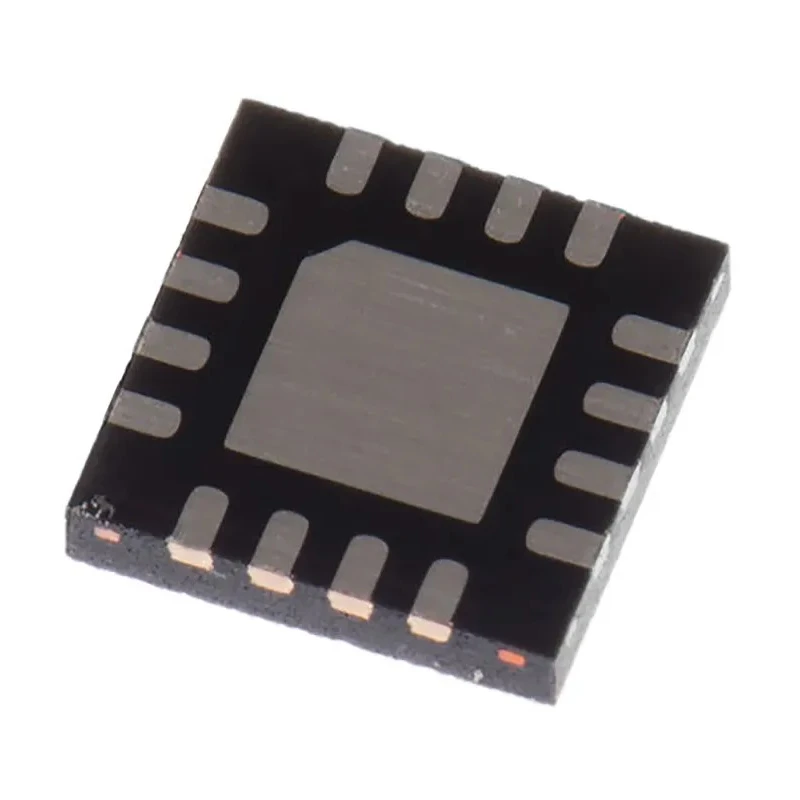

Microchip PIC16F1824-I/ML 8-Bit PIC Microcontroller, 32 MHz, 4kB Flash, 512kB RAM, 16-Pin QFN Package
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 880μm |
| Length | 4mm |
| Model | PIC16F1824-I/ML |
| Width | 4mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 512kB |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 715-4319Brand: MicrochipManufacturers Part No.: PIC16F1824-I/ML |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 4kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Built on enhanced mid-range PIC architecture with 49 instruction set and 16-level hardware stack.
- Operates at a maximum clock frequency of 32 MHz for efficient processing.
- Equipped with 4kB flash program memory and 512kB RAM for application storage.
- Features 12 programmable I/O pins and 8-channel 10-bit ADC functionality.
- Includes peripherals such as comparators, timers, PWM modules, and serial communication interfaces.
- Operates within voltage range of 1.8V to 5.5V and temperature range of -40°C to 85°C.
- Compact 16-pin QFN surface mount package with 4 mm x 4 mm dimensions and 880 μm height.
Product Description
Microchip PIC16F1824-I/ML is an 8-bit PIC microcontroller designed for efficient embedded applications requiring moderate processing power and rich peripheral integration. Operating at up to 32 MHz clock speed paired with 4kB FLASH program memory and 512kB RAM, this device is suitable for a wide range of industrial and commercial electronics projects.
The enhanced mid-range architecture supports a 16-level hardware stack and a comprehensive 49 instruction set, allowing for precise control and optimization. This microcontroller features 12 programmable I/O pins and an 8-channel 10-bit ADC, enabling interfacing with sensors and analog inputs.
Additional features include two hardware comparators, five timers (four 8-bit and one 16-bit), two capture/compare/PWM modules, an enhanced USART for serial communication, and support for in-circuit serial programming and debugging. Operating voltage ranges from 1.8V to 5.5V, with a wide operating temperature range from -40°C to 85°C, making this microcontroller reliable for harsh environments.
The device comes in a compact 16-pin QFN surface mount package measuring 4 mm x 4 mm with a package height of 880 micrometers, ideal for space-constrained PCB layouts. The product is RoHS compliant, ensuring environmentally friendly manufacturing standards.
Applications include embedded control, automotive electronics, industrial automation, consumer electronics, and other sectors requiring a low-power, mid-range MCU. Built on enhanced mid-range PIC® architecture with a 49 instruction set.
Maximum CPU speed of 32 MHz with internal oscillator. 4kB flash program memory and 512kB RAM for data storage. 12 programmable I/Os and 8 x 10-bit ADC channels. Multiple timers, comparators, PWM, and serial interfaces for versatile use.
Wide operating voltage (1.8V to 5.5V) and temperature (-40°C to 85°C) ranges. 16-pin QFN package measuring 4 mm by 4 mm with 880 μm height. Explore Microchip's broad range of Microcontrollers in the Electronics & Electricals category at EnvMart for your next industrial or laboratory project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It has a program memory size of 4kB, which is of FLASH type.
This microcontroller is equipped with 512kB of RAM for data storage.
The operating voltage range is from 1.8V to 5.5V.
The QFN package measures 4 mm x 4 mm with a height of 880 μm.
It features 12 programmable I/O pins for versatile interfacing.
It includes peripherals such as comparators, timers, PWM modules, and serial communication interfaces.
The operating temperature range is from -40°C to 85°C.
It supports 8 channels of 10-bit ADC functionality.
This model includes a total of 5 timers.
It is RoHS compliant, ensuring environmentally friendly manufacturing standards.
It utilizes a RISC instruction set architecture with a comprehensive 49 instruction set.
