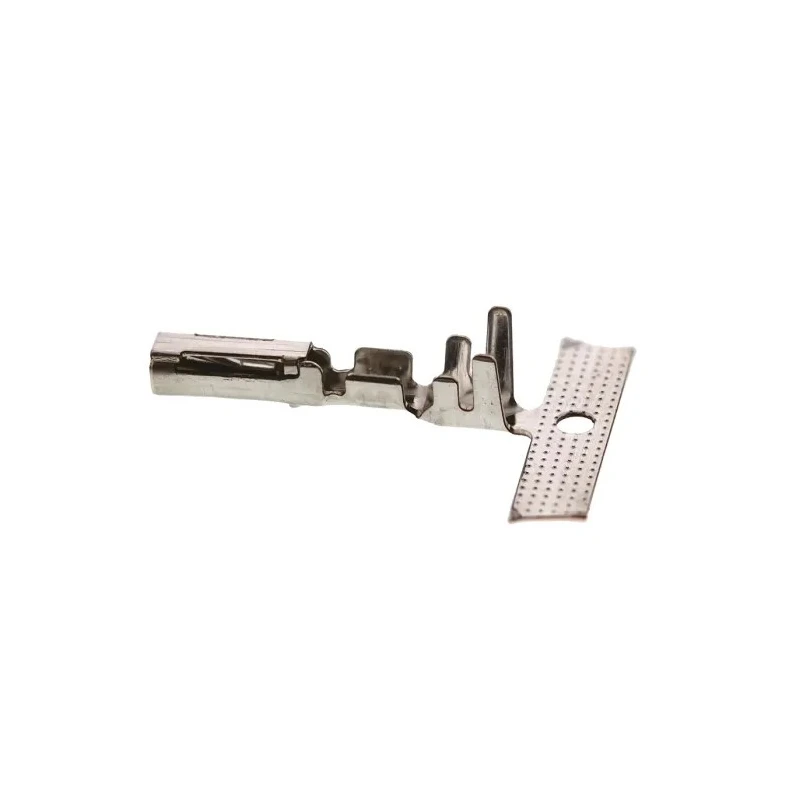

TE Connectivity MULTILOCK 040 II Series Female Crimp Terminal 5A Current, 21-20 AWG Wire Size, Tin Plated Copper 175180-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 175180-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 II Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Constructed for use with MULTILOCK 040 II Connector Housing.
- Terminated by crimp method ensuring strong mechanical and electrical connection.
- Operating temperature range from -30°C to 105°C for various industrial environments.
- Low electrical resistance with 1 mΩ max initial and 10 mΩ max overall resistance.
- Measures 14.2 mm in length fitting compact connector designs.
- Suitable for automation and industrial cable connections.
- Tin plating provides corrosion resistance on copper alloy contact material.
- Snap-in fixing for secure connector cavity installation.
Product Description
TE Connectivity 175180-1 MULTILOCK 040 II Series Female Crimp Terminal is engineered for high-density wire-to-wire and wire-to-board connection solutions commonly used in automotive, industrial automation, and electronic applications. The connector terminal accepts wire sizes from 21 AWG to 20 AWG, accommodating cross-sectional areas of 0.3 to 0.5 mm², and can handle currents up to 5A.
This crimp termination type terminal features a tin-plated copper alloy contact for optimal conductivity and corrosion resistance. Operating temperature ranges from -30°C to 105°C, making it suitable for demanding environments. The terminal length of 14.2 mm enables compact designs within MULTILOCK 040 II connector housings.
Designed for robust mechanical fixation, the terminal snaps into connector cavities securely, ensuring reliable cable connections in automation industrial setups. The terminal exhibits low-level contact resistance with an initial maximum of 1 mΩ and an overall maximum of 10 mΩ post-installation, enhancing signal integrity and power efficiency.
TE Connectivity's MULTILOCK connectors and contacts provide miniature high-density I/O solutions with 2.5 mm contact centres. This female crimp terminal is a vital component within this system, supporting both cable receptacles and board mounting configurations.
Constructed for use with MULTILOCK 040 II Connector Housing. Crimp termination for secure and efficient electrical contact. Current rating of 5A compatible with industrial and automotive applications. operates reliably between -30°C and 105°C ambient temperatures.
Tin plating ensures resistance to environmental corrosion. Compact 14.2 mm length suits tight connector assemblies. Snap-in fixing mechanism for ease of assembly and maintenance. Low electrical resistance supports efficient power and signal transmission.
This product is applicable in electronic components, power connectors, automotive harnesses, industrial automation machinery, and PCB interconnections. TE Connectivity’s MULTILOCK series emphasizes durability, performance, and ease of installation.
Discover a wide range of Crimp Terminals and connectors in the Electronics & Electricals category at EnvMart for all your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A, making it suitable for various industrial and automotive applications.
It accepts wire sizes from 21 AWG to 20 AWG, accommodating cross-sectional areas of 0.3 to 0.5 mm².
The operating temperature range is from -30°C to 105°C, allowing it to function in demanding environments.
This terminal measures 14.2 mm in length, which is designed for compact connector assemblies.
The contact material is a tin-plated copper alloy, providing optimal conductivity and corrosion resistance.
The crimp termination method ensures a strong mechanical and electrical connection, suitable for secure cable connections.
The maximum initial contact resistance is 1 mΩ, with an overall maximum of 10 mΩ post-installation.
Yes, it is engineered for high-density wire-to-wire and wire-to-board connections commonly used in automotive applications.
It features a snap-in fixing mechanism for secure installation within connector cavities.
This terminal belongs to the MULTILOCK 040 II series, designed for high-density connections.
The country of origin for this product is India.
It is applicable in electronic components, power connectors, automotive harnesses, industrial automation machinery, and PCB interconnections.
