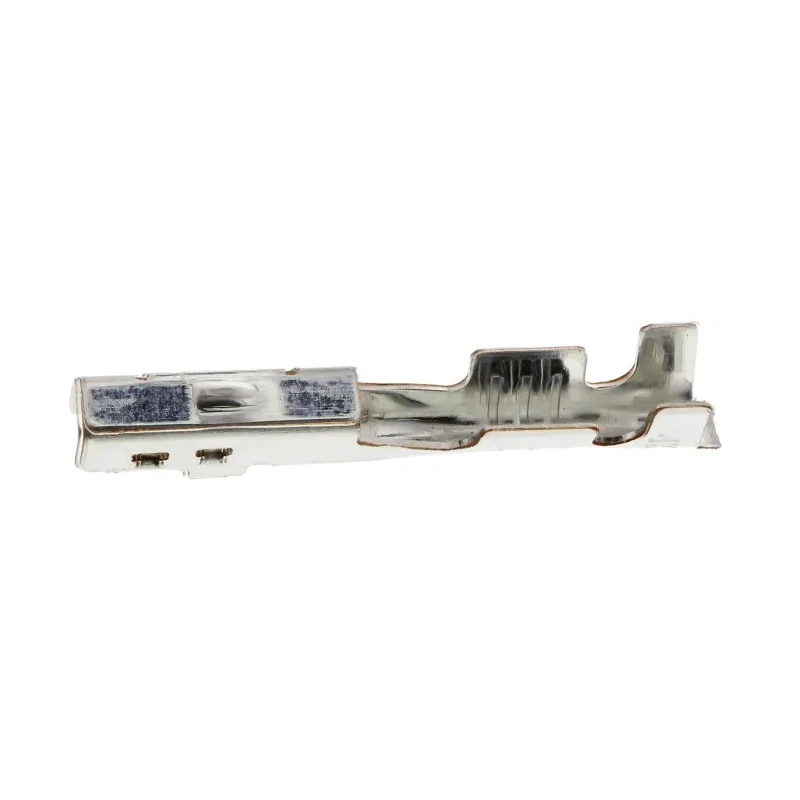

TE Connectivity MULTILOCK 040 III Series Female Crimp Terminal, Tin Plated Copper Alloy, 21 AWG Min, 18 AWG Max 316836-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Length | 13.4mm |
| Model | 316836-1 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 040 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1867PBrand: TE ConnectivityManufacturers Part No.: 316836-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.85mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 18AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Suitable for use with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing.
- Crimp termination type ensures a secure and reliable wire connection.
- Contact plated with tin for corrosion resistance and electrical conductivity.
- Designed to operate in temperatures from -30°C to 105°C.
- Offers a current rating of 15A for reliable power transmission.
- Constructed from copper alloy for durable and efficient electrical contact.
- Resistant to low level resistance of 1 mΩ (initial) and overall resistance max 10 mΩ (final).
- Snap-in fixing suitable for automation industry wiring applications.
Product Description
TE Connectivity 316836-1 MULTILOCK 040 III Series Female Crimp Terminal is a high-performance electrical connector contact designed for secure wire connections in automotive, industrial automation, and electronics applications. It features a tin-plated copper alloy contact material to ensure excellent conductivity and corrosion resistance.
This crimp terminal is engineered for wire sizes ranging from 21 AWG (0.3mm²) minimum to 18 AWG (0.85mm²) maximum and is compatible with MULTILOCK 0.025/0.04 Hybrid I/O connector housings. Its compact length of 13.4mm fits precisely into snap-in cavities of the connectors, allowing efficient and durable cable connections.
Operating temperature ranges from -30°C to 105°C, supporting demanding environments. With a current rating of 15A and tested withstand voltage of 1kVac for one minute, it is suitable for various power and signal transmission needs. The crimp termination method guarantees a robust mechanical and electrical interface, widely used in the automation industry.
Key features include low contact resistance (1 mΩ max initial, 10 mΩ max final) that ensures minimal signal loss, making it ideal for precise and reliable connections. The terminal does not carry specific certifications but complies with industry standards for performance and durability.
TE Connectivity MULTILOCK connectors and contacts provide miniature, high-density wire-to-wire and wire-to-board I/O solutions common in automotive and industrial sectors. The snap-in, crimp contacts facilitate efficient assembly and serviceability.
Suitable for MULTILOCK 0.025/0.04 Hybrid I/O Connector Housing compatibility. Crimp termination ensures secure wire contacts. Tin plated copper alloy contact material for durability and conductivity. Wide operating temperature range from -30°C to 105°C.
15A current rating supports power transmission. Compact 13.4mm length for precise fit in connector cavities. Low contact resistance ensuring reliable signal integrity. Ideal for automotive, industrial automation, and electronics applications.
Set contains a single female Crimp Terminal, model 316836-1. For related connectors and tooling refer to TE Connectivity MULTILOCK series. Explore more connectors and power components in the Electronics & Electricals category on EnvMart to suit your industrial or manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -30°C to +105°C, making it suitable for various environments.
It has a current rating of 15A, which supports reliable power transmission.
This terminal is designed for wire sizes ranging from 21 AWG (0.3mm²) minimum to 18 AWG (0.85mm²) maximum.
The length of this model is 13.4mm, allowing for a precise fit in connector cavities.
The contact material is a tin-plated copper alloy, which provides excellent conductivity and corrosion resistance.
It uses a crimp termination type, ensuring a secure and reliable wire connection.
The low level resistance is 1 mΩ maximum (initial), ensuring minimal signal loss.
Yes, it is compatible with MULTILOCK 0.025/0.04 Hybrid I/O Connector Housings.
The maximum overall resistance is 10 mΩ, ensuring reliable electrical connections.
It is suitable for automotive, industrial automation, and electronics applications due to its reliable performance.
While it does not carry specific certifications, it complies with industry standards for performance and durability.
This model is a female crimp terminal, designed for secure connections with compatible connectors.
