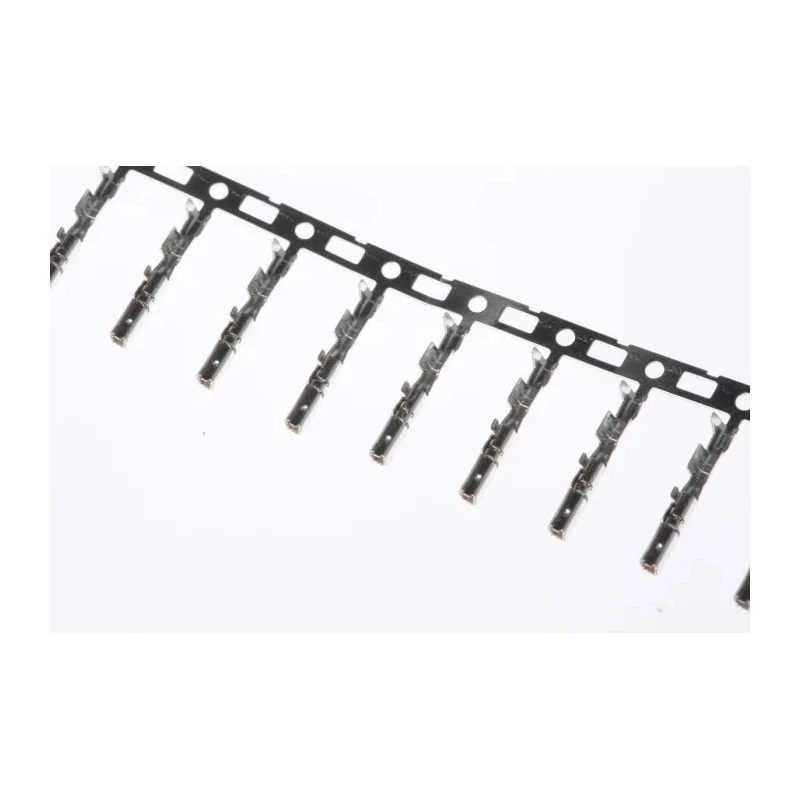

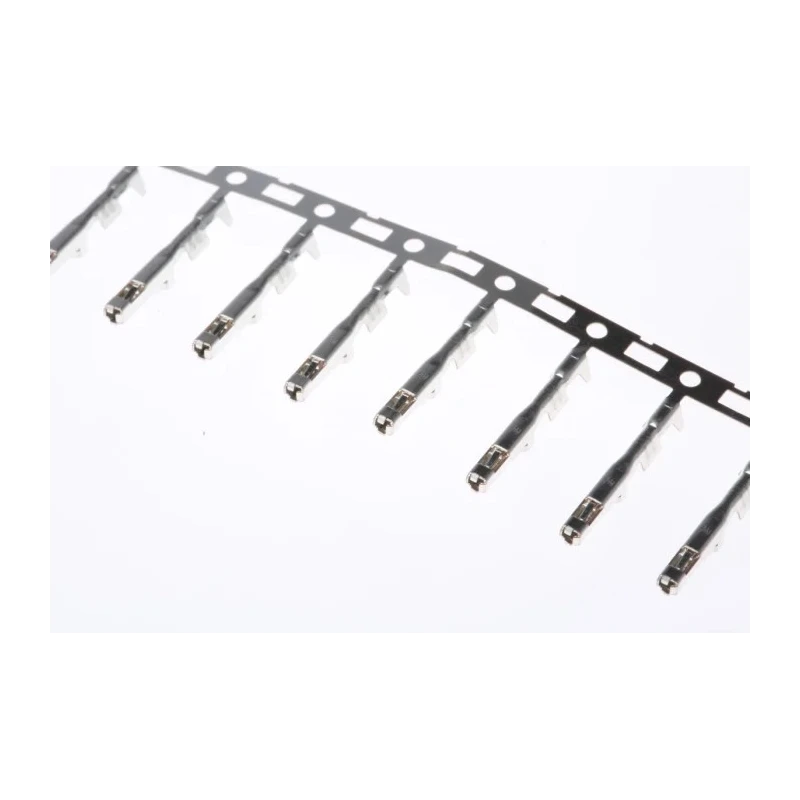

TE Connectivity MULTILOCK 025 Series Female Crimp Terminal 15A Current Rating, 21-20 AWG Wire, Tin Plated Copper 1674311-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 to +105 °C |
| Gender | Female |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Series | MULTILOCK 025 |
| Termination Type | Crimp |
| For Use With | MULTILOCK 025 Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-1823PBrand: TE ConnectivityManufacturers Part No.: 1674311-1 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 21AWG |
| Maximum Wire Size AWG | 20AWG |
| Low level resistance | 1 mΩ max (initial) |
| Overall resistance | 10 mΩ max (final) |
Key Features
- Current rating of 15 amps ensures efficient electrical conduction.
- Contact material is high-quality copper alloy with tin plating for corrosion resistance.
- Compatible with MULTILOCK 025 Connector Housing series.
- Operating temperature range from -30 to +105 degrees Celsius.
- Termination by crimp ensures secure and reliable mechanical connection.
- Designed for female gender contacts in cable receptacles.
- Low level resistance of 1 milliohm maximum (initial) for minimal signal loss.
- Overall resistance maximum of 10 milliohms (final) after usage.
Product Description
TE Connectivity 1674311-1 MULTILOCK 025 Series Female Crimp Terminal is a precision-engineered connector contact optimized for use within MULTILOCK 025 Connector Housings. It facilitates secure cable connections with excellent electrical and mechanical performance, particularly suitable for automation and industrial power connector applications.
This female crimp terminal supports wire sizes from 21 AWG (0.3mm²) to 20 AWG (0.5mm²), fabricated from copper alloy with tin plating to enhance corrosion resistance and ensure durability. The robust crimp termination delivers a strong mechanical bond, critical in environments with vibration or movement.
The contact is rated for a continuous current of 15 amperes and can withstand voltages up to 1kVac for one minute, making it apt for power transmission within electronic systems. Its operating temperature range from -30°C to +105°C allows suitability for a wide array of industrial and electronic environments.
Key attributes include a low initial contact resistance of 1 milliohm and an overall resistance not exceeding 10 milliohms post-use, guaranteeing minimal power loss and reliable signal integrity. The snap-in fixing design allows easy insertion into connector cavities, streamlining assembly and maintenance.
Commonly deployed in automotive, industrial automation, and electronic manufacturing sectors, this crimp terminal facilitates wire-to-wire and wire-to-board connections with high reliability.
Current rating of 15 amps ensures efficient electrical conduction. Contact material is high-quality copper alloy with tin plating for corrosion resistance. Compatible with MULTILOCK 025 Connector Housing series. Operating temperature range from -30 to +105 degrees Celsius.
Termination by crimp ensures secure and reliable mechanical connection. Designed for female gender contacts in cable receptacles. Low level resistance of 1 milliohm maximum (initial) for minimal signal loss. Overall resistance maximum of 10 milliohms (final) after usage.
Explore our extensive range of power connectors and Crimp Terminals in the Electronics & Electricals category at EnvMart for reliable industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 15 amperes, ensuring efficient electrical conduction.
The operating temperature range for this model is from -30°C to +105°C, making it suitable for various industrial and electronic environments.
It supports wire sizes from 21 AWG (0.3 mm²) to 20 AWG (0.5 mm²).
The contact material is a high-quality copper alloy with tin plating, which enhances corrosion resistance.
Termination is achieved by crimping, which ensures a secure and reliable mechanical connection.
The low level resistance is a maximum of 1 milliohm initially, which helps minimize signal loss.
The overall resistance does not exceed 10 milliohms after usage, ensuring reliable signal integrity.
This terminal is specifically designed for use with MULTILOCK 025 Connector Housing series.
It is commonly deployed in automotive, industrial automation, and electronic manufacturing sectors for wire-to-wire and wire-to-board connections.
The snap-in fixing design allows for easy insertion into connector cavities, streamlining assembly and maintenance.
The country of origin for this crimp terminal is India.
This crimp terminal can withstand voltages up to 1 kVac for one minute, making it suitable for power transmission.
