Cynergy3 High Voltage PCB Reed Relay, 24V DC Coil, SPST, 50W Coil Power, 10000V DC Max, 2A Max, 350Ω Coil Resistance

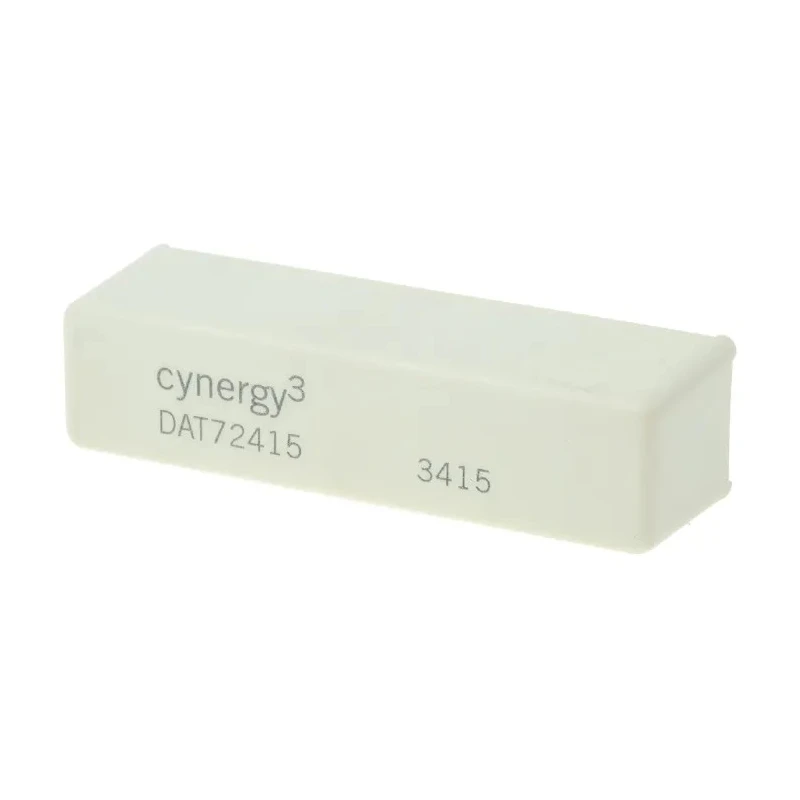

Cynergy3 DAT72415 is a high voltage PCB mount reed relay engineered for industrial and laboratory applications requiring compact form factor and dependable switching performance.

This model features a 24V DC coil with 50W coil power and 350Ω coil resistance, enabling precise electromagnetic control of the reed switch. The contact configuration is SPST with tungsten contacts designed for heat resistance and soldering durability. It is suitable for use in high voltage circuits with maximum switching voltage rated at 10,000V AC/DC and maximum switching current of 2A.

The relay's compact dimensions of 60mm length, 18.5mm height, and 15.8mm width allow installation on printed circuit boards where space is critical. Fast switching time of 3ms including bounce enables responsive control in automation and signal conditioning systems.

Designed for demanding environmental conditions, it operates reliably over a wide temperature range from -20°C to 70°C. The isolation voltage between coil and contacts reaches 15kV AC/DC, making it suitable for test equipment, power supplies, cardiac defibrillators, Triac triggers, and other industrial high voltage devices.

With a dry switching life exceeding one billion cycles and UL approval, this relay offers long-lasting operational reliability. The through hole terminal design simplifies secure PCB mounting. It is non-latching to support switching applications where fail-safe default states are required.

Compact PCB mount with 60mm x 15.8mm x 18.5mm size. 24V DC coil power rated at 50W and coil resistance 350Ω. SPST contact configuration with tungsten contacts for durability. High isolation voltage of 15kV AC/DC supports high voltage applications.

Operating temperature range from -20°C to 70°C for harsh environment suitability. Maximum switching voltage 10,000V DC and current 2A. Fast operating time of 3 milliseconds ensuring responsive operation. One billion dry switching cycles ensuring extended service life.

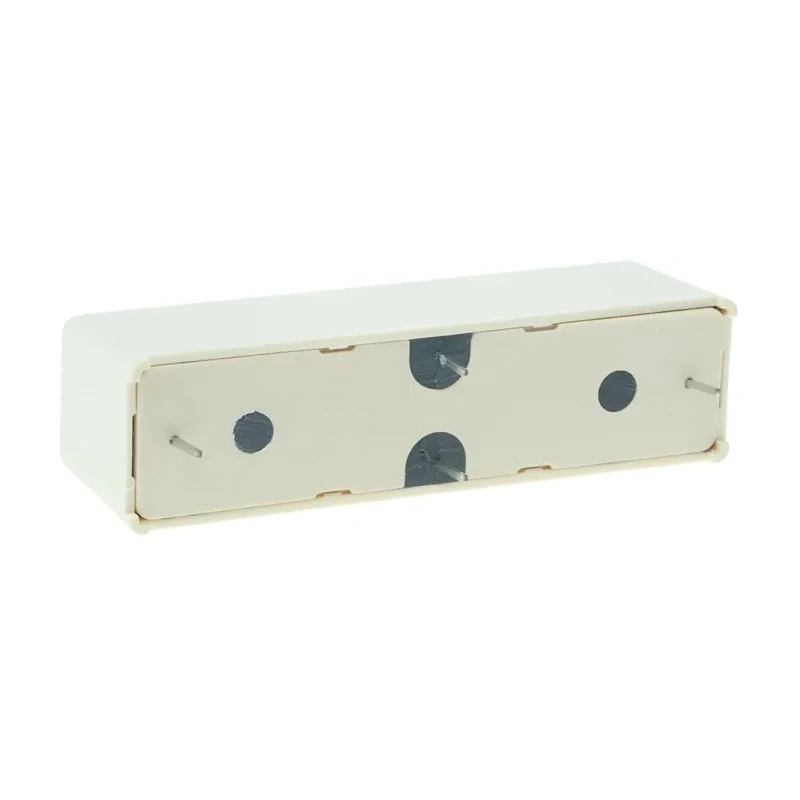

Through hole terminal type for secure and easy PCB installation. Non-latching design with UL certification for reliability.

This Cynergy3 reed relay is ideal for use in industrial automation, electrical test equipment, signal conditioning, medical devices, and power supply control. It delivers high performance in a compact and reliable package suited for rigorous operational demands.
