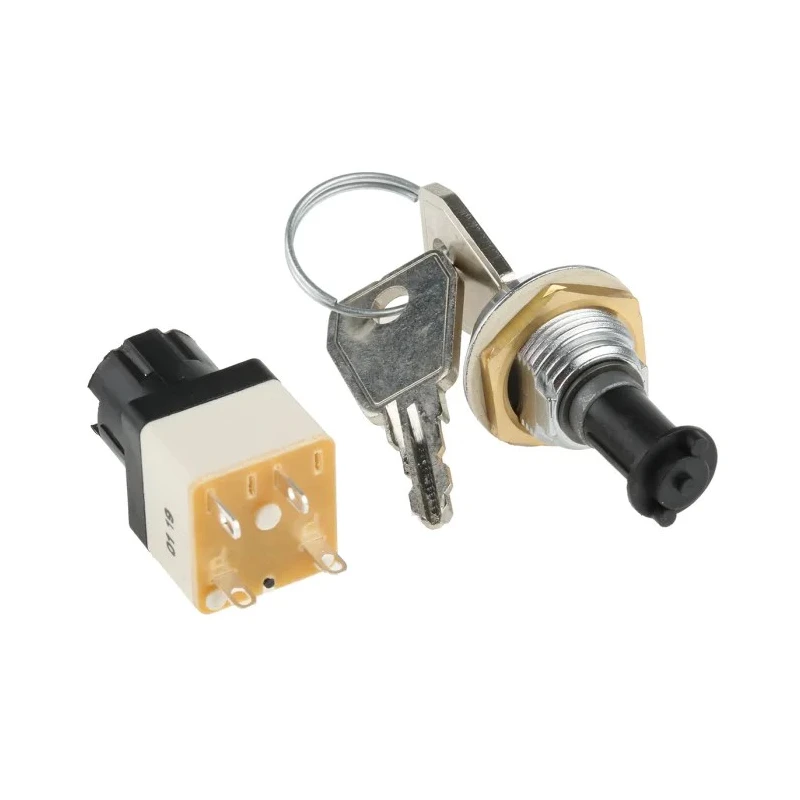

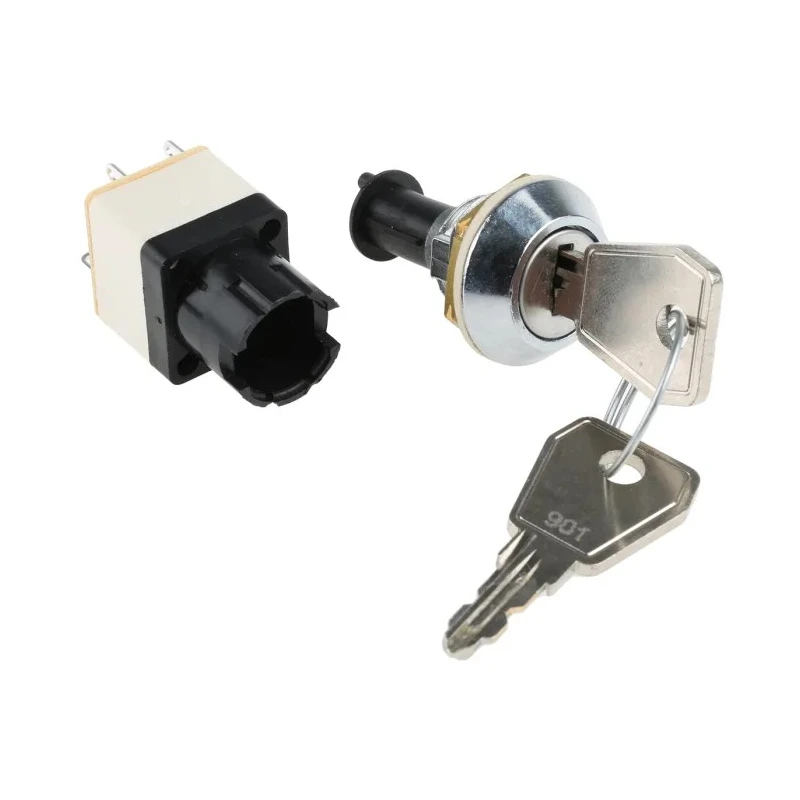

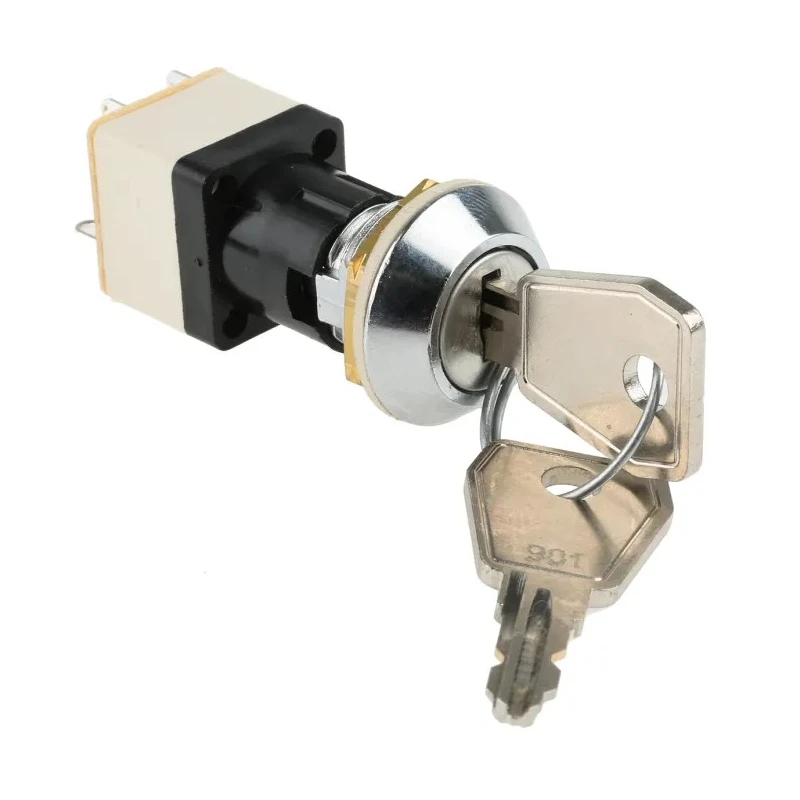

Lorlin IP67 Sealed Key Switch DPST 4A 2-Way 16mm

Lorlin WRLM-5-S-S is a 16mm sealed key switch from the WRLM series, designed to provide secure and reliable electrical switching with DPST contact configuration and 4A contact current capability. Rated with an IP67 ingress protection, this switch is suitable for harsh industrial environments requiring dust-tight and water-resistant components.

The key switch features a fibreglass reinforced polyamide housing offering rugged mechanical protection and a tapered bezel shape for aesthetic panel integration. It employs silver cadmium oxide contacts rated for 240V AC ensuring reliable electrical performance.

Its latching switch operation combined with key trapping secures operation, preventing unauthorized switching. The switch mechanism offers a 90° lock movement using a flat key which can be inserted in either orientation. Standard solder terminals enable hassle-free electrical connections.

With a mechanical life of 15000 operations and operational temperature range between -25°C and 85°C, the WRLM-5-S-S key switch offers longevity and resilience demanded by industrial, electrical automation, manufacturing, HVAC, and laboratory applications.

Panel mounting is facilitated by two-part construction allowing the lock to be inserted from the front and the switch snapped on from the rear accommodating panel thicknesses up to 4.5mm. This sealed Key Switch module is approved to EN61058 standards by DEMKO ensuring compliance with relevant electrical safety norms.

The package includes 2 flat keys for ease of operation and security. Its versatile design suits control panels, security systems, electrical cabinets and other applications requiring controlled switching functionality under demanding conditions.

The switch supports two positions with a 90° key index angle providing precise control. Constructed with fibreglass reinforced polyamide housing ensuring durability and IP67 rating for water and dust resistance. Features silver cadmium oxide contact material rated for 240V AC and 4A current capacity.

Includes a latching switch operation with key trapping capability for secure control. Equipped with solder type terminals and a tapered bezel shape facilitating easy panel mounting. Mechanical life expectancy of 15000 operations supports long-term use.

Operates reliably in temperatures ranging from -25°C to 85°C. Comes with two flat keys that can be inserted either way up for convenient use. Explore more from Lorlin and other trusted brands for your electrical automation and control needs at EnvMart.
