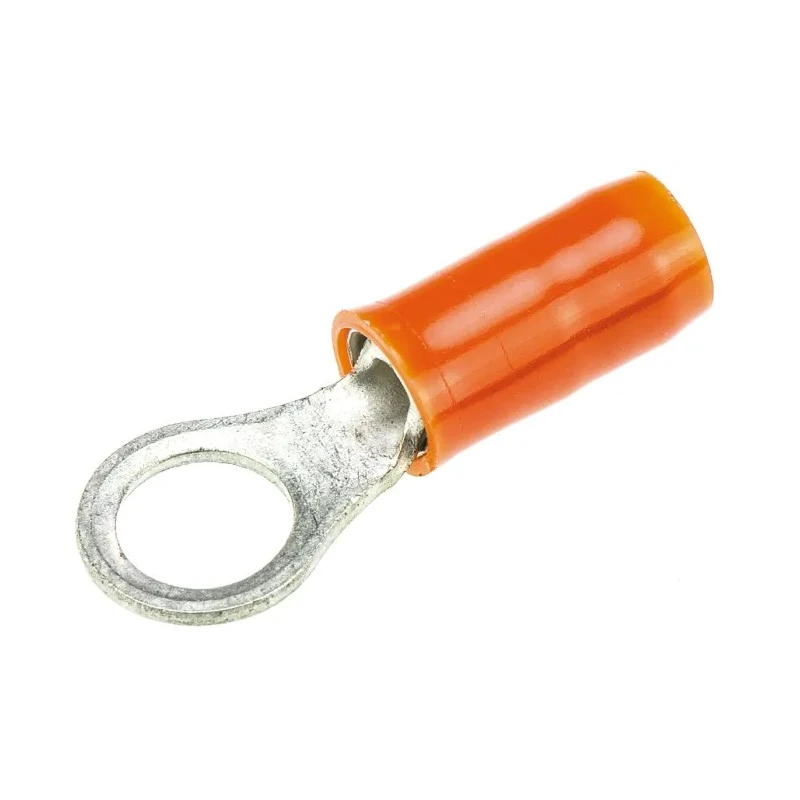

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 18 AWG 16 AWG Wire Size Orange Red 152881
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange, Red |
| THICKNESS | 0.79mm |
| Model | 152881 |
| Insulation | Insulated |
| Overall Length | 20.45mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5597Brand: TE ConnectivityManufacturers Part No.: 152881Distrelec Article No.: 304-47-151 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.8mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper body for superior electrical performance.
- Equipped with tin plating to enhance contact reliability and corrosion resistance.
- Insulated with durable nylon sleeve, providing excellent wire insulation support.
- Designed with a funnelled wire entry for fast and secure wire insertion.
- Serrations inside barrel ensure maximum contact and tensile strength after crimping.
- Compatible with various wiring applications including instruments, lighting, and power supplies.
- Rated for maximum operating temperature of 105°C for dependable performance under heat stress.
- Colour coding aids easy wire size and tooling identification during installation.
Product Description
TE Connectivity 152881 PIDG Insulated Ring Terminal M5 Stud Size, intended for use with 18 AWG to 16 AWG wire sizes, features a high conductivity copper body and tin plating that ensure electrical reliability. This ring terminal is insulated with a robust nylon sleeve in orange and red colors for easy identification and enhanced electrical insulation.
The Pre-Insulated Diamond Grip (PIDG) design enables uniform crimp quality with improved wire insulation support provided by the copper sleeve that prevents wire fraying. The funnelled wire entry mechanism simplifies and speeds up wire insertion, making it well-suited for high-speed production environments.
These terminals exhibit serrations inside the wire barrel to deliver maximum contact and tensile strength after crimping. Designed for industrial, electrical, HVAC, manufacturing, transportation, and aerospace applications, this ring terminal is a versatile and reliable component for wiring assemblies requiring robust connection and insulation.
The product is optimized for demanding circuit environments, maintaining safety and durability up to a maximum operating temperature of 105°C, and meets various industrial wiring standards.
Constructed with high conductivity copper body for superior electrical performance. Equipped with tin plating to enhance contact reliability and corrosion resistance. Insulated with durable nylon sleeve, providing excellent wire insulation support.
Designed with a funnelled wire entry for fast and secure wire insertion. Serrations inside barrel ensure maximum contact and tensile strength after crimping. Compatible with various wiring applications including instruments, lighting, and power supplies.
Rated for maximum operating temperature of 105°C for dependable performance under heat stress. Colour coding aids easy wire size and tooling identification during installation.
This TE Connectivity PIDG ring terminal series offers reliable electrical and mechanical connection solutions for professional industrial and commercial wiring installations. It is ideal for use in panel boxes, motors, transportation systems, lifting equipment, appliances, and aerospace sectors.
Explore the category to find a comprehensive range of Ring Terminals and related power connectors for your application at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 105°C, ensuring dependable performance under heat stress.
This ring terminal is compatible with wire sizes ranging from 18 AWG to 16 AWG, with a minimum wire size of 0.8 mm² and a maximum wire size of 1.65 mm².
The terminal features a high conductivity copper body with tin plating for enhanced contact reliability and corrosion resistance, and it is insulated with a durable nylon sleeve.
The stud size for this ring terminal is M5, suitable for various industrial applications.
The overall length of this ring terminal is 20.45 mm, with an outer ring diameter of 7.14 mm and an inner ring diameter of 5 mm.
The funnelled wire entry design simplifies and speeds up wire insertion, making it particularly useful in high-speed production environments.
The serrations inside the barrel ensure maximum contact and tensile strength after crimping, enhancing the reliability of the connection.
This ring terminal is suitable for various applications, including instruments, lighting, power supplies, industrial, electrical, HVAC, manufacturing, transportation, and aerospace sectors.
This model features orange and red colors for easy identification of wire size and tooling during installation.
The insulation material used in this terminal is nylon, providing excellent wire insulation support.
The thickness of this ring terminal is 0.79 mm, contributing to its structural integrity.
This ring terminal is manufactured in India, ensuring compliance with various industrial wiring standards.
