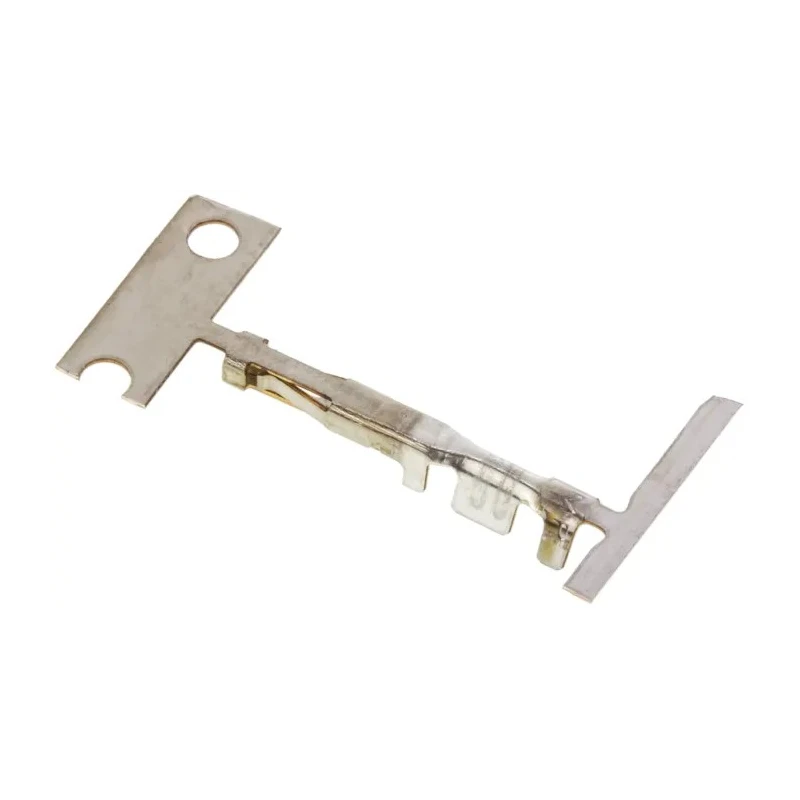

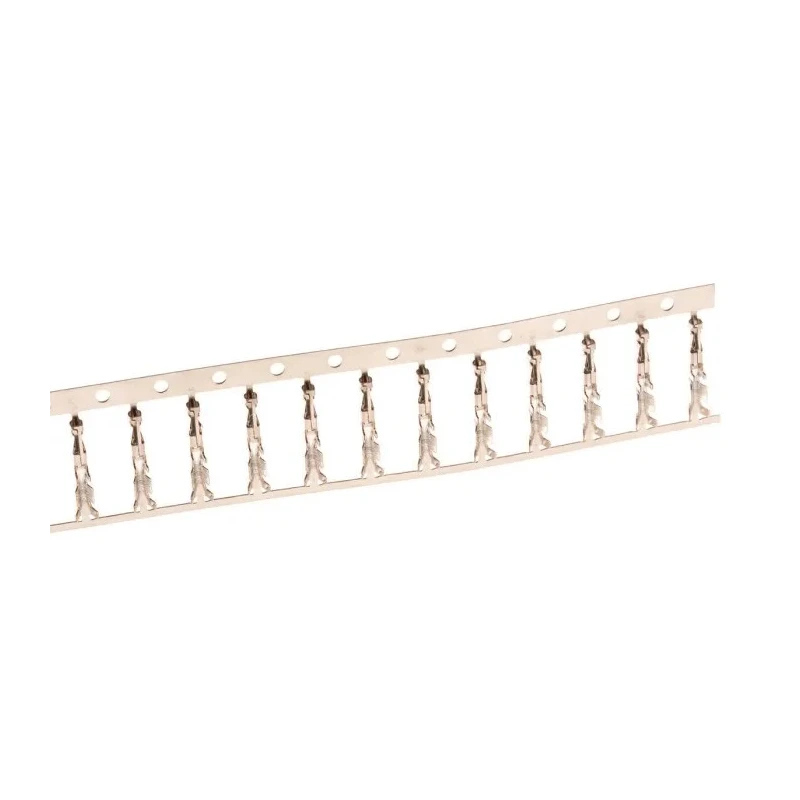

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min, 20 AWG Max, 5A Current 1-794606-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0558Brand: TE ConnectivityManufacturers Part No.: 1-794606-1 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Dual beam contact design ensures electrical reliability.
- Locking lance mechanism secures contact retention in connector housing.
- Gold plating on phosphor bronze material enhances conductivity and corrosion resistance.
- Supports wire size range from 0.2 mm² to 0.5 mm².
- Operates reliably between -40°C and 105°C.
- Termination type is crimp for secure wire connection.
- Suitable for use with Micro MATE-N-LOK connector housings.
- Able to handle maximum contact resistance of 20 milliohms.
Product Description
TE Connectivity 1-794606-1 Micro MATE-N-LOK Series Female Crimp Terminal is designed to provide a reliable wire-to-wire or wire-to-board connection solution within electronics assemblies. It supports wire sizes from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum and is rated for a current of 5 amperes.
The crimp terminal features a dual beam contact design that ensures excellent electrical conductivity and connection reliability. The locking lance mechanism securely retains the contact within the Micro MATE-N-LOK connector housing, preventing unintended disconnections during use.
Manufactured from phosphor bronze and plated with gold, this terminal provides superior corrosion resistance and electrical performance. It operates within a temperature range of -40°C to 105°C, ensuring durability under varying environmental conditions.
These Crimp Terminals are compatible with Micro MATE-N-LOK 3 mm connector systems widely used in industrial, consumer electronics, and LED lighting applications. The 3 mm centreline connector system offers low profile options and secure snap-in pin and receptacle contacts.
The gold plating and optimized contact design make this product ideal for high reliability applications requiring consistent low contact resistance and secure wire connections. The Micro MATE-N-LOK system simplifies assembly and maintenance in electronic devices requiring robust cable connections.
Dual beam contact design ensures electrical reliability. Locking lance for secure retention in housing. Gold plated phosphor bronze contact material. Supports wire size range from 0.2 mm² to 0.5 mm² (24 to 20 AWG). Rated current is 5 A with max contact resistance of 20 mΩ.
Operates from -40°C to 105°C ambient temperature. Termination type: crimp connection. Compatible with Micro MATE-N-LOK connector housings.
This product is suitable for use in electronic components manufacturing, industrial equipment, telecommunications, LED lighting systems, and other applications requiring durable and reliable crimp contacts.
Explore EnvMart's range of connector solutions for industrial, laboratory, manufacturing, and electrical engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 5 amperes.
It supports wire sizes from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum.
This terminal operates reliably between -40°C and 105°C.
The contact material is phosphor bronze, which is gold plated for enhanced conductivity and corrosion resistance.
It features a locking lance mechanism that secures the contact retention in the connector housing, preventing unintended disconnections.
Yes, it is compatible with Micro MATE-N-LOK connector housings.
The maximum contact resistance is 20 milliohms.
This model uses a crimp termination type for secure wire connections.
It is suitable for use in electronic components manufacturing, industrial equipment, telecommunications, and LED lighting systems.
The dual beam contact design ensures excellent electrical conductivity and connection reliability.
The country of origin for this terminal is India.
The physical dimensions are not specified in the provided data, so please refer to the manufacturer's specifications for detailed measurements.
