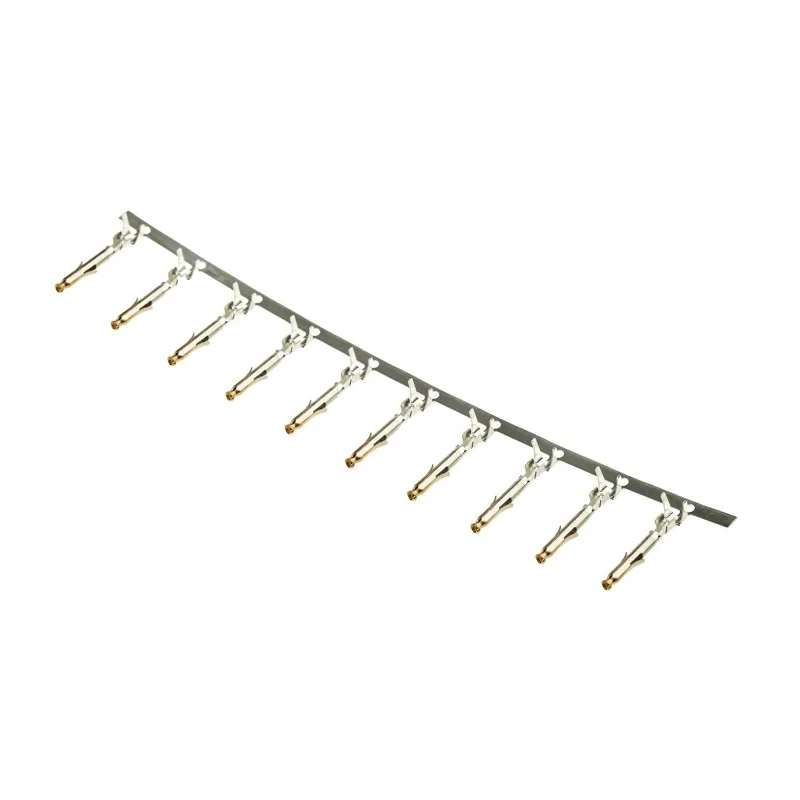

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max, Gold Plated 1-770904-0

TE Connectivity 1-770904-0 Female Crimp Terminal is a precision-engineered electrical connector designed for use with Mini-Universal MATE-N-LOK Connector Housings. This terminal enables high quality, secure crimp connections for wires sized between 22 AWG (0.3 mm²) and 18 AWG (0.9 mm²), making it suitable for a variety of electronic and electrical applications.

The contact material is brass plated with gold to optimize conductivity and minimize corrosion, assuring stable, low resistance connections with a maximum contact resistance of 20 milliohms. It supports a current rating of 11.2 amps, making it appropriate for moderate current electrical circuits in industrial, electronic manufacturing, and automotive sectors.

Designed to withstand operational temperatures from -55°C to 105°C, this crimp terminal performs reliably under harsh environmental conditions, ensuring longevity and safety in use. The crimp termination type secures wires mechanically and electrically, enabling efficient assembly and maintenance.

This female gender terminal is engineered specifically for the Mini-Universal MATE-N-LOK series, widely used in PCB connectors and wire housing systems. It facilitates dependable power and signal transmission, ideal for laboratory instrumentation, manufacturing equipment, and electrical distribution panels.

This Crimp Terminal supports a current rating of 11.2 amps for reliable electrical performance. It features gold-plated brass contacts ensuring low contact resistance and corrosion resistance. Suitable for wire sizes from 0.3 mm² (22 AWG) up to 0.9 mm² (18 AWG) for versatile wiring options.

Maximum contact resistance is 20 milliohms, ensuring efficient conductivity. Operates within a temperature range from -55°C minimum to 105°C maximum for durability under varying conditions. Termination is by crimp method providing secure mechanical and electrical connections.

This terminal is specifically designed for female gender mating with Mini-Universal MATE-N-LOK systems. The compact terminal is ideal for PCB connectors and wire housing applications in electronics and power connector systems.

TE Connectivity is a global leader in electronic components, and this Mini-Universal MATE-N-LOK Series terminal exemplifies their commitment to quality and performance. Explore more power connector solutions and accessories in EnvMart’s comprehensive industrial components catalog.
