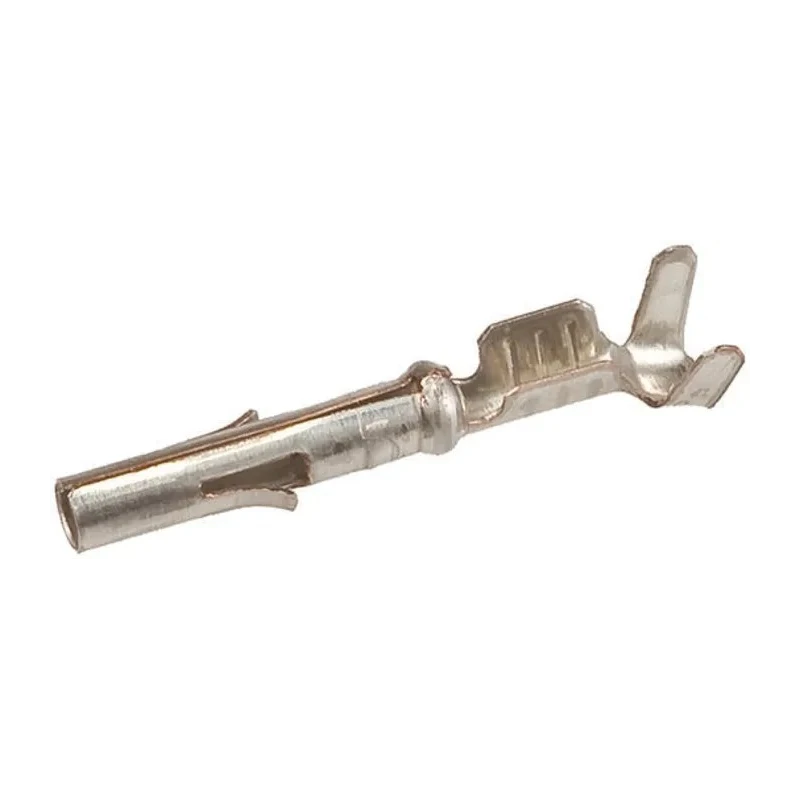

TE Connectivity Miniature Rectangular Series Female Crimp Terminal 9A Current 26-18 AWG 641294-1

TE Connectivity 641294-1 Miniature Rectangular Series Female Crimp Terminal is engineered for reliable, high-quality electrical connections within Miniature Rectangular connector housings. Rated for a current of 9A, it effectively supports wire sizes ranging from 26 AWG (minimum 0.1 mm²) to 18 AWG (maximum 0.9 mm²), making it well-suited for a wide array of electronic applications.

The crimp terminal is constructed from phosphor bronze material, providing excellent electrical conductivity and mechanical strength. Tin plating is applied to the contact surface to improve corrosion resistance and enhance long-term durability.

Designed for operation in extreme environments, the terminal functions efficiently across a temperature range from -55°C minimum to 85°C maximum, ensuring integrity in both cold and warm conditions. Its maximum contact resistance of 5 milliohms ensures minimal signal degradation, maintaining high-performance electrical connections.

Measuring 16.76 mm in length, this compact crimp terminal can be easily integrated into miniature rectangular connector assemblies, streamlining wiring tasks in industrial, electronics manufacturing, and assembly applications.

This terminal is specifically designed for Miniature Rectangular connector housings and ensures compatible integration. Phosphor bronze contact material offers strong electrical performance and durability. Tin plating on contacts prevents corrosion and ensures reliable signal transmission.

Supports wire sizes from 26 AWG to 18 AWG enhancing versatility. Wide operating temperature range (-55°C to 85°C) enables use in diverse environments. Low maximum contact resistance of 5 milliohms assures minimal electrical loss.

Crimp termination type provides a strong, secure connection. Compact 16.76 mm length allows for easy assembly in tight spaces. No specific certifications or standards are declared but suitable for general electrical assembly use.

This product is ideal for industrial, manufacturing, electronics assembly, and repair operations where reliable wire connections are essential. Using TE Connectivity's high-quality materials and proven design, it ensures consistent performance and longevity in demanding electrical environments.
