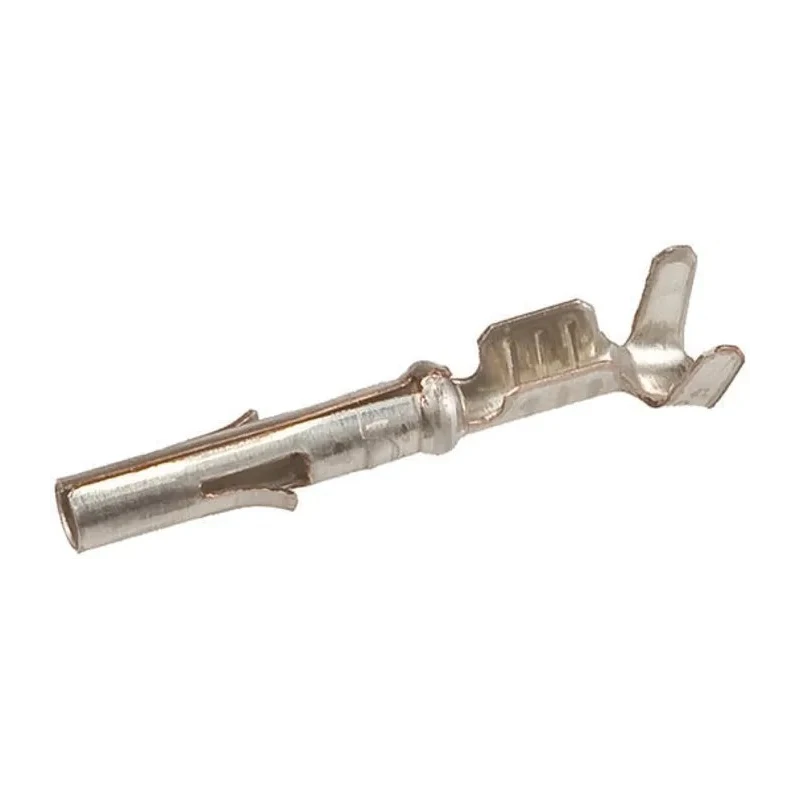

TE Connectivity Miniature Rectangular Series Female Crimp Terminal, 26 AWG Min Crimp, 18 AWG Max 641294-1

TE Connectivity 641294-1 is a Miniature Rectangular Series Female Crimp Terminal engineered for reliable and efficient electrical connection in compact connector housings. It supports wire sizes ranging from 26 AWG (0.1 mm²) up to 18 AWG (0.9 mm²) with a current rating of 9 amps, suitable for diverse electronic component and power connector applications.

The contact material is phosphor bronze, providing excellent mechanical strength and conductivity. Tin plating on the contact surface ensures corrosion resistance and consistent electrical performance over prolonged usage, vital for high-reliability assemblies.

This crimp terminal is designed specifically for the Miniature Rectangular Connector Housing series, enabling secure wire termination by effective crimping. The crimp design guarantees stable mechanical and electrical engagement, reducing the risk of connection failures.

The terminal offers a compact 16.76 mm length, permitting integration into densely packed electrical assemblies and PCB connectors. It withstands harsh environmental conditions with an operating temperature range from -55°C to 85°C, making it suitable for industrial, commercial, and HVAC applications.

The maximum contact resistance is limited to 5 milliohms, ensuring excellent signal integrity and minimal energy loss within the connector system. These terminals meet standard quality expectations without specific certifications but comply with RoHS directives on hazardous substances.

Typical use cases include electrical equipment manufacturing, industrial automation, laboratory instrumentation, telecommunications, and power distribution systems where dependable, maintenance-free connectors are required. The terminals are supplied in reels to facilitate automated assembly processes, improving production efficiency and consistency.

Constructed with phosphor bronze contact material for durability and excellent conductivity. Tin plated contacts ensure reliable connection and corrosion resistance. Designed for use with Miniature Rectangular Connector Housings.

Termination by crimp method for secure and consistent wire attachment. Operating temperature range from -55°C to 85°C. Compact length of 16.76 mm for integration in tight connector assemblies. Maximum contact resistance of 5 milliohms for signal integrity.

Rated for 9 A current capacity compliant connectors. Suitable for use in electronics manufacturing automation. RoHS compliant product for environmentally responsible applications. Explore the Crimp Terminal category on EnvMart for a variety of application-specific connectors and components from trusted industry brands including TE Connectivity.
