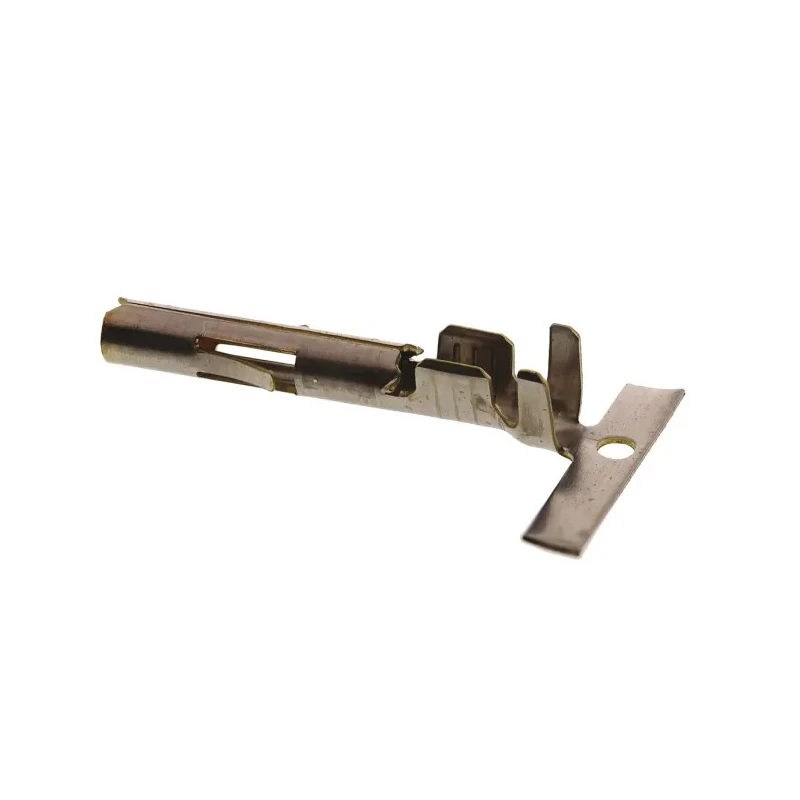

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal 19A Current, 20 AWG Min, 14 AWG Max 350536-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 19A |
| Temperature range | -55 to +105 °C |
| Length | 22.23mm |
| Model | 350536-7 |
| Gender | Female |
| Contact Material | Brass |
| Series | Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Insulation resistance | 1000 MΩ |
| Minimum Operating Temperature | -55°C |
| For Use With | Universal MATE-N-LOK Connector Housing |
| Contact Resistance | 3.5 mΩ |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0542PBrand: TE ConnectivityManufacturers Part No.: 350536-7 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 4mΩ |
| Mating Cycles | 50 |
| PCB Headers | 12 |
| Insulation Material UL94V-2 | Natural polyamide |
| Insulation Material UL94V-0 | White opaque Nylon 6.6 |
Key Features
- Designed for Universal MATE-N-LOK Connector Housing applications.
- Features gold-plated brass contacts ensuring reliable conductivity.
- Operates efficiently within temperature range of -55°C to 105°C.
- Termination is by crimp method for secure wire connection.
- Rated for 600 Vac/dc voltage with insulation materials conforming to UL94V-2 and UL94V-0 standards.
- Durable design supports 50 mating cycles for extended use.
- Applications include consumer electronics, commercial HVAC, power supplies, portable devices, and lighting systems.
Product Description
TE Connectivity 350536-7 Universal MATE-N-LOK Series Female Crimp Terminal is engineered for reliable electrical connections in a variety of industrial and commercial applications. Rated at 19A current, this female crimp terminal supports wire sizes ranging from 20 AWG minimum to 14 AWG maximum, making it versatile for multiple wiring standards.
This Crimp Terminal features gold-plated brass contacts, which provide excellent conductivity and corrosion resistance. Operating within a temperature range of -55°C to 105°C, it is suitable for harsh environmental conditions. The termination type is crimp, ensuring a robust mechanical and electrical connection to wires.
The terminal length is 22.23 mm, enabling compact and precise integration in Universal MATE-N-LOK connector housings. Rated for 600 Vac/dc voltage, it meets rigorous insulation and contact resistance requirements with insulation materials including natural polyamide (UL94V-2) and white opaque Nylon 6.6 (UL94V-0), offering high insulation resistance of 1000 MΩ and low contact resistance of 3.5 mΩ.
Designed to withstand 50 mating cycles, this terminal ensures long-term durability in demanding use cases. Its applications span across consumer electronics, commercial HVAC systems, power supplies, portable devices, and lighting, making it an essential component in electronic assemblies and electrical systems.
TE Connectivity's Universal MATE-N-LOK range is renowned for high-performance sealed connectors engineered for industrial and commercial reliability. The product enhances operational efficiency where secure and reliable wire connections are critical.
Designed for Universal MATE-N-LOK Connector Housing applications. Features gold-plated brass contacts ensuring reliable conductivity. Operates efficiently within temperature range of -55°C to 105°C. Termination is by crimp method for secure wire connection.
Length of the terminal is 22.23 mm for compact installation. Rated for 600 Vac/dc voltage with insulation materials conforming to UL94V-2 and UL94V-0 standards. Durable design supports 50 mating cycles for extended use. Applications include consumer electronics, commercial HVAC, power supplies, portable devices, and lighting systems.
Explore the comprehensive TE Connectivity connector solutions in the Power Connectors category available at EnvMart for advanced connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 19A.
This terminal supports wire sizes from 20 AWG minimum to 14 AWG maximum.
It operates efficiently within a temperature range of -55°C to 105°C.
The length of the terminal is 22.23 mm.
It uses a crimp termination method for secure wire connection.
The contacts are made of gold-plated brass, ensuring reliable conductivity and corrosion resistance.
It is designed to withstand 50 mating cycles for extended use.
It conforms to UL94V-2 with natural polyamide and UL94V-0 with white opaque Nylon 6.6.
It has an insulation resistance of 1000 MΩ.
The contact resistance is 3.5 mΩ, ensuring efficient electrical performance.
It is suitable for applications in consumer electronics, commercial HVAC, power supplies, portable devices, and lighting systems.
Yes, it operates effectively within a wide temperature range, making it suitable for harsh environmental conditions.
