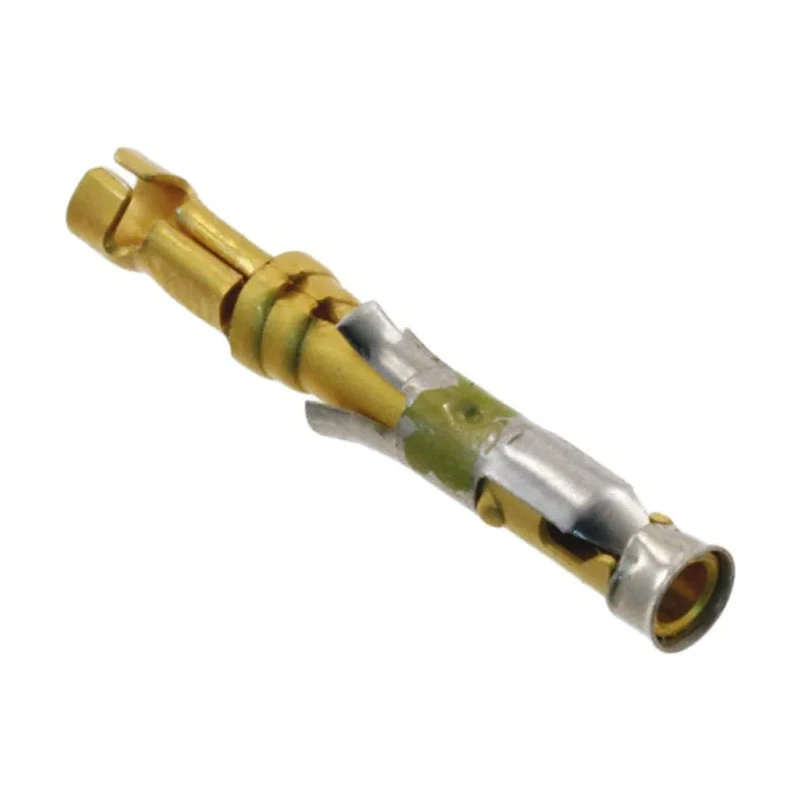

TE Connectivity Type III Series Female Crimp Terminal 13A, 26-20 AWG, Gold Plated Brass Contact 66183-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 13.46mm |
| Model | 66183-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| For Use With | CPC and M Series Connector Housings |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-0299PBrand: TE ConnectivityManufacturers Part No.: 66183-1 |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Supports current rating of 13A suitable for power applications.
- Designed for wire sizes from 26 AWG (minimum) to 20 AWG (maximum).
- Gold plated brass contact material ensures corrosion resistance and optimal conductivity.
- Termination type is solder, providing durable and secure wire connections.
- Operates reliably within a temperature range of -55°C to 150°C.
- Compact length of 13.46 mm allows fitting in confined spaces.
- Compatible with CPC and M Series Connector Housings for versatile use.
- Contact plating and materials comply with industrial standards though no certifications are specified.
Product Description
TE Connectivity 66183-1 Type III Series Female Crimp Terminal is engineered to deliver dependable interconnections in electronic and electrical power assemblies. Rated for 13 amps current, it accommodates wire gauges from 26 AWG to 20 AWG, making it ideal for medium power applications in industrial, commercial, and laboratory environments.
This crimp terminal features gold plating over brass contacts to provide excellent corrosion resistance and enhanced electrical conductivity. The solder termination type ensures a robust mechanical and electrical connection suitable for demanding applications.
The terminal operates effectively over a broad temperature spectrum of -55°C to 150°C, supporting stable performance in varied thermal environments. With a precision length of 13.46 mm, it fits securely within Compact Plug Connector (CPC) and M Series connector housings, frequently used in power connectors and PCB wiring applications.
Although there are no specific industry standards or approvals listed, the quality and material choices align with typical industrial grade electrical connector components. Supports current rating of 13A suitable for power applications.
Designed for wire sizes from 26 AWG to 20 AWG. Gold plated brass contact material ensures corrosion resistance and optimal conductivity. Termination type is solder for durable connections. Operates within temperature range of -55°C to 150°C.
Compact length of 13.46 mm for fitting in confined spaces. Compatible with CPC and M Series connector housings. No specific certifications or standards approvals listed.
This Crimp Terminal finds usage in varied industrial sectors including electronics manufacturing, power supply wiring, HVAC controls, communications equipment, and automotive electrical harness assemblies. Its reliable electrical and mechanical properties ensure enhanced system longevity and performance.
Explore more TE Connectivity solutions for power connectors and PCB wiring components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 13A, making it suitable for power applications.
It is designed for wire sizes ranging from 26 AWG (minimum) to 20 AWG (maximum).
The termination type is solder, providing a durable and secure connection for the wires.
It operates reliably within a temperature range of -55°C to 150°C.
The contact material is brass, and it features gold plating for enhanced corrosion resistance and conductivity.
The compact length of this terminal is 13.46 mm, allowing it to fit in confined spaces.
It is compatible with CPC and M Series connector housings, providing versatile application options.
The model number is 66183-1, which identifies this specific Type III Series Female Crimp Terminal.
This terminal can be used in various sectors including electronics manufacturing, power supply wiring, HVAC controls, communications equipment, and automotive electrical harness assemblies.
The gold plating over the brass contacts ensures excellent corrosion resistance and optimal electrical conductivity.
The minimum wire size is 0.1 mm² and the maximum wire size is 0.5 mm².
There are no specific industry standards or approvals listed for this terminal, but its materials comply with typical industrial grade standards.
