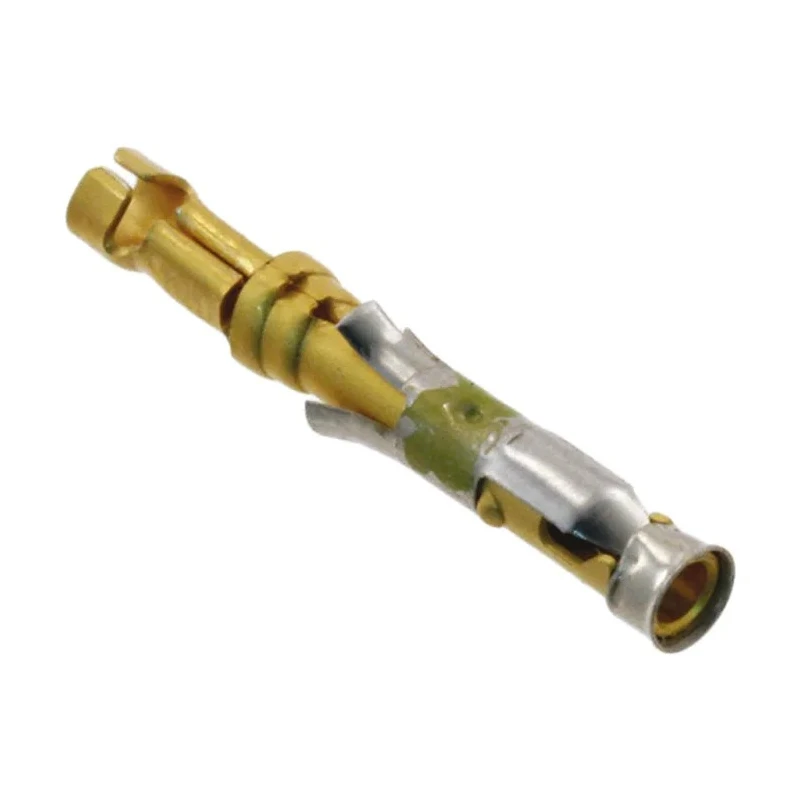

TE Connectivity Type III Series Female Crimp Terminal, Gold Plated Brass, 13A, 26 AWG Min to 20 AWG Max, Solder 66183-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 13.46mm |
| Model | 66183-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| For Use With | CPC and M Series Connector Housings |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Constructed of brass material with gold plating for enhanced conductivity and corrosion resistance.
- Rated for a current carrying capacity of 13A ensuring reliable electrical performance.
- Compatible with CPC and M Series connector housings for versatile use.
- Operates within a temperature range from -55°C to 150°C suitable for diverse applications.
- Termination is solder type ensuring secure electrical connections.
- Compliant with TE Connectivity’s Type III Series of crimp terminals.
- Compact length of 13.46mm suits detailed PCB and wire housing applications.
- Ideal for industrial, electronic, and power connector assemblies requiring durability.
Product Description
TE Connectivity 66183-1 Type III Series Female Crimp Terminal is a high-quality electrical connector component engineered for reliable solder termination on wires ranging from 26 AWG to 20 AWG. The terminal is made of brass and features gold plating to ensure low contact resistance and excellent durability in electrical and electronic applications.
This Crimp Terminal supports a continuous current rating of 13 amperes and is compatible with CPC and M Series connector housings, making it suitable for a variety of industrial assemblies, PCB connectors, and power distribution setups.
Operating effectively over a wide temperature range from -55°C to 150°C, the terminal is designed to withstand harsh environmental conditions often encountered in manufacturing, automotive, and electronic control systems.
The compact size with length of 13.46mm allows precise and space-saving termination in circuit boards or wire housing configurations. Its solder termination type ensures secure and stable mechanical and electrical connections.
Constructed of brass with gold plating for enhanced conductivity and corrosion resistance. Rated for 13A current carrying capacity suitable for power and signal transmission. Compatible with multiple connector housing series for flexible deployment.
Wide operating temperature range from -55°C to 150°C supports industrial environments. Solder termination provides robust and reliable wire connection. Compact dimension makes it ideal for tight PCB and connector assemblies.
Designed for use in electronic, power, and industrial connector applications.
This terminal is a part of the TE Connectivity Type III Series crimp contacts family, providing a trusted solution in electronic components and power connector assemblies. It is suited for applications in manufacturing, telecommunications, and electronic equipment requiring high reliability and precision connectors.
Explore more options and complementary accessories in the EnvMart Electronics & Electricals category to complete your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current carrying capacity of 13A, ensuring reliable electrical performance in various applications.
It is compatible with wire sizes ranging from 26 AWG to 20 AWG, making it versatile for different wiring needs.
The length of this crimp terminal is 13.46mm, suitable for detailed PCB and wire housing applications.
The terminal is constructed of brass with gold plating, which enhances conductivity and provides corrosion resistance.
It operates effectively within a temperature range from -55°C to 150°C, suitable for harsh environmental conditions.
This terminal is compatible with CPC and M Series connector housings, allowing for versatile use in various assemblies.
It features a solder termination type, ensuring secure and stable mechanical and electrical connections.
This terminal is designed for use in electronic, power, and industrial connector applications, including manufacturing and telecommunications.
The minimum wire size is 0.1mm² and the maximum wire size is 0.5mm², accommodating various wiring configurations.
This terminal is part of the TE Connectivity Type III Series of crimp contacts, providing a trusted solution for electrical connections.
The crimp terminal is manufactured in India, ensuring compliance with specified standards.
The contact material of this terminal is brass, which is known for its excellent conductivity in electrical applications.
