Schneider Electric Spacial CRN Series Steel Wall Box Enclosure, IP66, IK10, 800 mm x 800 mm x 200 mm NSYCRN88200
Specifications
| Country of Origin | India |
|---|---|
| Display | screen |
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYCRN88200 |
| IP Rating | IP66 |
| Series | Spacial CRN |
| External Width | 800mm |
| External Depth | 200mm |
| External Height | 800mm |
| Standards/Approvals | REACH, RoHS, IEC 62208, UL, cULus |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 707-9167Brand: Schneider ElectricManufacturers Part No.: NSYCRN88200 |
| Door Lock Type | Double Bar |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
Key Features
- Constructed from durable steel with epoxy-polyester powder finish for corrosion resistance.
- Provides protection with IP66 rating ensuring dust tightness and protection against powerful water jets.
- Features a double bar lock and removable cable gland plates for security and ease of wiring.
- Equipped with a plain front door reversible up to 120 degrees for flexible access.
- Supplied with one lock, door, body, and two cable gland plates at the bottom.
- Designed for panel mounting with no chassis or mounting plate supplied.
- Meets international standards including REACH, RoHS, IEC 62208, UL, and cULus certifications.
- Suitable for industrial automation, manufacturing, HVAC, and water treatment applications requiring secure housing.
Product Description

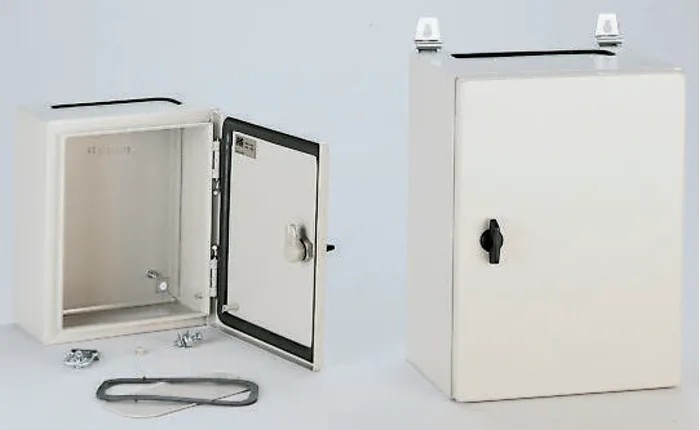

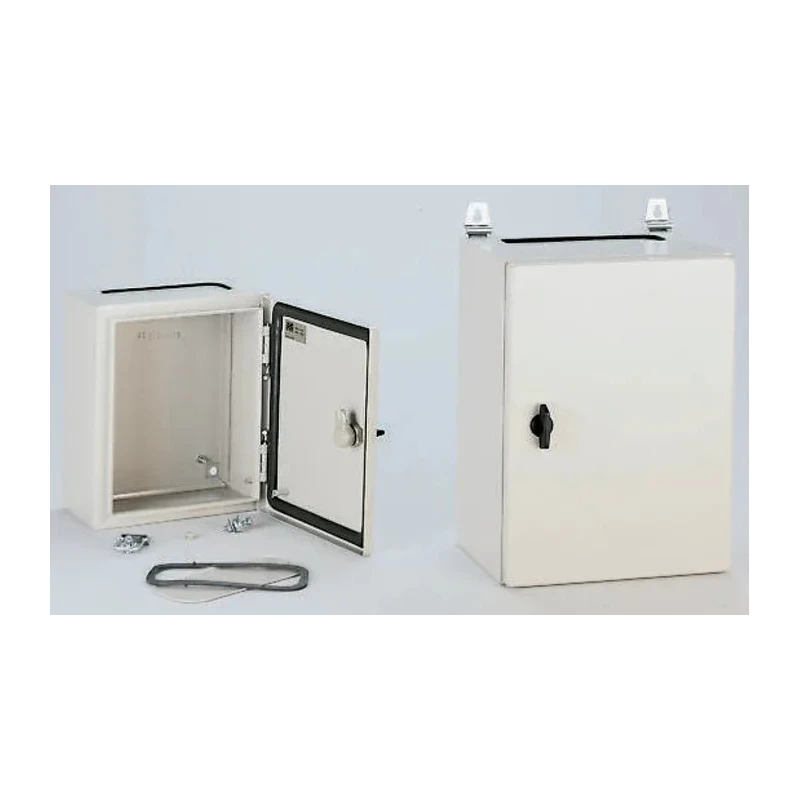

Schneider Electric NSYCRN88200 Spacial CRN Series Steel Wall Box Enclosure offers a compact, robust solution for wall mounting in harsh environments. This enclosure features a steel body with an epoxy-polyester powder coating in grey (RAL 7035), ensuring excellent resistance to corrosion and impact. The enclosure is rated IP66 for water and dust protection, compliant with IEC 60529 standards, and IK10 rated for impact resistance as per IEC 62262, making it suitable for both indoor and outdoor industrial applications.
The Wall Box includes a plain front door that is reversible with a 120-degree opening angle, secured with a double bar lock. The enclosure sides are constructed from a single folded steel section with a welded back creating a sealed protected area. It comes with a standard gland plate and two removable cable gland plates positioned at the bottom for efficient cable management. Mounting is designed via panel mounting type; no chassis or mounting plate is supplied with this model.
Schneider Electric's Spacial CRN enclosures comply with several key international standards such as REACH, RoHS, IEC 62208, UL, and cULus. The design incorporates smart hinges that facilitate easier door removal and reversal, welded studs for earthing, and a polyurethane seal that guarantees water tightness for extended periods.
Durable steel construction with corrosion-resistant epoxy-polyester powder finish. IP66 and IK10 protection ratings for harsh industrial and outdoor use. Reversible plain front door with 120° opening and double bar locking mechanism.
Removable cable gland plates included for flexible cable entry. Compact size of 800 mm height, 800 mm width, and 200 mm depth for versatile installation options. Complies with REACH, RoHS, IEC 62208, UL, and cULus standards.
Designed for panel mount; mounting plate not included. Ideal for industrial automation, manufacturing, construction, HVAC, and water treatment equipment protection. Provides reliable protection for electrical components in harsh environments.
This product includes one lock, one door, one enclosure body, and two cable gland plates supplied at the bottom. The Spacial CRN series is engineered to support demanding industrial automation and electrical enclosure needs, ensuring operational safety and equipment longevity.
Explore more electrical enclosures and related industrial automation solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has external dimensions of 800 mm in height, 800 mm in width, and 200 mm in depth.
The enclosure is rated IP66, ensuring it is dust-tight and protected against powerful water jets.
It is constructed from steel and features an epoxy-polyester powder finish for corrosion resistance.
This model has an IK10 rating, indicating it can withstand high levels of impact.
It is equipped with a double bar lock for enhanced security.
This model is designed for panel mounting and does not include a chassis or mounting plate.
It meets several international standards including REACH, RoHS, IEC 62208, UL, and cULus.
The plain front door is reversible and can open up to 120 degrees for flexible access.
The product includes one lock, one door, one enclosure body, and two removable cable gland plates at the bottom.
It is suitable for industrial automation, manufacturing, HVAC, and water treatment applications requiring secure housing.
The enclosure is finished in grey (RAL 7035).
It includes smart hinges for easier door removal and reversal, and welded studs for earthing.
